The following figures show step by step instructions how a new payload adapter has to
be attached to a payload.
The payload adapter is delivered in pieces.
For the single parts of the payload adapter see “The parts of the payload adapter” on
page 208.
4. Remove the front plate from the payload rod.
5. Remove the back plate from the payload rod.

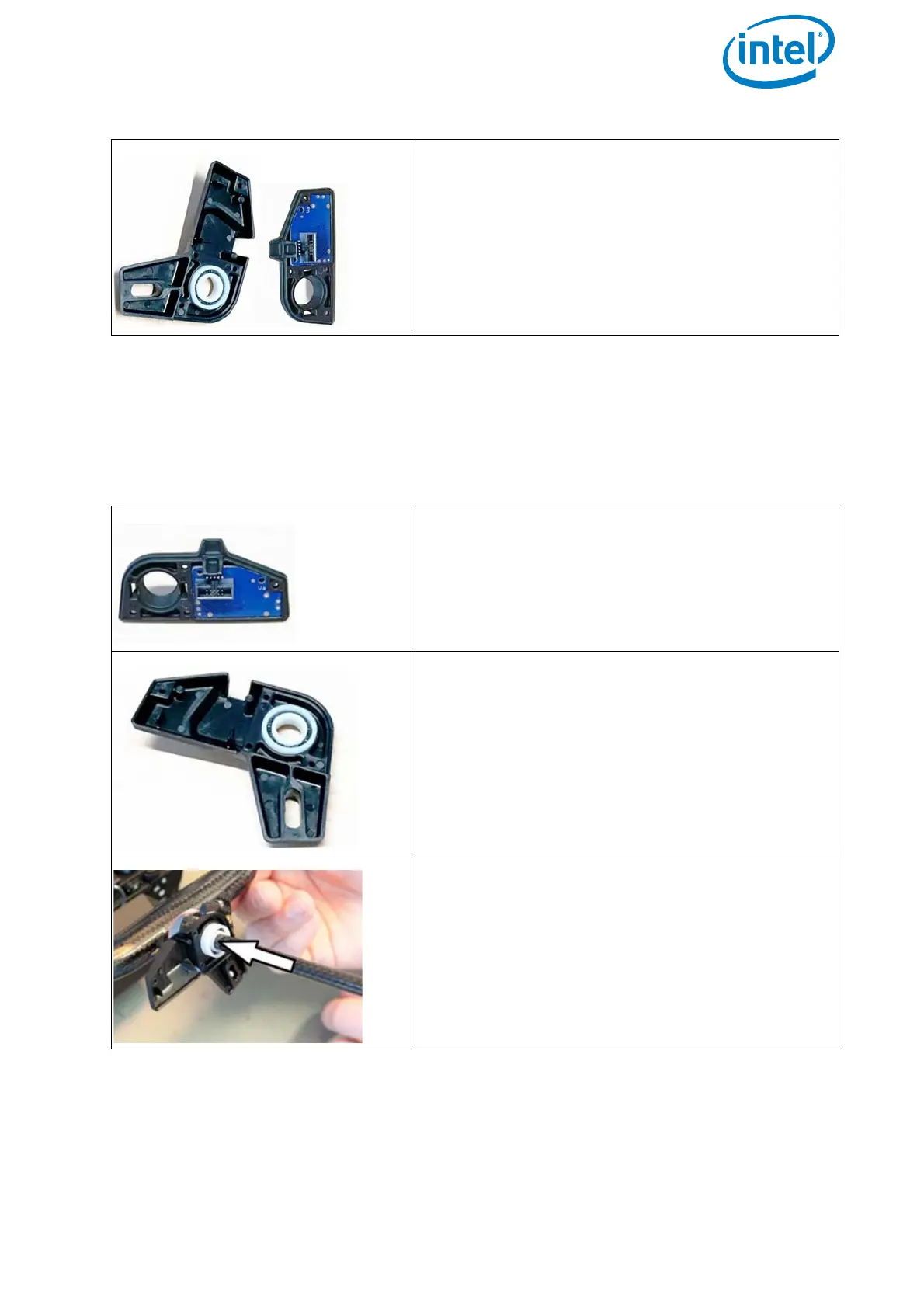

Figure 6.8: Attaching a new payload adapter
1. Attach the board to the back plate.
2. Attach the ball bearing to the front plate.
3. Slide the front plate assembly onto the rod of
the payload.
Figure 6.7: Removing a payload adapter from a payload (continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
