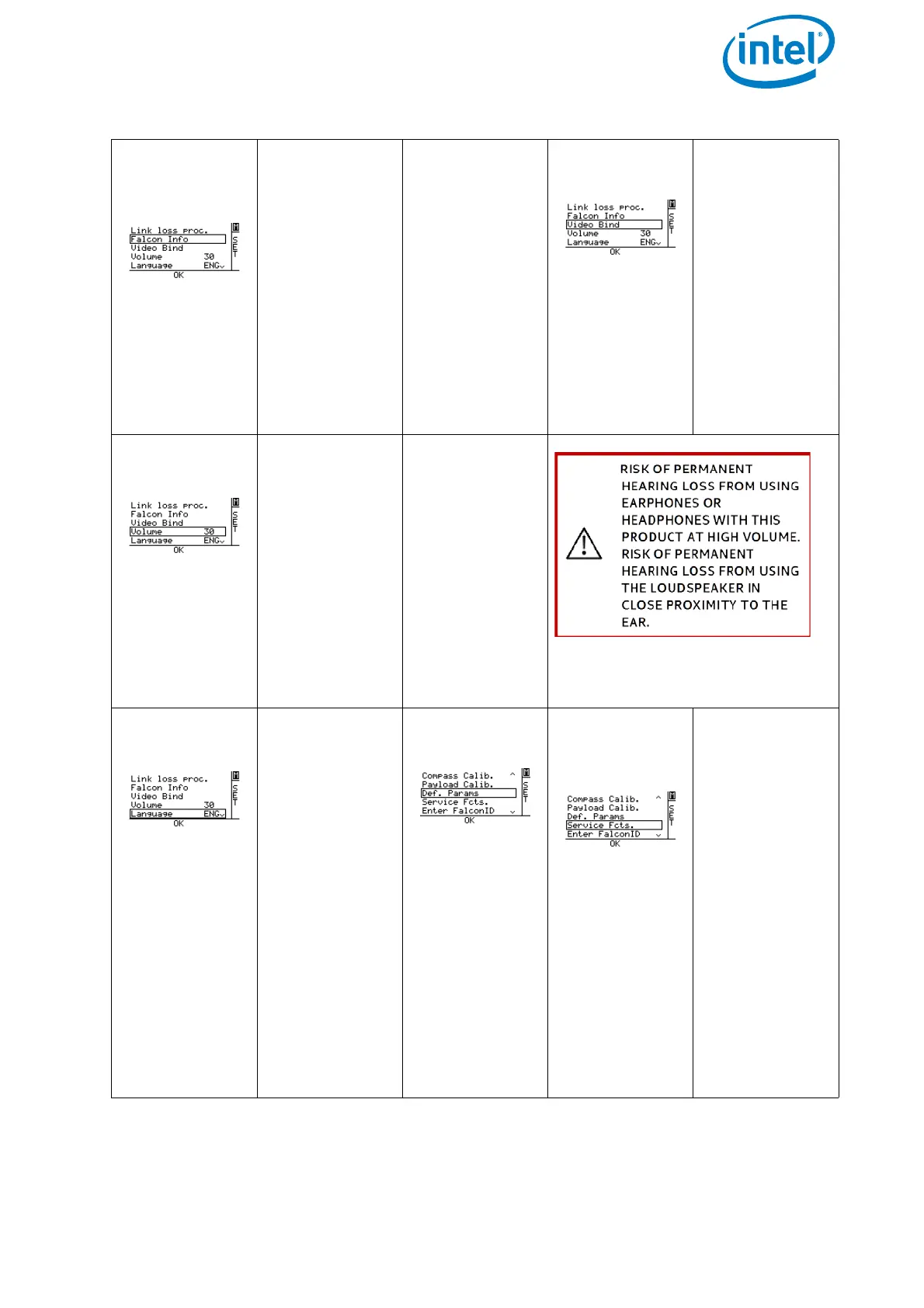

Selecting
Falcon
Info
and pushing
ENT opens an
information
screen.
Here you see
the serial num-
ber and the
firmware ver-
sions of the
current hard-
ware compo-
nents. In the
last column,
the activated
feature pack-
ages are
shown.
For further
details see
“Checking
Activated Soft-
ware Feature
Packages” on
page 89.
Pushing ESC
brings you
back to the
menu.
Selecting
Video Bind
and pushing
ENT estab-
lishes (again)
the video con-
nection bet-
ween the UAV
and the CTR.
Selecting
Volume
and pushing
ENT high-
lights the
number
behind.
By pushing the
RIGHT/LEFT
arrow buttons
you can mod-
ify the volume
of the audible
messages of
the Status Dis-
play of the
CTR.
A range from
10 (low vol-
ume) to 100
(high volume)
is available.
Pushing ENT
confirms the
selection.
Pushing ESC
brings you
back to the
menu.
see “Intel® Cockpit Controller
(CTR) Overview” on page 24
Selecting
Language
and pushing
ENT high-
lights the field
to the right.
By pushing the
RIGHT/LEFT
arrow buttons
you can select
between
English (ENG)
and German
(
GER). Push-
ing ENT con-
firms and
pushing ESC
brings you
back to the
menu.
Selecting
Def.Params
and pushing
ENT opens a
new screen.
Here you can
reset the CTR
to factory
defaults if the
connection to
the UAV ID
was lost. A new
pairing has to
be done.
Selecting
Service
Fcts.
and pushing
ENT opens a
special screen.
This function
is only for ser-
vice personal.
For Compass
Calib.
and
Payload
Calib.
see
“Payload and
compass cali-
bration” on
page 36
Table 4.1: Status Display Menu Structure (Continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
