Chapter 11 — Maintenance
108 EasyCoder PM4i Printer User’s Guide (Fingerprint Version)

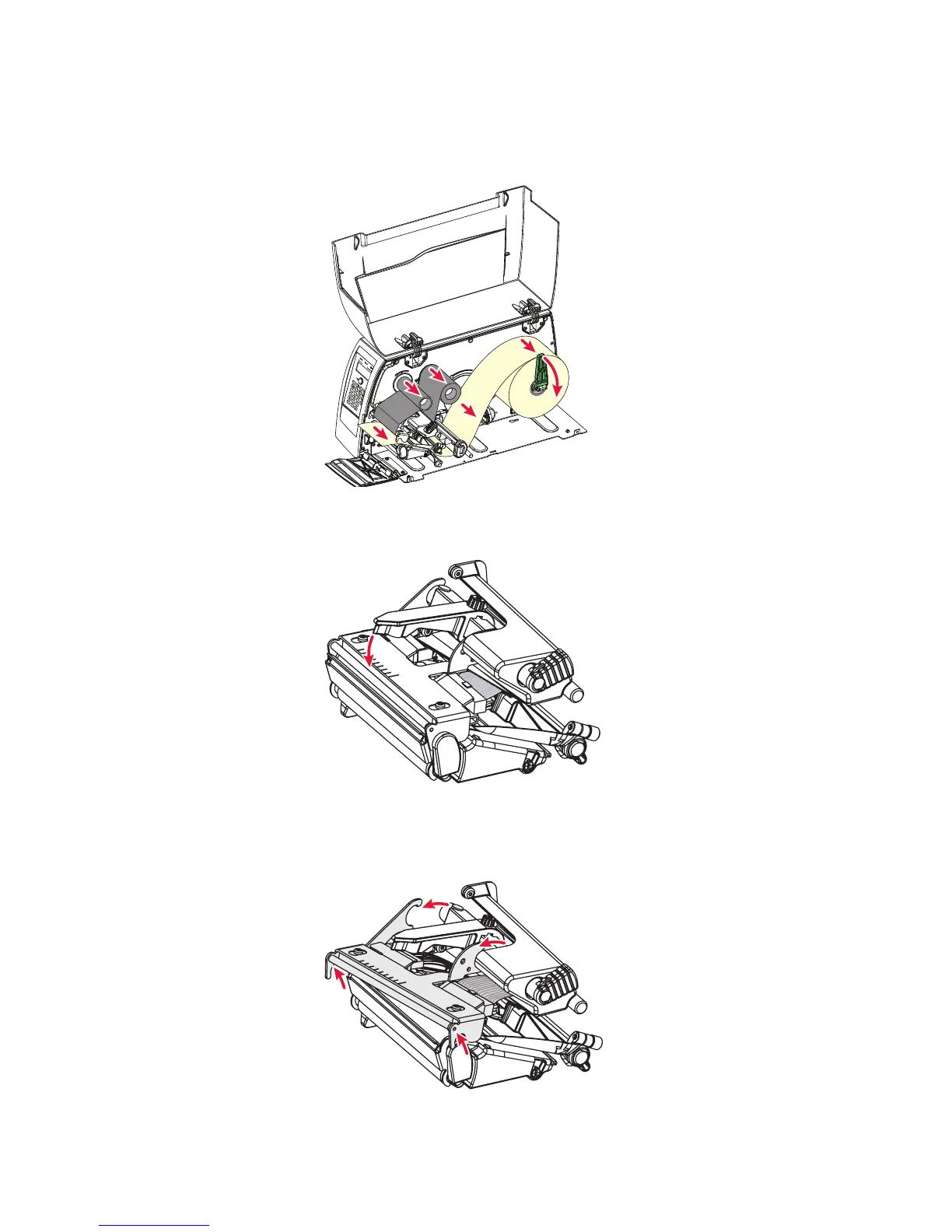

3 Remove any media and transfer ribbon.
4 Pull the printhead bracket away from the magnet in the
pressure arm.
5 Disconnect the printhead bracket from the print mechanism
as indicated by the arrows and pull out the printhead as far as
the cables allow.
