Intermec EasyCoder PX6i Service Manual

VCC
OUTa
OUTc
EasyCoder PX4i and PX6i Service Manual 179
Chapter 16 — Interfaces
Digital Opto Out
The current to each optocoupler of the digital OUT ports can be turned
on and off using PORTOUT ON/OFF statements.
The status of the ports can be read using PORTIN functions. If a current
is led through the optocoupler of the port, PORTIN returns the value -1
(true), else it returns the value 0 (false).
Signal Description Max.
Vceo Collector-Emitter breakdown voltage 35V
Veco Emitter-Collector breakdown voltage 6V
Collector Current 15 mA
Vog Output to ground (optocoupler) 100V
Connector Configuration
The Fingerprint reference numbers inside the parentheses refer to a second
Serial/Industrial interface board.

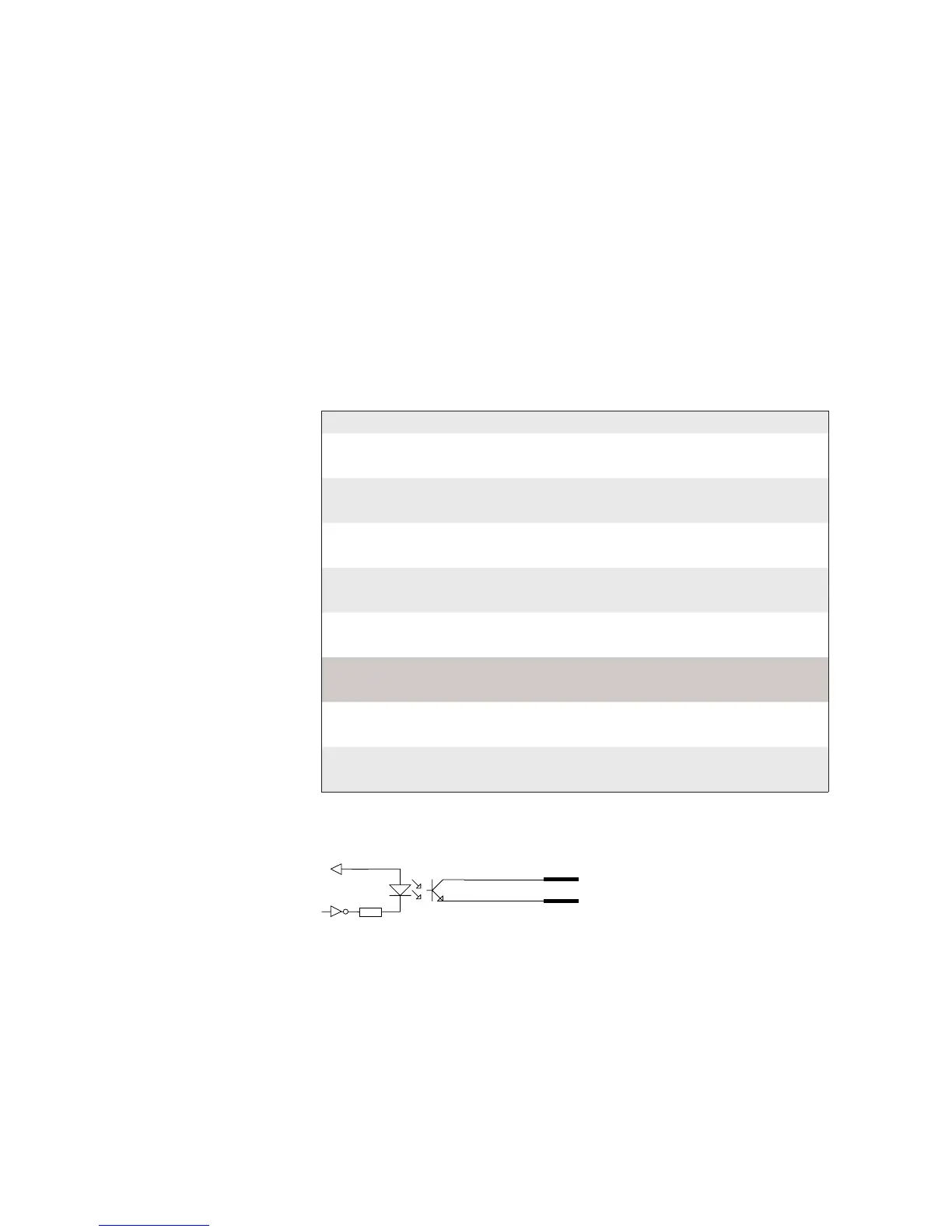

Simplifi ed schematics of a digital OUT port.
Pin Signal Name Description Fingerprint Ref. No.
20 Out1c Collector Opto Out Channel 1 221 (421)
5 Out1e Emitter Opto Out Channel 1
35 Out2c Collector Opto Out Channel 2 222 (422)
21 Out2e Emitter Opto Out Channel 2
6 Out3c Collector Opto Out Channel 3 223 (423)
36 Out3e Emitter Opto Out Channel 3
22 Out4c Collector Opto Out Channel 4 224 (424)
7 Out4e Emitter Opto Out Channel 4
37 Out5c Collector Opto Out Channel 5 225 (425)
23 Out5e Emitter Opto Out Channel 5
8 Out6c Collector Opto Out Channel 6 226 (426)
38 Out6e Emitter Opto Out Channel 6
24 Out7c Collector Opto Out Channel 7 227 (427)
9 Out7e Emitter Opto Out Channel 7
39 Out8c Collector Opto Out Channel 8 228 (428)
25 Out8e Emitter Opto Out Channel 8

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
