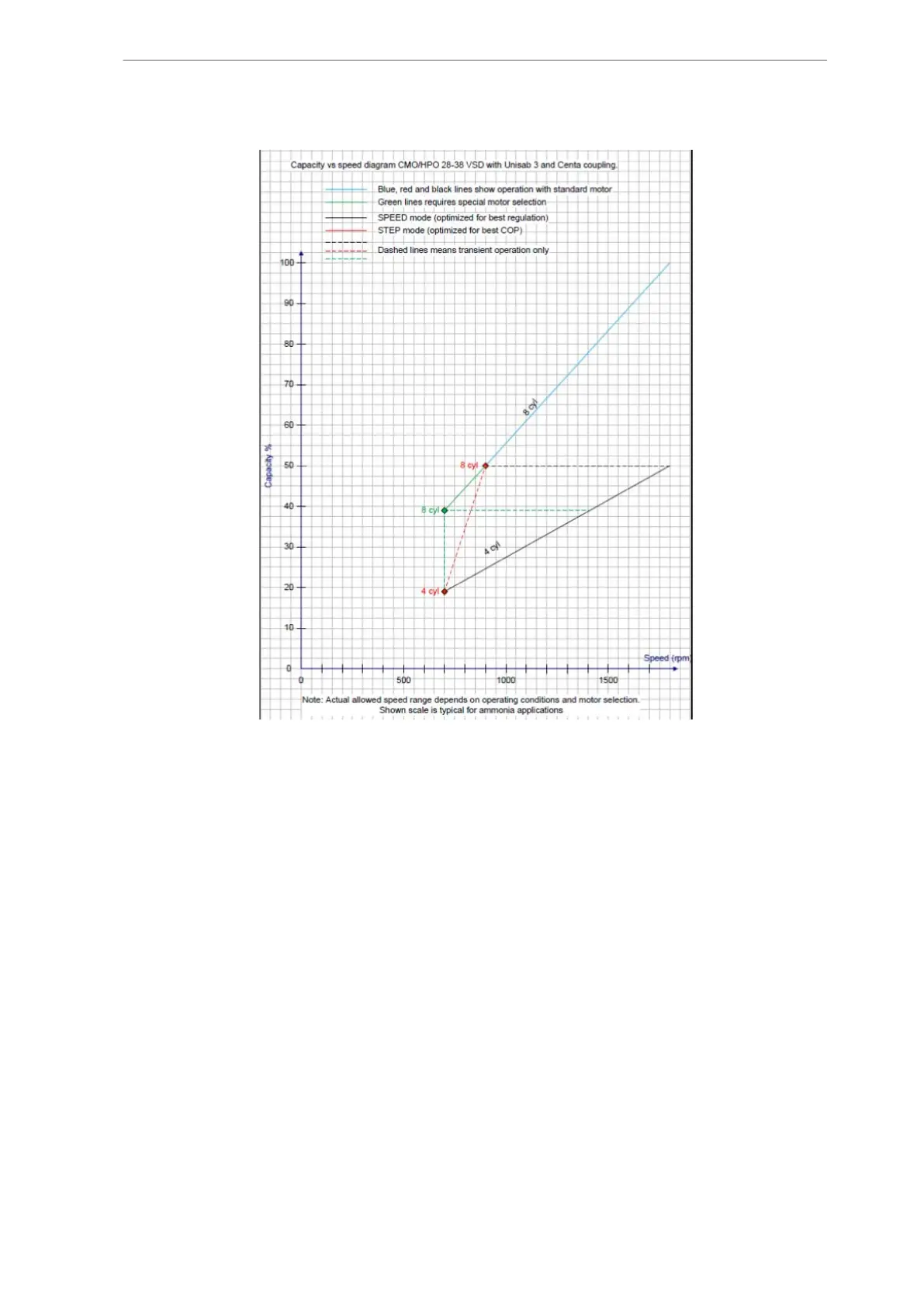

Fig. 19: Capacity vs. speed curves for CMO 28 with Centa coupling
The minimum compressor capacity for a typical 4-pole motor at 50 Hz running Speed mode
will be:
Standard motor Special motor
SMC/HPC 104 47% 700 rpm 33% 500 rpm
SMC/HPC 106 47% 700 rpm 33% 500 rpm
SMC/HPC 108 17% 500 rpm
TSMC 108 11% 500 rpm
SMC 112 17% 500 rpm
SMC 116 8% 500 rpm
TSMC 116 6% 500 rpm
CMO/HPO 24 50% 900 rpm 39% 700 rpm
CMO/HPO 26 19% 700 rpm
CMO/HPO 28 19% 700 rpm
TCMO 28 13% 700 rpm
Compressor control and surveillance
120/319
Engineering manual - Unisab III 1.10
001930 en 2014.09
