Johnson Controls SABROE Unisab III Control User Manual

Menu level 1 Menu level 2 Menu level 3 Menu level 4
Control values Suction Values
Pressure Bar
Pressure Deg.
Superheat
Internal suction pressure
Internal pressure
Limits
Control
Limits
Control
Limits
Control
Limits (SABflex, SABCube)
Control (SABflex, SABCube)
Limits (SAB 157HR only)
Control (SAB 157HR only)
Discharge Values
Pressure Bar
Pressure Deg.
Temperature
Superheat
Pressure ratio
Limits
Control
Limits
Control
Limits
Control
Limits
Control
(SABflex, SABCube)
Oil Values
Pressure
Filter
pressure
Pump
Temperature
Separator temp.
Limits
Control
Limits
Limits (SAB 120-151,
SAB 193-355, SAB 157HR)
Limits
Control
Limits (SAB 120-151,
SAB 193-355, SAB 157HR SABflex)
Control (SAB 120-151,
SAB 193-355, SAB 157HR SABflex)

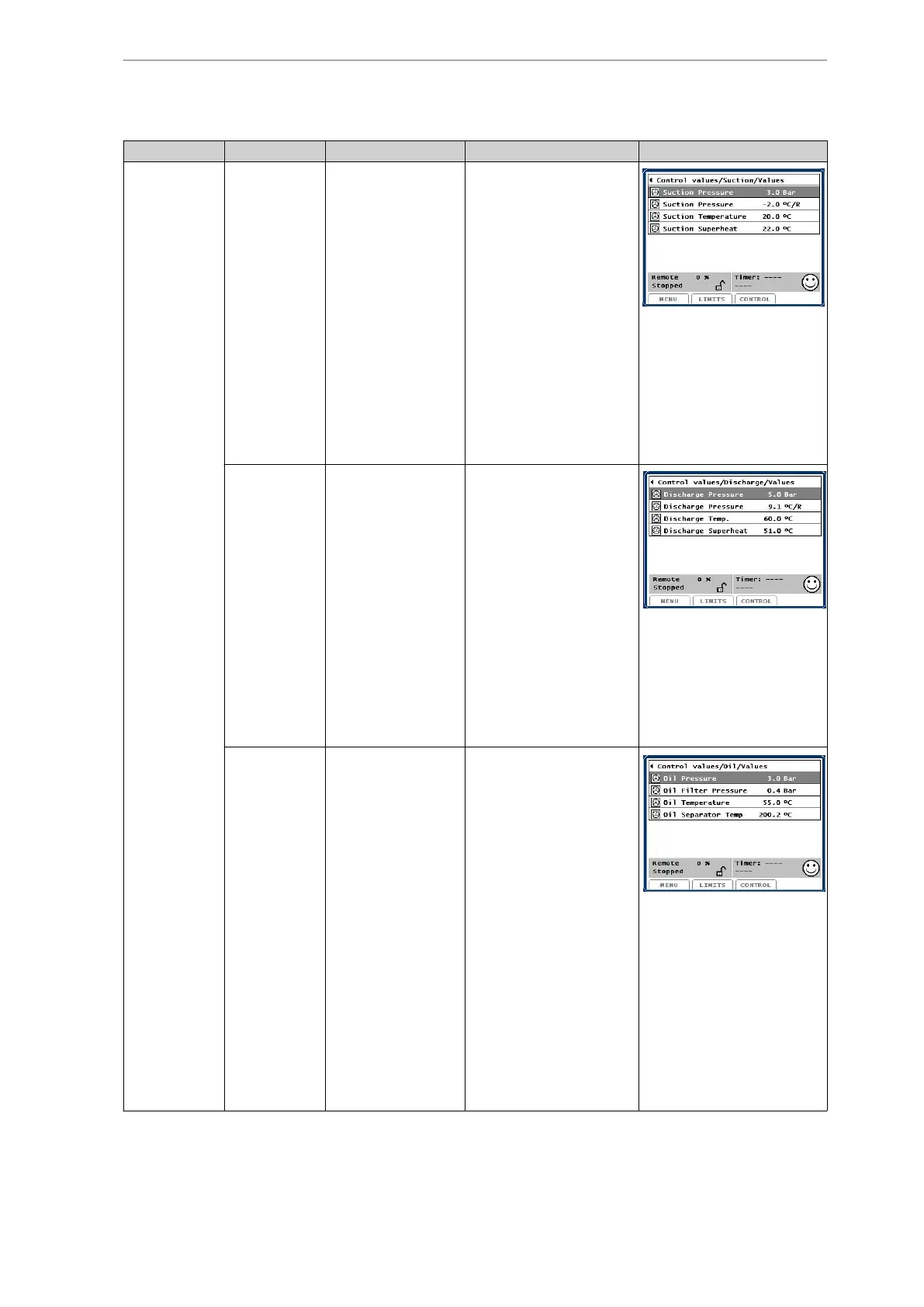

Table 2: Unisab III HMI menu tree
Unisab III control
20/319
Engineering manual - Unisab III 1.10
001930 en 2014.09
