See Figure 16 on page 29 for an example of the power supply.

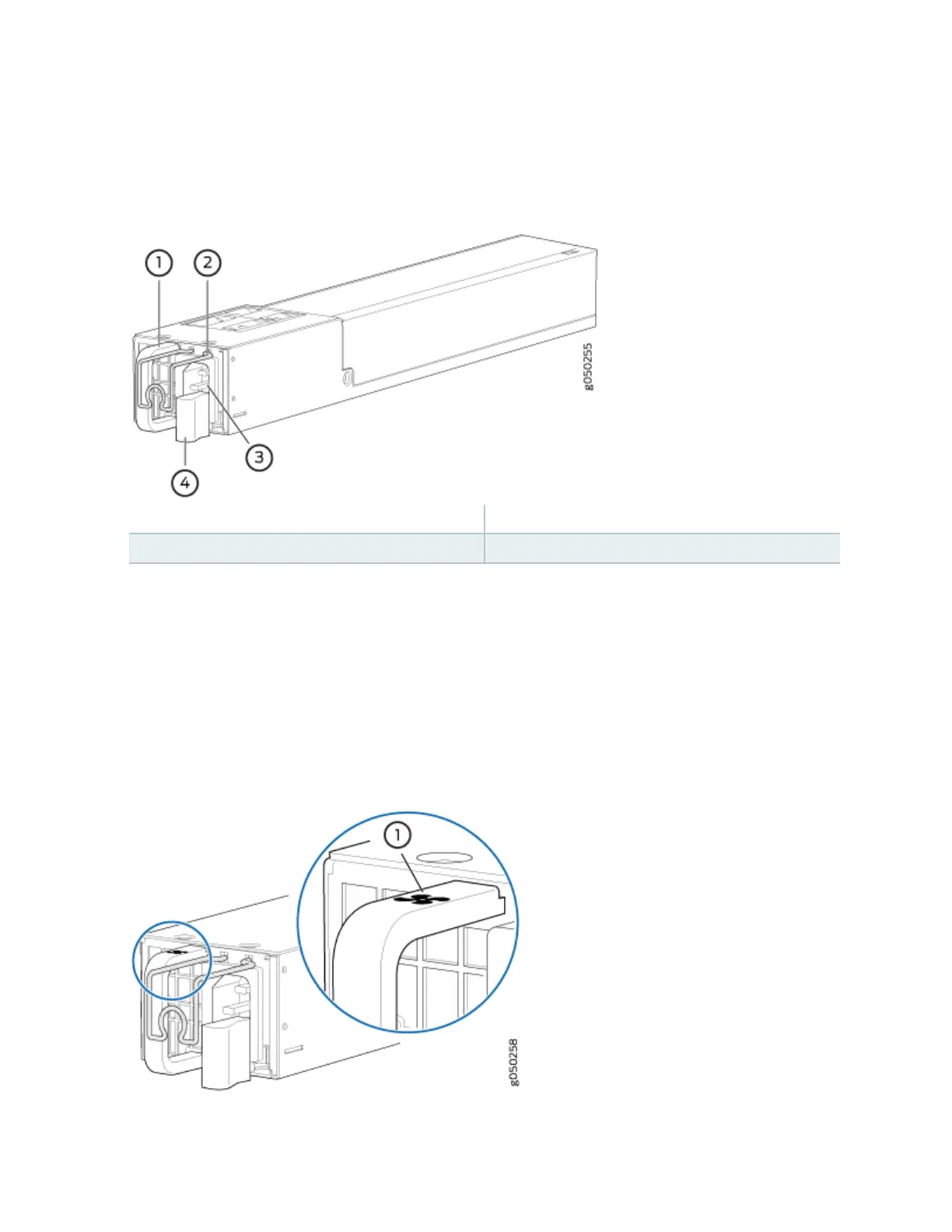

Figure 16: AC Power Supply in EX4600 Switches

1—

Handle

3—

AC appliance inlet

2—

Security latch

4—

Ejector lever

The power supply provides FRU-to-port or port-to-FRU airow depending on the product SKU you

purchase. On legacy switches, or switches with an LCD, this airow is called back-to-front and front-to-

back. The power supplies either have labels on the handles that indicate the direcon of airow or they

have color-coded handles with a fan icon. See Figure 17 on page 29 for an example of the power

supply. Either a power supply has the label AFI or a blue handle, which denotes FRU-to-port airow. A

power supply with the label AFO or a gold-colored handle denotes port-to-FRU airow.

Figure 17: Power Supply Handle Detail
