Chapter 1. The Kaye Validator AVS
Kaye Validator AVS User’s Manual 8
1.4.3 Plug-In Hardware Connections
The Validator AVS has connectors on the back of the unit for easy plug-in of SIMs,
temperature standards, temperature references. It also provides connection ports for
USB and Ethernet for the Console and the Validator. Another separate USB port is
utilized for the year device calibration USB with the ICAL software. The USB
memory card port on the left side of the instrument can be used to dump the saved
studies from the AVS directly to a thumb drive. An icon indicating the type of device
identifies each connector.

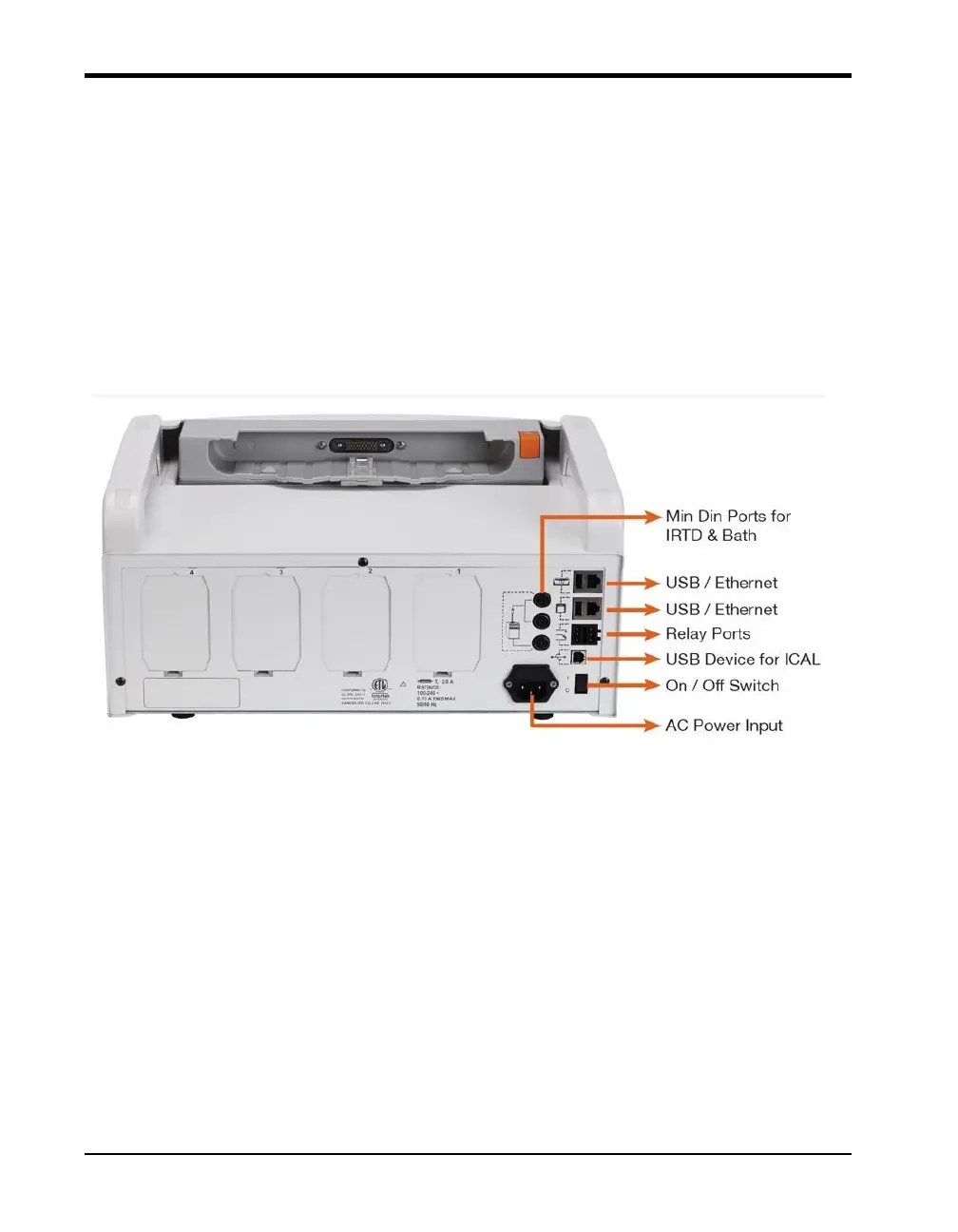

Figure 4: Validator AVS Connections
For a more complete description of the hardware, see Chapter 2, The Validator AVS
Hardware.
