Chapter 2. The Validator AVS Hardware
Kaye Validator AVS User’s Manual 16
2.2 The Validator AVS Instrument
The Validator AVS instrument is equipped with over 4 GB of internal memory, and a
backup battery in case the system loses AC power.
2.2.1 Connection Ports

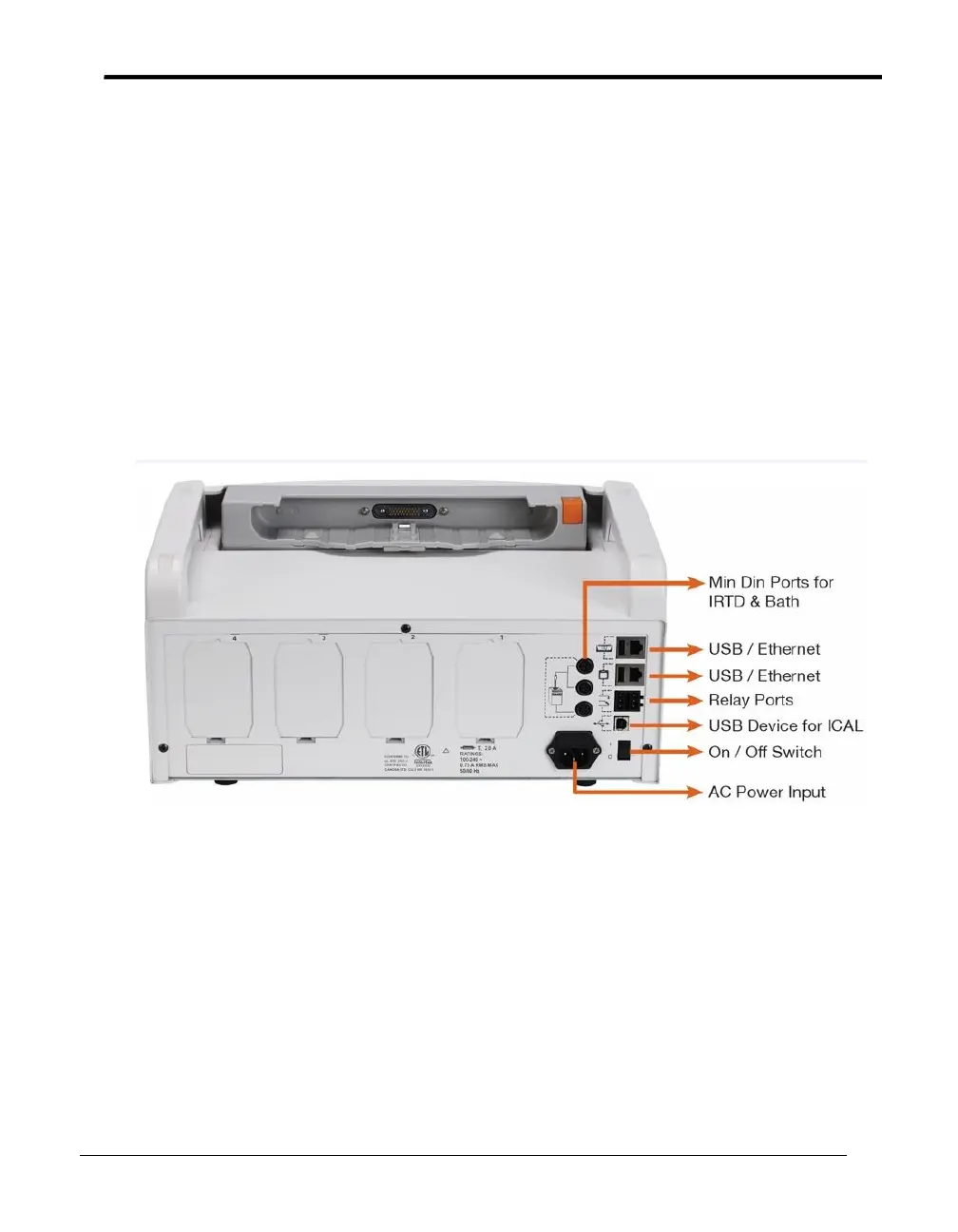

The back of the Validator AVS (shown in Figure 5 below) has ports for electrical and
communication connections. Each connection port is labeled with an icon representing
its function. The connection ports are defined on page 18. Below the ports are the
ON/OFF switch and the AC power input.
Figure 5: Connection Ports
