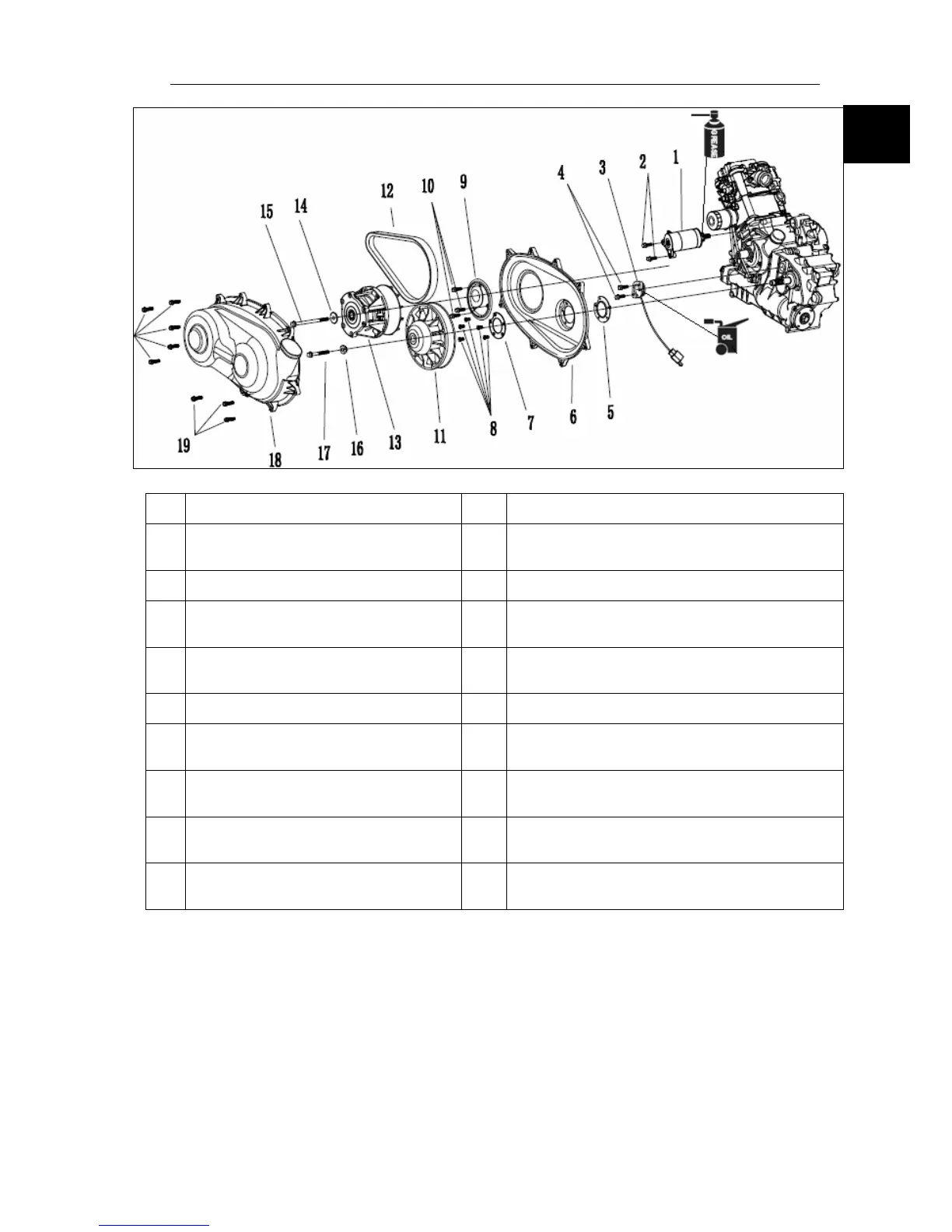

KEEWAY 500ATV - Page 131

6. Engine Removal;In
spection & Installation
6-69
1
Starting Motor 11 CVT
driven wheel
2
Hexagon flange bolts M6*32
torsion 10N.m
12
CVT
leather belt
3
Archives show is 13 CVT
driving wheel
4
Hexagon flange bolts M6*16
torsion 10N.m
14
Steps mat
5
drive shaft clapboard
down
15
Hexagon flange bolts M10*160
torsion 80N.m
6
Left the box cover
Lower body
16 Steps mat
7
Drive shaft clapboard
up
17
Hexagon flange bolts M10*100
torsion 80N.m
8
T
he countersunk head screws M6*12
torsion 10N.m
18
Left the box cover
Upper body
9
Crankshaft clapboard 19
Hexagon flange bolts M6*32
torsion 10N.m
10
Hexagon flange bolts M6*18
torsion 10N.m
