6. Engine Removal;In
spection & Installation
6-15
1.4 No pneum
atic board in the hand
with dedicated tools will be
active wheel fixed remove.

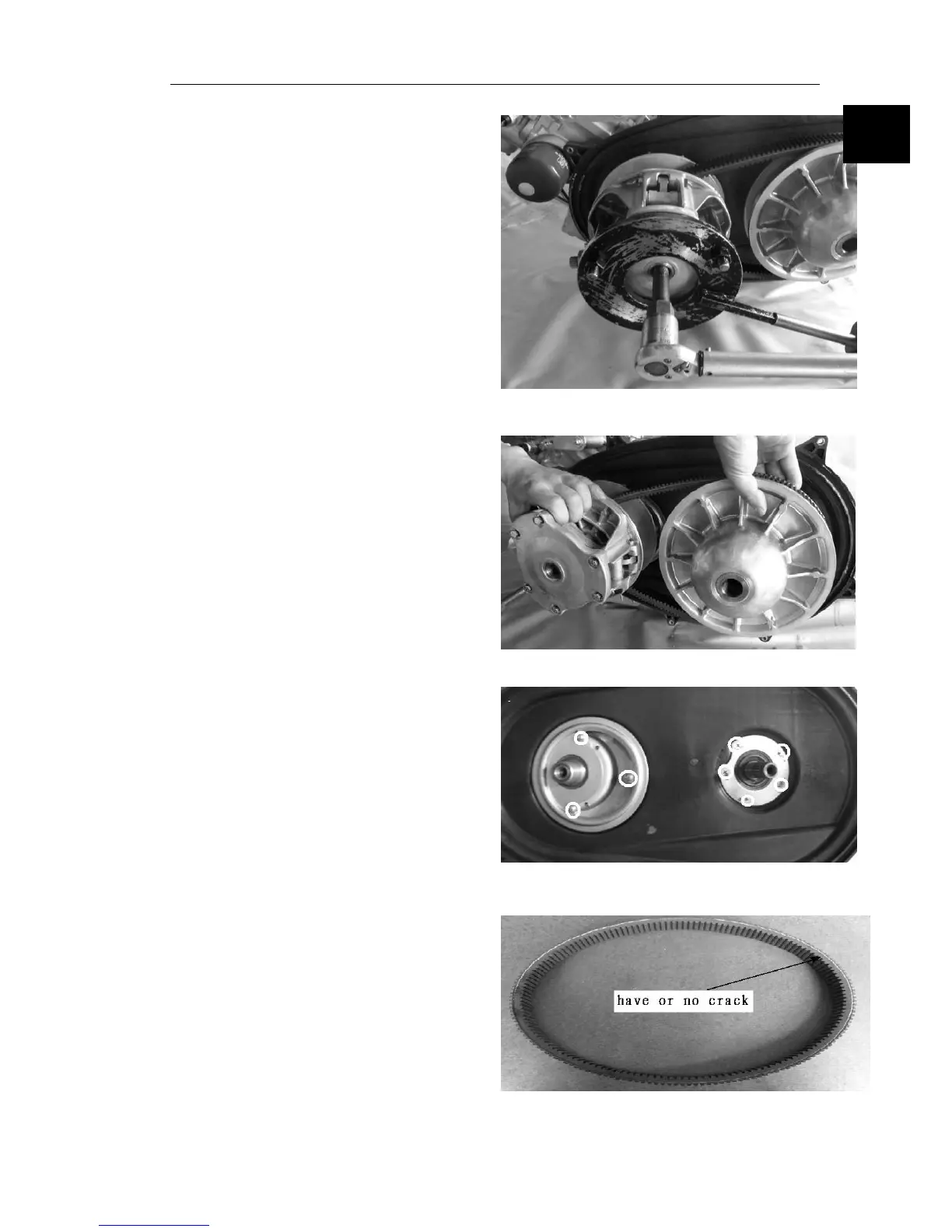

1.5 As shown in figure CVT active wheel
dial the come out, even with driven
pulley and belt off together.
1.6 As shown in figure remove three
M6 * 18 hex flange bolts and five
M6 * 12 countersunk head screws,
then remove the left box nakedness.
1.7 CVT belt examination：
1.7.1. The belt can't have crack, such as a
crack will need to change.
1.7.2．The width of the CVT belt
examination.
