Model 2701 User’s Manual Basic DMM Operation 3-31

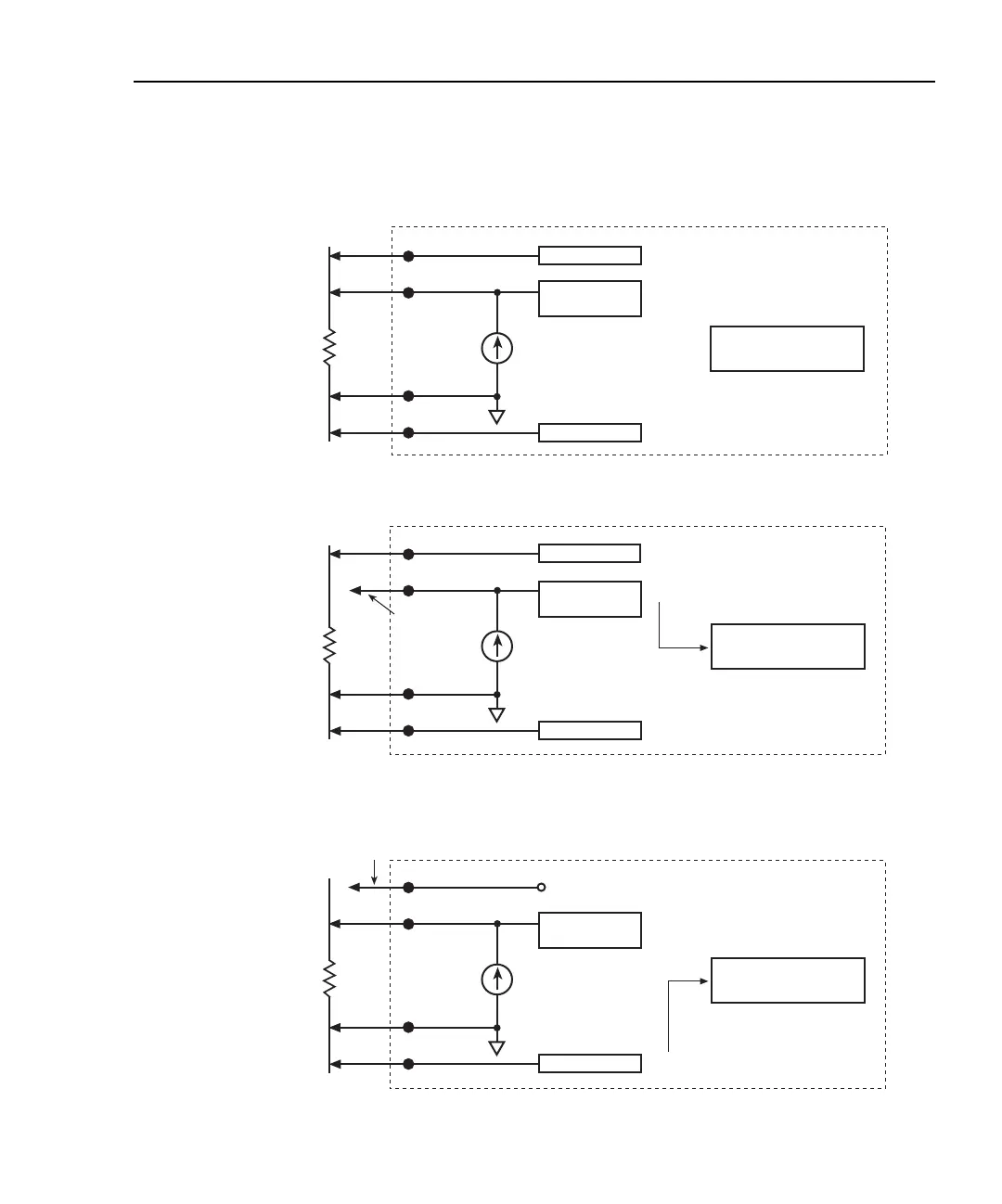

Figure 3-12
Open ohms test lead detection
Sense HI
Input HI
S/W Detection
Input Lo
Sense Lo
S/W Detection
I-Source
100Ω
DUT
1mA
100mV
0mV
100mV
Sense HI
Input HI
S/W Detection
H/W Detection
S/W Detection
Input Lo
Sense Lo
S/W Detection
I-Source
100Ω
DUT
1mA
6.6V
Open Input
Lead
Sense HI
Input HI
Input Lo
Sense Lo
S/W Detection
I-Source
100Ω
DUT
1mA
-15mV
Open Sense
Lead
OVR.FLW
Ω
2701 Reading
(100Ω range)
OVR.FLW
Ω
2701 Reading
(100Ω range)
100.000
Ω
2701 Reading
(100Ω range)
A) Normal 4-wire ohms measurement
B) Open input lead lead detected
C) Open sense lead lead detected
2701
2701
2701
H/W Detection
S/W Detection
H/W Detection
S/W Detection

Keithley 2701 Specifications

General

Max Voltage	300 V
Max Current	3 A
Frequency Range	3 Hz to 500 kHz
Frequency Accuracy	0.01%
Weight	3.6 kg
Measurement Functions	Frequency, Temperature
Interface	IEEE-488 (GPIB), RS-232
DC Voltage Range	300 V
DC Current Range	3 A
AC Voltage Range	300V
AC Current Range	1 μA to 3 A
Resistance Accuracy	0.01%
Channels	10
Dimensions	213mm x 88mm x 370mm
