Model 2701 User’s Manual Remote Operations 10-7
Ethernet setup
Ethernet standards
The Model 2701 conforms to these standards:
• TCP/IP
• HTTP
• IEEE-802.3
• SCPI 1996.0 (Standard Commands for Programmable Instruments)
Typical Ethernet systems
The four typical Ethernet systems using a Model 2701 are shown in Figures 10-1 through
10-4. The simplest system connects a Model 2701 directly to a PC equipped with a NIC
(Network Interface Card) as shown in Figure 10-1. The Ethernet cable can be up to 100
meters in length.

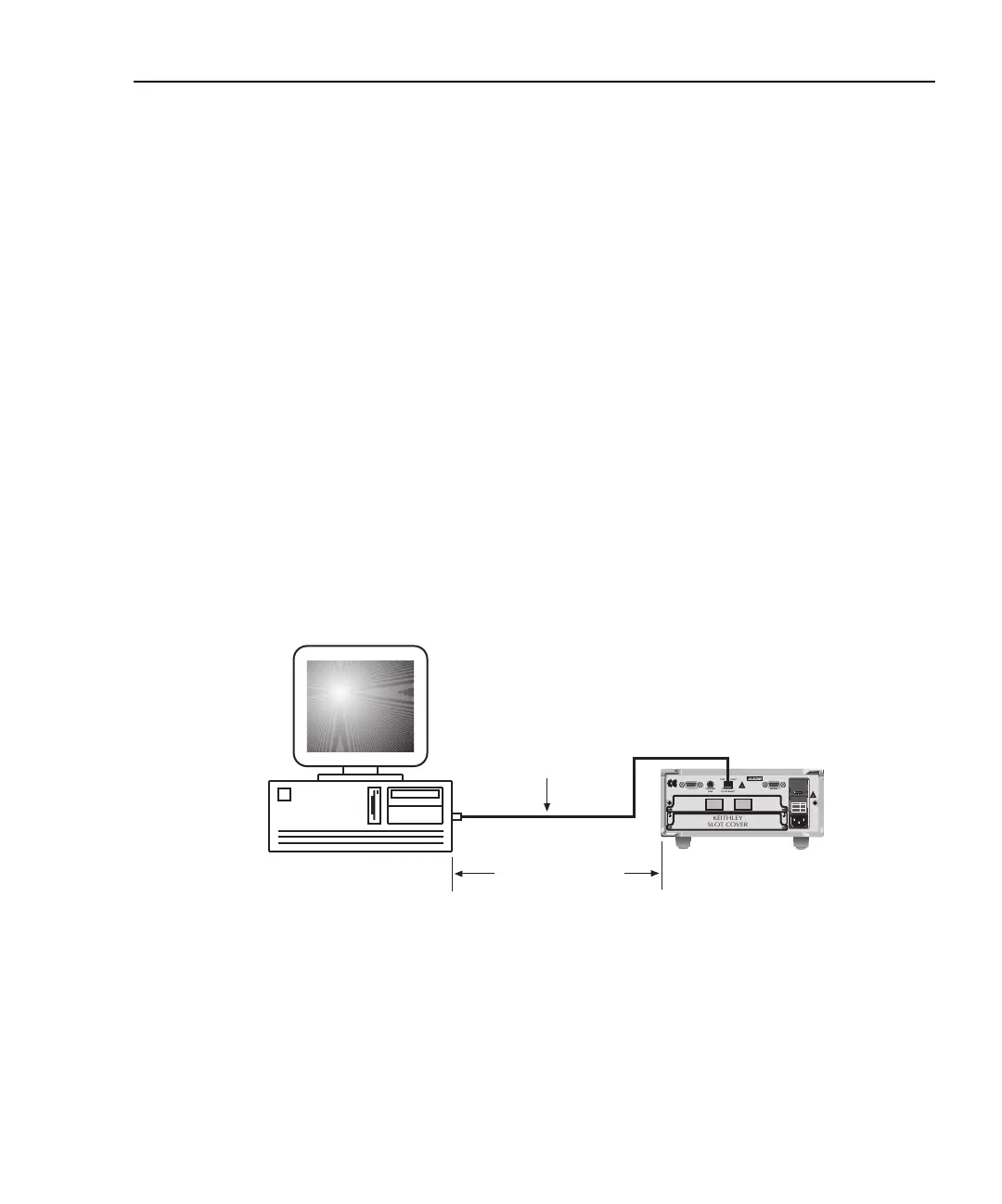

Figure 10-1
Direct 2701 connection to PC
KEITHLEY
SLOT COVER
TRIGGER
LINK
ETHERNET
10/100 BaseT
10bT 100bT
RS-232
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
!
!
SLT
2
SLT
1
DIGITAL I/O
(EXT. TRIG.)
CAT I
Up to 100 meters
PC with NIC installed
Keithley 2701
Ethernet cross-over cable
(RJ-45 male/male)
~LINE RATING
50, 60, 400Hz
28VA MAX
250mAT
125mAT
220V
240V
100V
120V
FUSE LINE
~LINE RATING
50, 60, 400Hz
28VA MAX
250mAT
125mAT
220V
240V
100V
120V
FUSE LINE
