Model 2701 User’s Manual Signal Processing Sequence and Data Flow D-3

Signal processing using instrument features

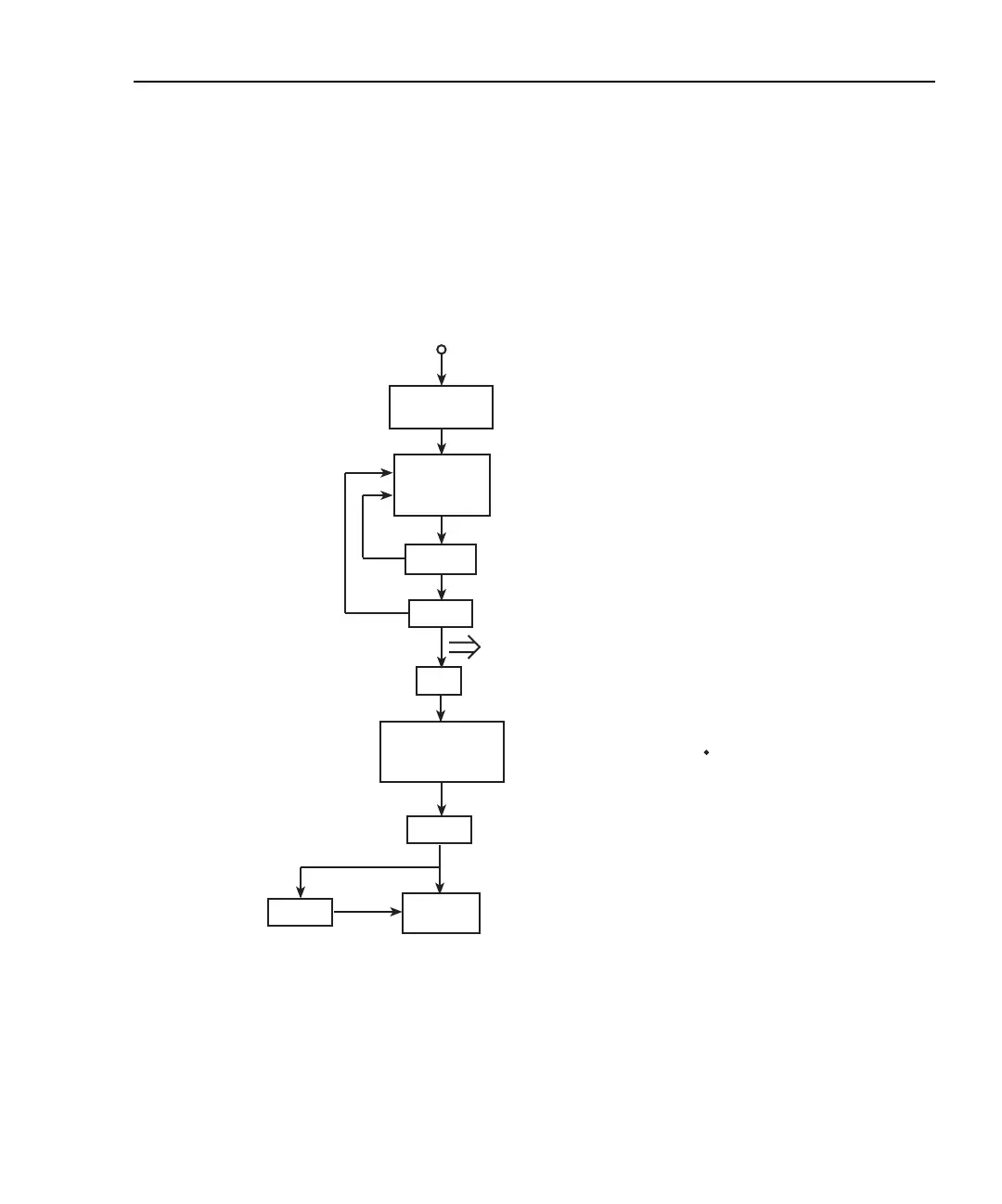

Figure D-2 shows the processing sequence for an input signal with various instrument

features enabled. If a feature is not enabled, the reading simply falls through to the next

enabled feature or to the display.

Figure D-2

Signal processing using instrument features

Input Signal

Rel

Math

(mX+b, Percent,

or Reciprocal)

Rel’ed reading = Reading - Rel value

Y = mX + b

Percent = ————––—–

X - Reference

Reference

100%

Reciprocal = 1/ X

Limits

Filter

Buffer

Display

Reading

Recall

OComp

OComp reading = ∆V/∆I

A/D

Conversion

Process

Store

Signal

Conditioning

Output trigger pulse (VMC)

Moving or Repeating
