1-34 Getting Started Model 2701 User’s Manual

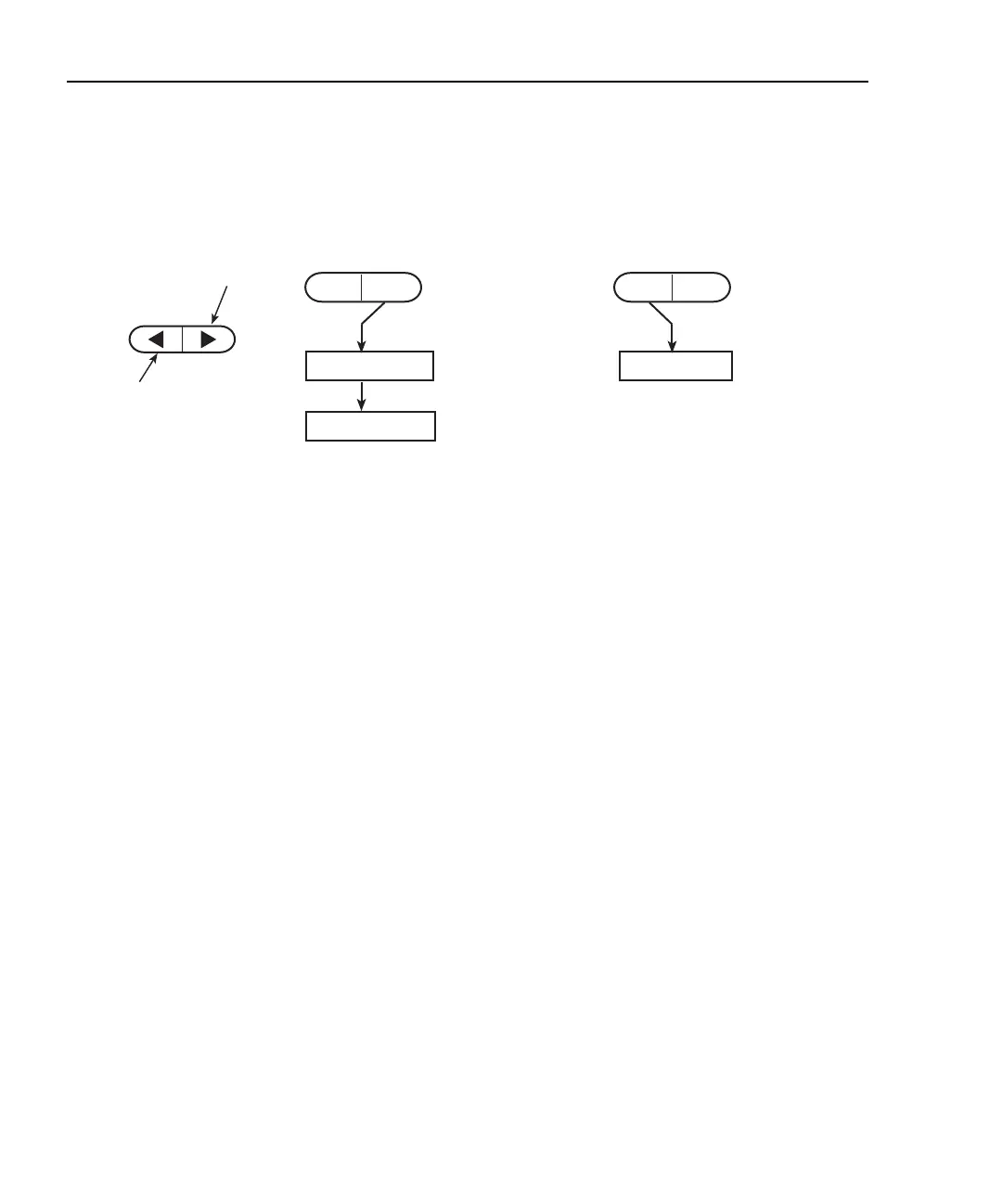

Figure 1-6 shows the front panel keys used to close and open system channels.
Figure 1-6
Front panel keys to close and open system channels
For remote programming, the following three commands are used for basic system opera-
tion to open and close input channels:
ROUTe:CLOSe <clist> ’ Close specified system channel
1
.
ROUTe:CLOSe? ’ Query closed system channel
2
.
ROUT:OPEN ALL ’ Open all channels.
1. Only one channel can be specified in the <clist>. For example, to close input channel 3 for a module in
slot 1, the following command would be sent:
ROUTe:CLOSe (@103)
2. Only the closed system channel is returned by ROUTe:CLOSe?. The paired channel for a 4-wire
function is not returned. For example, assume channel 2 in slot 1 is closed. The following response
message will be returned:
(@102)
Close next
measurement
channel
Close previous
measurement
channel
CLOSEOPEN
CLOSE CH: XXX
CLOSE:SINGLE
Press CLOSE key
Display SINGLE option
and press ENTER
Specify channel
number (XXX) and
press ENTER
CLOSEOPEN
OPEN: ALL
Press OPEN key
Display ALL
option and press
OPEN again
A. Sequencing through
channnels
B. Specifiying channel to close C. Opening all channels

Keithley 2701 Specifications

General

Max Voltage	300 V
Max Current	3 A
Frequency Range	3 Hz to 500 kHz
Frequency Accuracy	0.01%
Weight	3.6 kg
Measurement Functions	Frequency, Temperature
Interface	IEEE-488 (GPIB), RS-232
DC Voltage Range	300 V
DC Current Range	3 A
AC Voltage Range	300V
AC Current Range	1 μA to 3 A
Resistance Accuracy	0.01%
Channels	10
Dimensions	213mm x 88mm x 370mm
