Model 2701 User’s Manual Getting Started 1-37

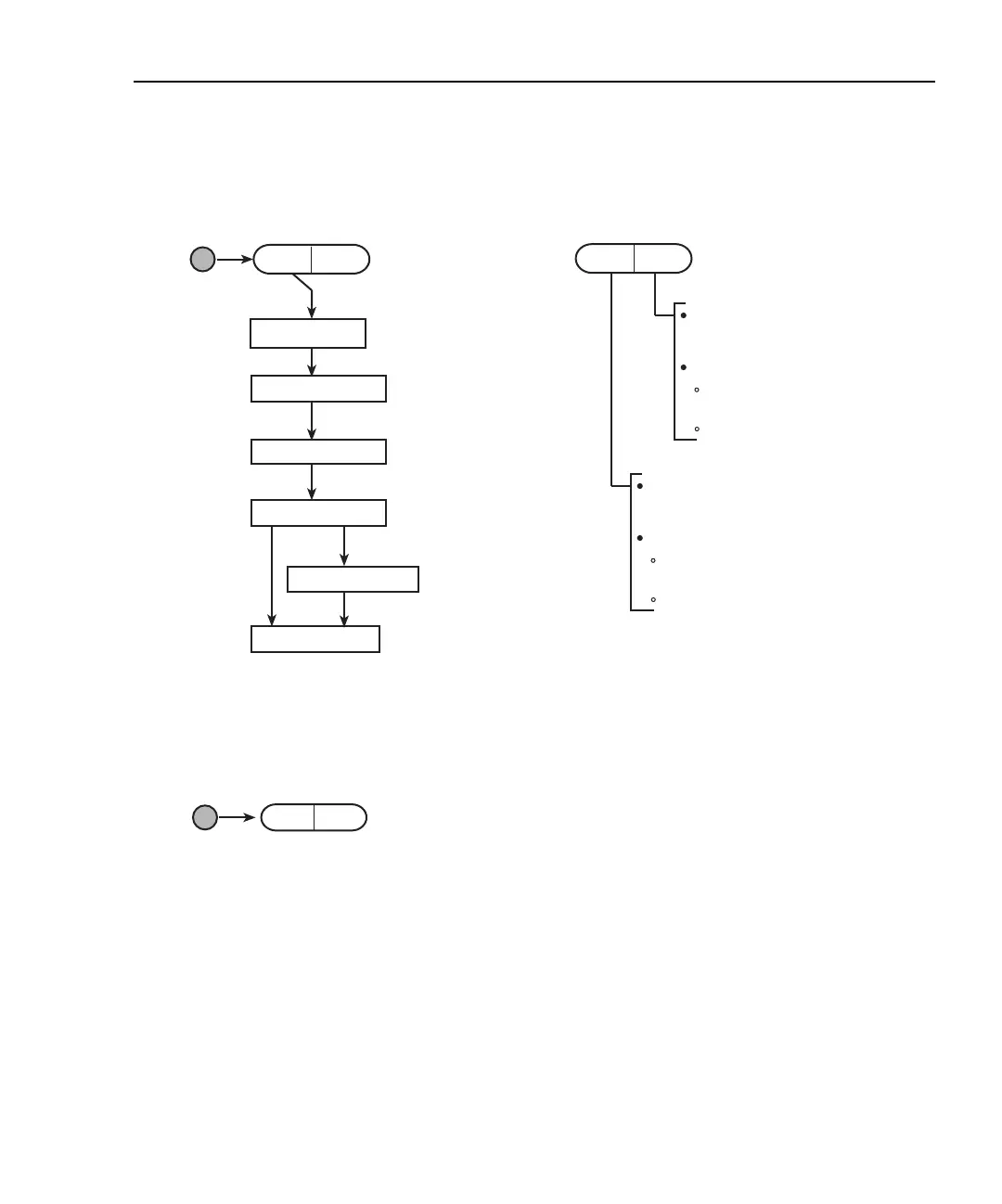

Figure 1-7
Simple scan operation
For remote programming, the following commands are used for simple scanning:
ROUTe:SCAN <clist> ’ Define scan list*.
TRIGger:COUNt <NRf> ’ Specify number of scans (1 to 450000 or
INFinity).
SAMPle:COUNt <NRf> ’ Specify number of channels to scan (1 to
450000).
ROUTe:SCAN:LSELect <name> ’ Enable (INT) or disable (NONE) scan.
* Any valid switching module channel can be included in the scan list. Make sure to list them from the lowest
numbered channel to the highest. For example, to scan channels 1 through 8 of a Model 7700 installed in slot
1, send the following command to define the scan list:
ROUTe:SCAN (@101:108)
MIN CHAN: XXX
INT: SIMPLE
Display SIMPLE option
and press ENTER
Specify minimum
channel (XXX) and
press ENTER
SHIFT
SCANSTEP
CONFIG
Press SHIFT
Press CONFIG (STEP)
MAX CHAN: YYY
Specify maximum
channel (YYY)
and press ENTER
TIMER? NO/YES
Display NO or YES
and press ENTER
YES
NO
xxH:xxM:xx.xxxS
Set timer interval in
hr:min:sec format and
press ENTER
RDG CT:xxxxxx
Specify reading count
and press ENTER
SCANSTEP
Press STEP or SCAN to start
scan
Timer interval specifies time
between scans.
Reading count:
Specifies number of scans
to be performed.
Specifies number of readings
to store in buffer.
Timer interval specifies time
between scanned channels.
Reading count:
Specifies number of channels to be
scanned.
Specifies number of readings to store
in buffer.
Step 1. Configure simple scan: Step 2. Run simple scan:
SHIFT
SCANSTEP
HALT
Press SHIFT
Press HALT (SCAN)
Step 3. Disable scan mode:
