Model 2701 User’s Manual
Close/Open Switching Module Channels
2-25

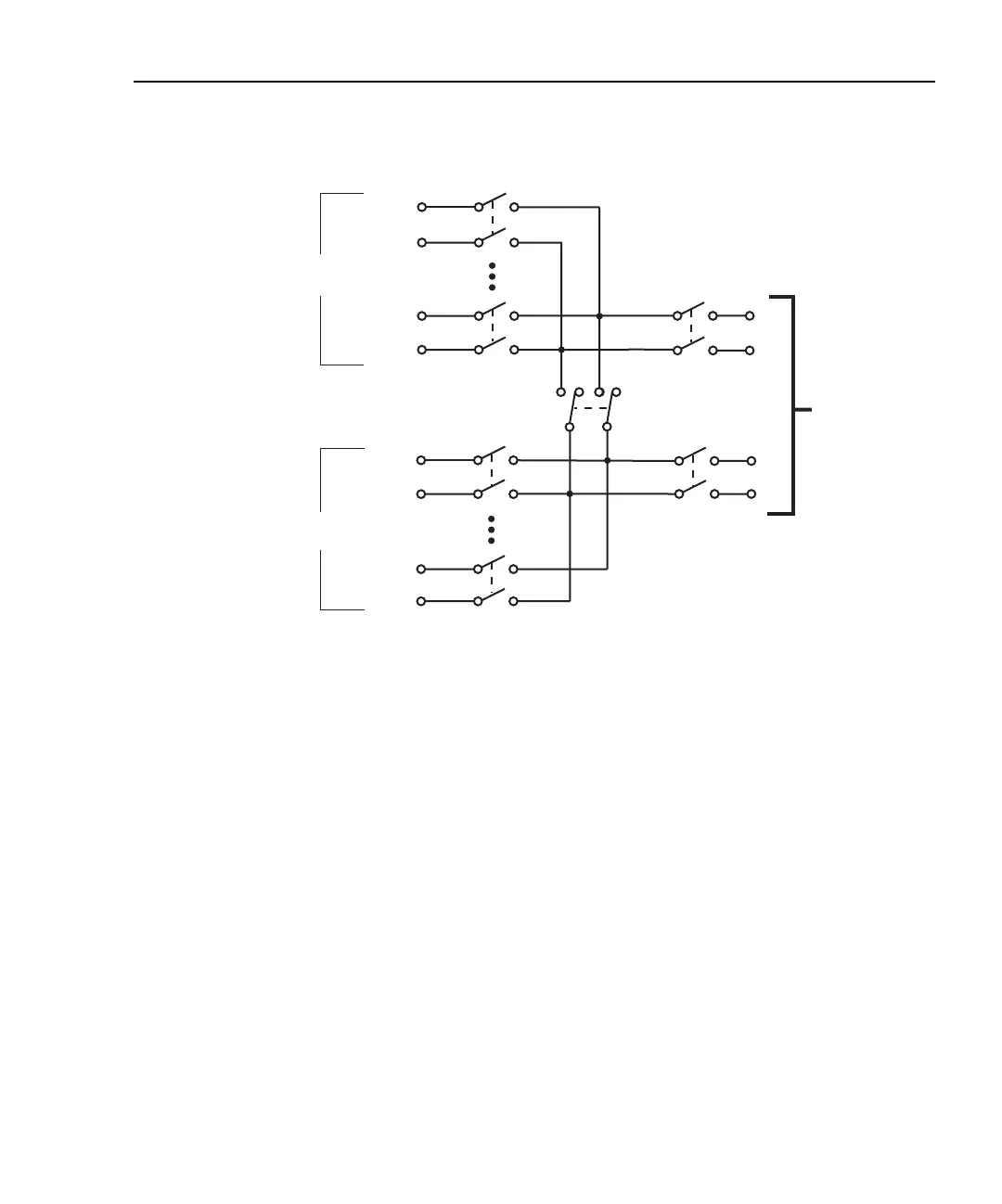

Figure 2-8
Dual multiplexer configuration (Model 7700)
Ch 1
Ch 10
Ch 1
1
Ch 20
Ch 23
(Closed)
Ch 24
Ch 25
Multiplexer A
(1x10)
Multiplexer B
(1x10)
For the dual multiplexer configuration,
Ch 23 must be closed and Ch 24 must
remain open.
HI
LO
HI
LO
Channels
2
–
9
HI
LO
Channels
12
–
19
HI
LO
Sense
HI
LO
Input
To
Model 2701
DMM
HI
LO
90
92
