Keithley 2701 User Manual

2-28 Close/Open Switching Module Channels Model 2701 User’s Manual

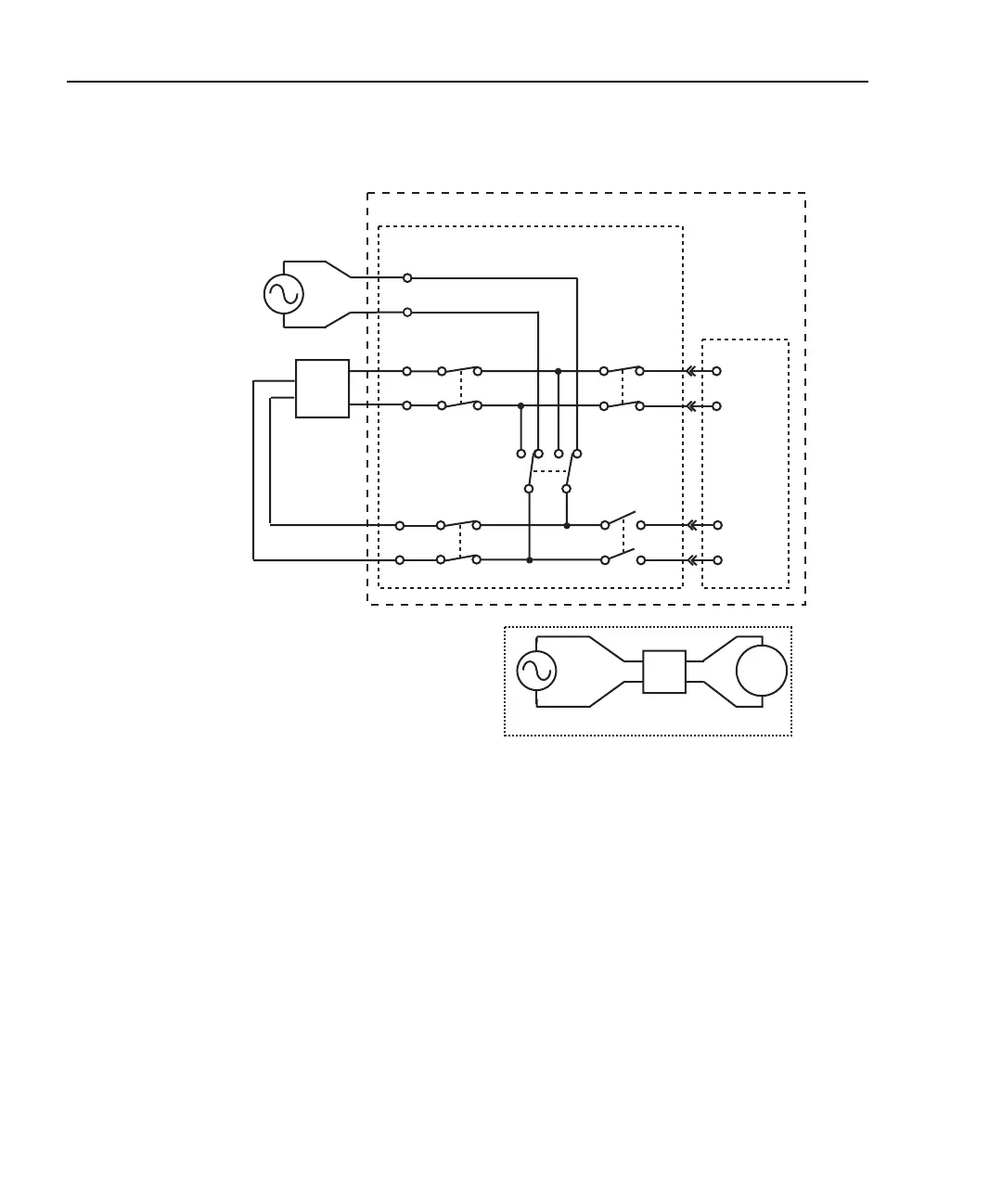

Figure 2-10
Testing DUT 1
Test procedure:
NOTES The following test procedure assumes a Model 7700 switching module installed
in slot 1 of the mainframe.
The procedure assumes that the instrument is operating in the continuous
measurement (triggering) mode (see “Defaults and user setups,” page 1-22).
Do not use the following procedure to perform thermocouple temperature
measurements with the INTernal or EXTernal reference junction selected. The
SIMulated reference junction will instead be used resulting in invalid readings.
The “ERR” annunciator will turn on to indicate that the integrity of the
temperature reading is questionable.
DMM
Model 7700 Switching Module
Model 2701
Slot 1
Equivalent Circuit
DUT
1
Ch 23
(Closed)
HI
LO
HI
LO
HI
LO
HI
LO
HI
LO
DMM
Mutliple channel operation:
Open channels
Close channel 123
Close channel 125
Close channel 101
Close channel 111
DUT
1
External
Source
External
Source
Input
Ch 25
Ch 1
Sense
Ch 24
Ch 11
Sense

Keithley 2701 Specifications

General

Max Voltage	300 V
Max Current	3 A
Frequency Range	3 Hz to 500 kHz
Frequency Accuracy	0.01%
Weight	3.6 kg
Measurement Functions	Frequency, Temperature
Interface	IEEE-488 (GPIB), RS-232
DC Voltage Range	300 V
DC Current Range	3 A
AC Voltage Range	300V
AC Current Range	1 μA to 3 A
Resistance Accuracy	0.01%
Channels	10
Dimensions	213mm x 88mm x 370mm
