Model 2701 User’s Manual Status Structure 11-13
Operation event register
The bits of the Operation Event Register (Figure 11-5) are described as follows:
• Bits B0 through B3 — Not used.
• Bit B4, Measuring (Meas) — Set bit indicates that the instrument is performing a
measurement.
• Bit B5, Waiting for Trigger (Trig) — Set bit indicates that the Model 2701 is in
the trigger layer waiting for a trigger event to occur.
• Bits B6 and B7 — Not used.
• Bits B8, Filter Settled (Filt) — Set bit indicates that the filter has settled or the
filter is disabled.
• Bit B9 — Not used.
• Bit B10, Idle State (Idle) — Set bit indicates the Model 2701 is in the idle state.
• Bits B11 through B15 — Not used.

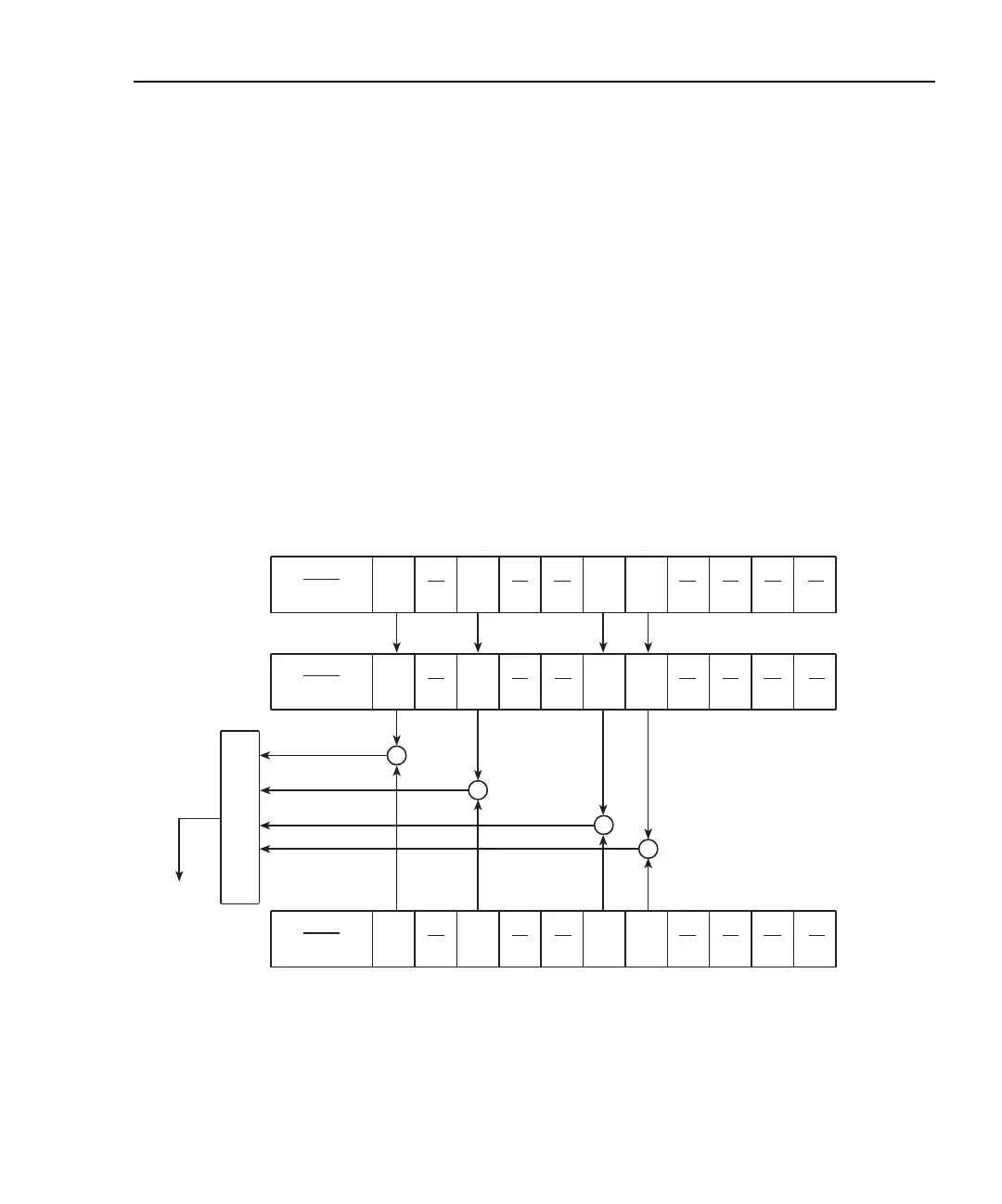

Figure 11-5
Operation event status
OR
Idle = Idle state
Filt = Filter Settled or Disabled
Trig = Triggering
Meas = Measuring
& = Logical AND
OR = Logical OR
(B15 - B11)
Idle
(B10) (B9)
Filt
(B8) (B7) (B6)
Trig
(B5)
Meas
(B4) (B3) (B2) (B1) (B0)
(B15 - B11)
Idle
(B10) (B9) (B8) (B7) (B6)
Trig
(B5)
Meas
(B4) (B3) (B2) (B1) (B0)
Operation
Event
Enable
Register
To
Operation
Summary
Bit (OSB) of
Status Byte
Register.
(B15 - B11)
Idle
(B10) (B9)
Filt
(B8) (B7) (B6)
Trig
(B5)
Meas
(B4) (B3) (B2) (B1) (B0)
Operation
Condition
Register
Filt
&
&
&
&
Operation
Event
Register

Keithley 2701 Specifications

General

Max Voltage	300 V
Max Current	3 A
Frequency Range	3 Hz to 500 kHz
Frequency Accuracy	0.01%
Weight	3.6 kg
Measurement Functions	Frequency, Temperature
Interface	IEEE-488 (GPIB), RS-232
DC Voltage Range	300 V
DC Current Range	3 A
AC Voltage Range	300V
AC Current Range	1 μA to 3 A
Resistance Accuracy	0.01%
Channels	10
Dimensions	213mm x 88mm x 370mm
