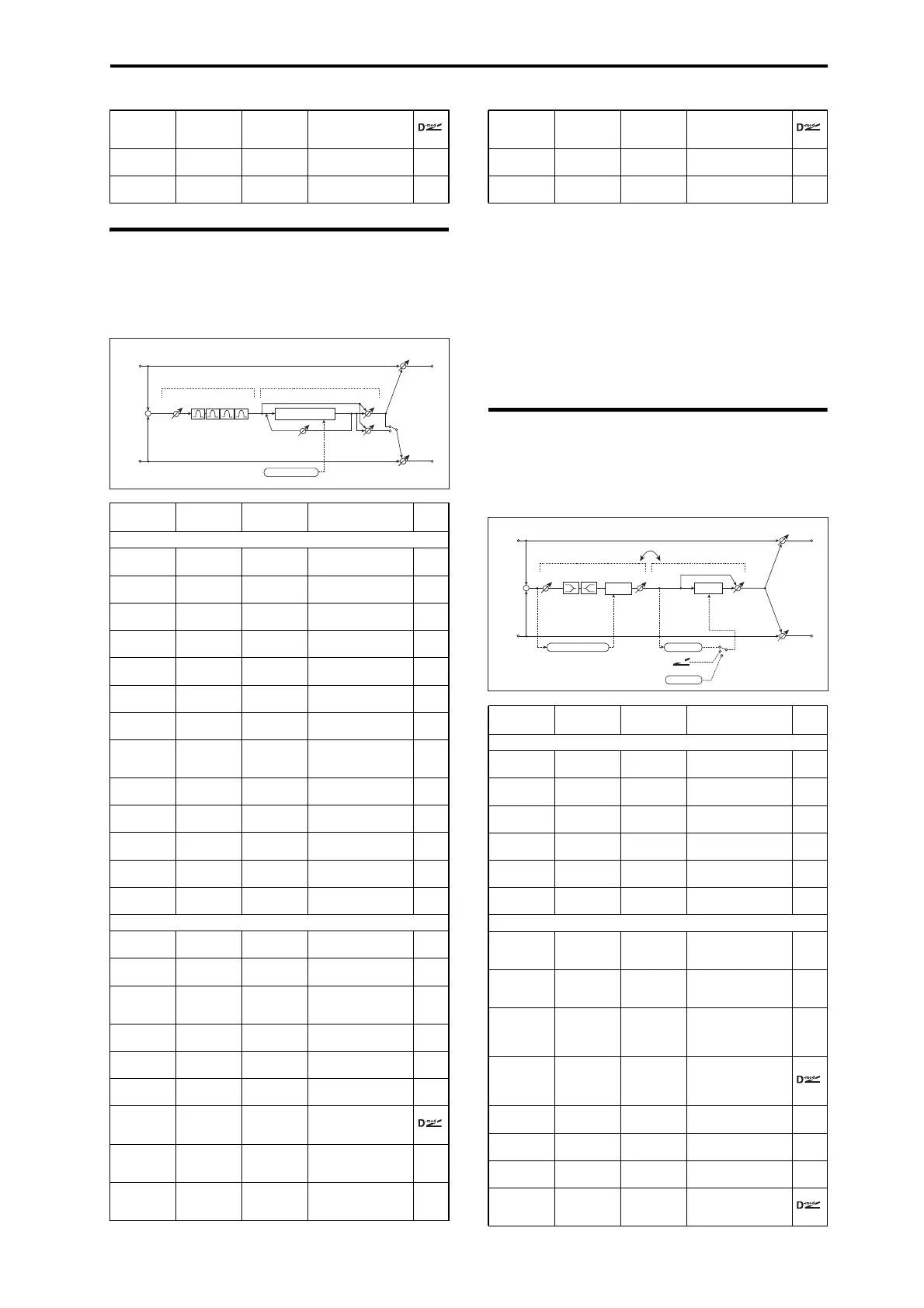

Korg PS60 Parameter Guide

IFX (Insert effects) List 045: P4EQ-Phaser (Parametric 4-Band EQ - Phaser)
107
045: P4EQ-Phaser (Parametric 4-
Band EQ - Phaser)
Thiseffectcombinesamonofour‐bandparametricequalizer
andaphaser.
Output Mode
Routing
WhenWetInvertisselected,therightchannelphaseofthe
chorus/flangereffectsoundisinverted.Thiscreatespseudo‐
stereoeffectsandaddsspread.
However,ifamono‐inputtypeeffectisconnectedafterthis
effect,theleftandrightsoundsmaycanceleachother,
eliminatingthechorus/flangereffects.
When“Routing”issettoFlanger→Comp,“OutputMode”
willbesettoNormal.
046: Comp-Wah (Compressor -
Wah/Auto Wah)
Thiseffectcombinesamonocompressorandawah.Youcan
changetheorderoftheconnection.
Wet/Dry ←
Dry,1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amount –100...+100
Sets the modulation
amount for Wet/Dry
Full
parameter
Quick
parameter
Value Explanation
Parametric 4-Band EQ
Trim E Trim 0...100
Sets the parametric
EQ input level
Band1 Cutoff
[Hz]
E1 F[Hz] 20...1.00k
Sets the center
frequency of Band 1
Band1 Q E1 Q 0.5...10.0
Sets the bandwidth of
Band 1 p.87
Band1
Gain [dB]
E1 G[dB] –18...+18
Sets the gain of Band 1
BandCutoff
[Hz]
E2 F[Hz] 50...5.00k
Sets the center
frequency of Band 2
Band2 Q E2 Q 0.5...10.0
Sets the bandwidth of
Band 2 p.87
Band2
Gain [dB]
E2 G[dB] –18...+18
Sets the gain of Band 2
Band3
Cutoff [Hz] E3 F[Hz] 300...10.00k
Sets the center
frequency of Band 3
Band3 Q E3 Q 0.5...10.0
Sets the bandwidth of
Band 3 p.87
Band3
Gain [dB]
E3 G[dB] –18...+18
Sets the gain of Band 3
Band4
Cutoff [Hz]
E4 F[Hz] 500...20.00k
Sets the center
frequency of Band 4
Band4 Q E4 Q 0.5...10.0
Sets the bandwidth of
Band 4 p.87
Band4
Gain [dB]
E4 G[dB] –18...+18
Sets the gain of Band 4
Phaser
LFO Freq
[Hz]
P LFO [Hz] 0.02...20.00
Sets the speed of the
LFO
LFO
Waveform
Triangle,
Sine
Selects the LFO
Waveform
Manual P Manual 0...100
Sets the frequency
where the effect is
applied
Depth P Depth 0...100
Sets the depth of LFO
modulation
Resonance P Reso –100...+100
Sets the resonance
amount p.99
Output
Mode
P Out
Normal,
Wet Invert
Selects the phaser
output mode p.107
[Phs]Wet/
Dry
P W/D
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the phaser effect
balance p.91, p.99
[Phs]Source Off...Tempo
Selects the Wet/Dry
modulation source
for the phaser
[Phs]Amount –100...+100
Sets the Wet/Dry
modulation amount
for the phaser
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amount –100...+100
Sets the modulation
amount for Wet/Dry
Full
parameter
Quick
parameter
Value Explanation
Compressor
Pre EQ Trim 0...100
Sets the EQ input
level
LEQ Gain
[dB]
–15...+15
Sets the gain of Low
EQ
HEQ Gain
[dB]
–15...+15
Sets the gain of High
EQ
Sensitivity C Sens 1...100
Sets the sensitivity
p.83
Attack C Attack 1...100
Sets the attack level
p.83
Level C OutLevel 0...100
Sets the compressor
output level p.83
Wah
Frequency
Bottom
W Freq Btm 0...100
Sets the lower limit of
the wah center
frequency p.89
Frequency
Top
W Freq Top 0...100
Sets the upper limit of
the wah center
frequency p.89
Sweep Mode W Sweep
Auto,
D-mod,
LFO
Selects the control
from auto-wah,
modulation source,
and LFO
Source Src Off...Tempo
Selects the
modulation source
for the wah when
Sweep Mode=D-mod
LFO Freq
[Hz]
W LFO[Hz] 0.02...20.00
Sets the speed of the
LFO
Resonance W Reso 0...100
Sets the resonance
amount
LPF Off, On
Switches the wah low
pass filter on and off
[W]Wet/Dry W W/D
Dry,
1 : 99...99 : 1,
Wet
Sets the wah effect
balance
Left
Right
Wet / Dry
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Comp
