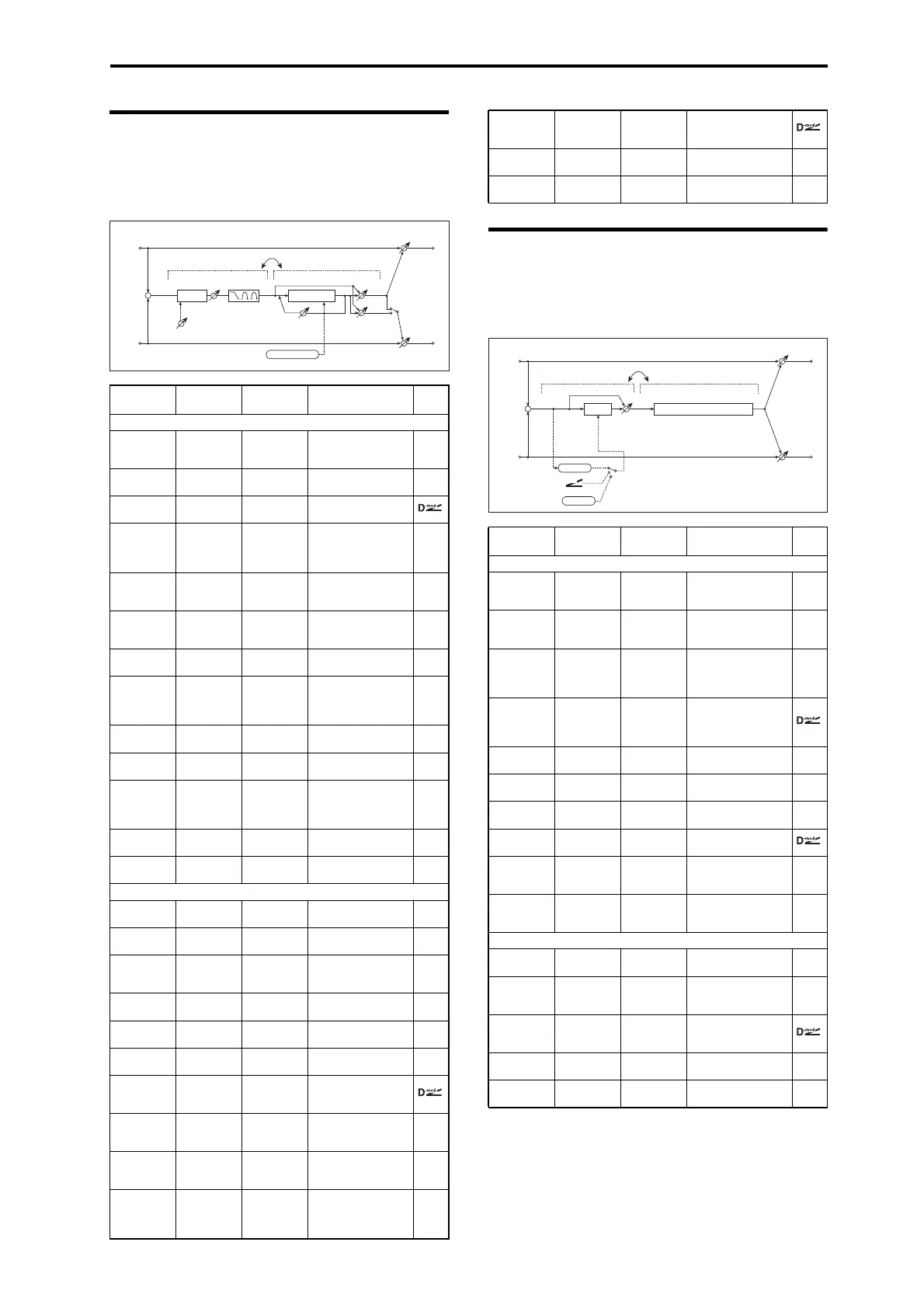

IFX (Insert effects) List 058: Wah-Amp (Wah - Amp Simulation)
113
057: OD-Phsr (Overdrive/Hi.Gain -
Phaser)
Thiseffectcombinesamonooverdrive/high‐gaindistortion
andaphaser.Youcanchangetheorderoftheeffects.
058: Wah-Amp (Wah - Amp
Simulation)
Thiseffectcombinesamonowahandanampsimulation.
Youcanchangetheorderoftheeffects.
Full
parameter
Quick
parameter
Value Explanation
Overdrive/Hi-Gain
Drive Mode O Mode
Overdrive,
Hi-Gain
Switches between
overdrive and high-
gain distortion
Drive O Drive 1...100
Sets the degree of
distortion p.95
Level O Out Level 0...50
Sets the overdrive
output level p.95
Source Off...Tempo
Selects the
modulation source
for the overdrive
output level
Amount –50...+50
Sets the modulation
amount of the
overdrive output level
Low Cutoff
[Hz]
20...1.00k
Sets the center
frequency for Low EQ
(shelving type)
Low Gain
[dB]
O Low [dB] –18...+18
Sets the gain of Low
EQ
Mid1 Cutoff
[Hz]
300...10.00k
Sets the center
frequency for Mid/
High EQ 1 (peaking
type)
Mid1 Q 0.5...10.0
Sets the band width
of Mid/High EQ 1 p.87
Mid1 Gain
[dB]
O Mid1 [dB] –18...+18
Sets the gain of Mid/
High EQ 1
Mid2 Cutoff
[Hz]
500...20.00k
Sets the center
frequency for Mid/
High EQ 2 (peaking
type)
Mid2 Q 0.5...10.0
Sets the band width
of Mid/High EQ 2 p.87
Mid2 Gain
[dB]
O Mid2 [dB] –18...+18
Sets the gain of Mid/
High EQ 2
Phaser
LFO
Waveform
Triangle,
Sine
Selects the LFO
Waveform
LFO Freq
[Hz]
P LFO [Hz] 0.02...20.00
Sets the speed of the
LFO
Manual P Manual 0...100
Sets the frequency
where the effect is
applied
Depth P Depth 0...100
Sets the depth of LFO
modulation
Resonance P Reso –100...+100
Sets the resonance
amount p.99
Output
Mode
P Out
Normal,
Wet Invert
Selects the phaser
output mode p.107
[Phs] Wet/
Dry
P W/D
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the phaser effect
bal
ance p.91, p.99
[Phs] Source Off...Tempo
Selects the Wet/Dry
modulation source
for the phaser
[Phs]
Amount
–100...+100
Sets the Wet/Dry
modulation amount
for the phaser
Routing ←
OD/HG →
Phaser,
Phaser →
OD/HG
Switches the order of
the overdrive and
phaser p.107
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amount –100...+100
Sets the modulation
amount for Wet/Dry
Full
parameter
Quick
parameter
Value Explanation
Wah
Frequency
Bottom
W Freq Btm 0...100
Sets the lower limit of
the wah center
frequency p.89
Frequency
Top
W Freq Top 0...100
Sets the upper limit of
the wah center
frequency p.89
Sweep Mode W Sweep
Auto,
D-mod,
LFO
Selects the control
from auto-wah,
modulation source,
and LFO p.89
Source Src Off...Tempo
Selects the
modulation source
for the wah when
Sweep Mode=D-mod
LFO Freq
[Hz]
W LFO[Hz] 0.02...20.00
Sets the speed of the
LFO
Resonance W Reso 0...100
Sets the resonance
amount
LPF Off, On
Switches the wah low
pass filter on and off
Wet/Dry W W/D
Dry, 1 : 99...
99 : 1, Wet
Sets the wah effect
balance
Source Off...Tempo
Selects the Wet/Dry
modulation source
for the wah
Amount –100...+100
Sets the Wet/Dry
modulation amount
for the wah
Amp Simulation
Amp Type A Amp Type SS, EL84, 6L6
Selects the type of
guitar amplifier
Routing Route
Wah → Amp,
Amp → Wah
Switches the order of
the wah and amp
simulation
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amount –100...+100
Sets the modulation
amount for Wet/Dry
Wet / Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Amp Simulation
Amp Simulation Filter
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
