Effect Guide
108

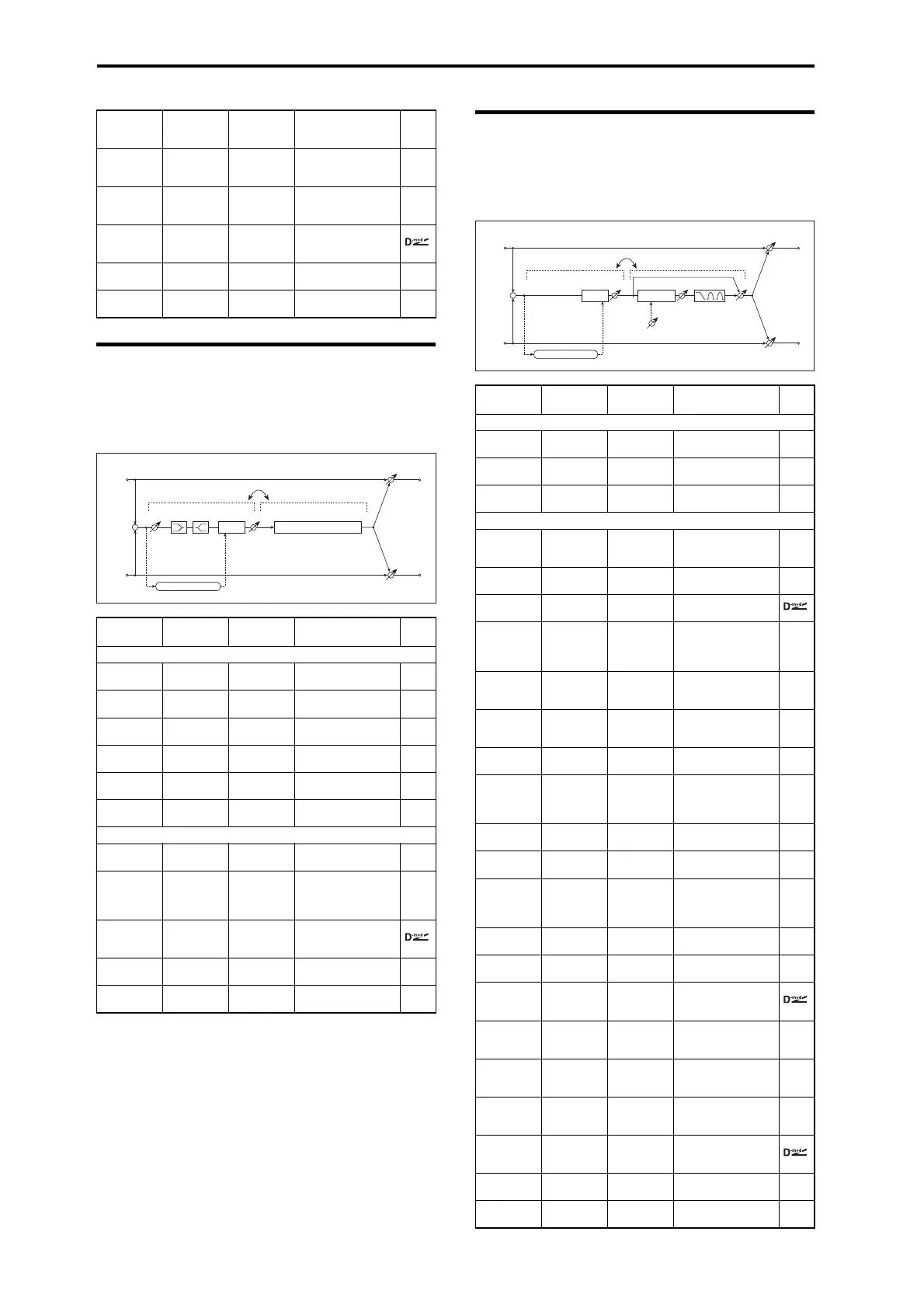

047: Comp-Amp (Compressor -
Amp Simulation)
Thiseffectcombinesamonocompressorandanamp
simulation.Youcanchangetheorderoftheef fects.
048: Comp-OD (Compressor -
Overdrive/Hi.Gain)
Thiseffectcombinesamonocompressorandanoverdrive/
high‐gaindistortion.Youcanchangetheorderoftheeffects.
[W]Source Off...Tempo
Selects the Wet/Dry
modulation source
for the wah
[W]Amount –100...+100
Sets the Wet/Dry
modulation amount
for the wah
Routing Route
Comp
↓
Wah,
Wah
→
Comp
Switches the order of
the compressor and
wah
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amount –100...+100
Sets the modulation
amount for Wet/Dry
Full
parameter
Quick
parameter
Value Explanation
Compressor
Sensitivity C Sens 1...100
Sets the sensitivity
p.83
Attack C Attack 1...100
Sets the attack level
p.83
Level C Level 0...100
Sets the compressor
output level p.83
Pre EQ Trim 0...100
Sets the EQ input
level
LEQ Gain
[dB]
–15...+15
Sets the gain of Low
EQ
HEQ Gain
[dB]
–15...+15
Sets the gain of High
EQ
Amp Simulation
Amp Type A Amp Type SS, EL84, 6L6
Selects the type of
guitar amplifier
Routing Route
Comp →
Amp,
Amp
→
Comp
Switches the order of
the compressor and
amp simulation
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Amp Simulation
Amp Simulation Filter
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Comp
Full
parameter
Quick
parameter
Value Explanation
Compressor
Sensitivity C Sens 1...100
Sets the sensitivity
p.83
Attack C Attack 1...100
Sets the attack level
p.83
Level C Level 0...100
Sets the compressor
output level p.83
Overdrive/Hi-Gain
Drive Mode O Mode
Overdrive,
Hi-Gain
Switches between
overdrive and high-
gain distortion
Drive O Drive 1...100
Sets the degree of
distortion p.95
Level O Out Level 0...50
Sets the overdrive
output level p.95
Source Off...Tempo
Selects the
modulation source
for the overdrive
output level
Amount –50...+50
Sets the modulation
amount of the
overdrive output level
Low Cutoff
[Hz]
20...1.00k
Sets the center
frequency for Low EQ
(shelving type)
Low Gain
[dB]
O Low [dB] –18...+18
Sets the gain of Low
EQ
Mid1 Cutoff
[Hz]
300...10.00k
Sets the center
frequency for Mid/
High EQ 1 (peaking
type)
Mid1 Q 0.5...10.0
Sets the band width
of Mid/High EQ 1 p.87
Mid1 Gain
[dB]
O Mid1 [dB] –18...+18
Sets the gain of Mid/
High EQ 1
[O]Mid2
Cutoff [Hz]
500...20.00k
Sets the center
frequency for Mid/
High EQ 2 (peaking
type)
Mid2 Q 0.5...10.0
Sets the band width
of Mid/High EQ 2 p.87
Mid2 Gain
[dB]
O Mid2 [dB] –18...+18
Sets the gain of Mid/
High EQ 2
[O]Wet/Dry
Dry,
1 : 99...99 : 1,
Wet
Sets the overdrive
effect balance
[O]Source Off...Tempo
Selects the Wet/Dry
modulation source
for the overdrive
[O]Amount –100...+100
Sets the Wet/Dry
modulation amount
for the overdrive
Routing Route
Comp →
OD/HG, OD/
HG → Comp
Switches the order of
the compressor and
overdrive
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Source Off...Tempo
Selects a modulation
sour
ce for Wet/Dry
Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Compressor
Output Level
Envelope - Control
Comp
Wet / Dry
