MFX/EQ (Master Effect/EQ) MFX&EQ Routing
11

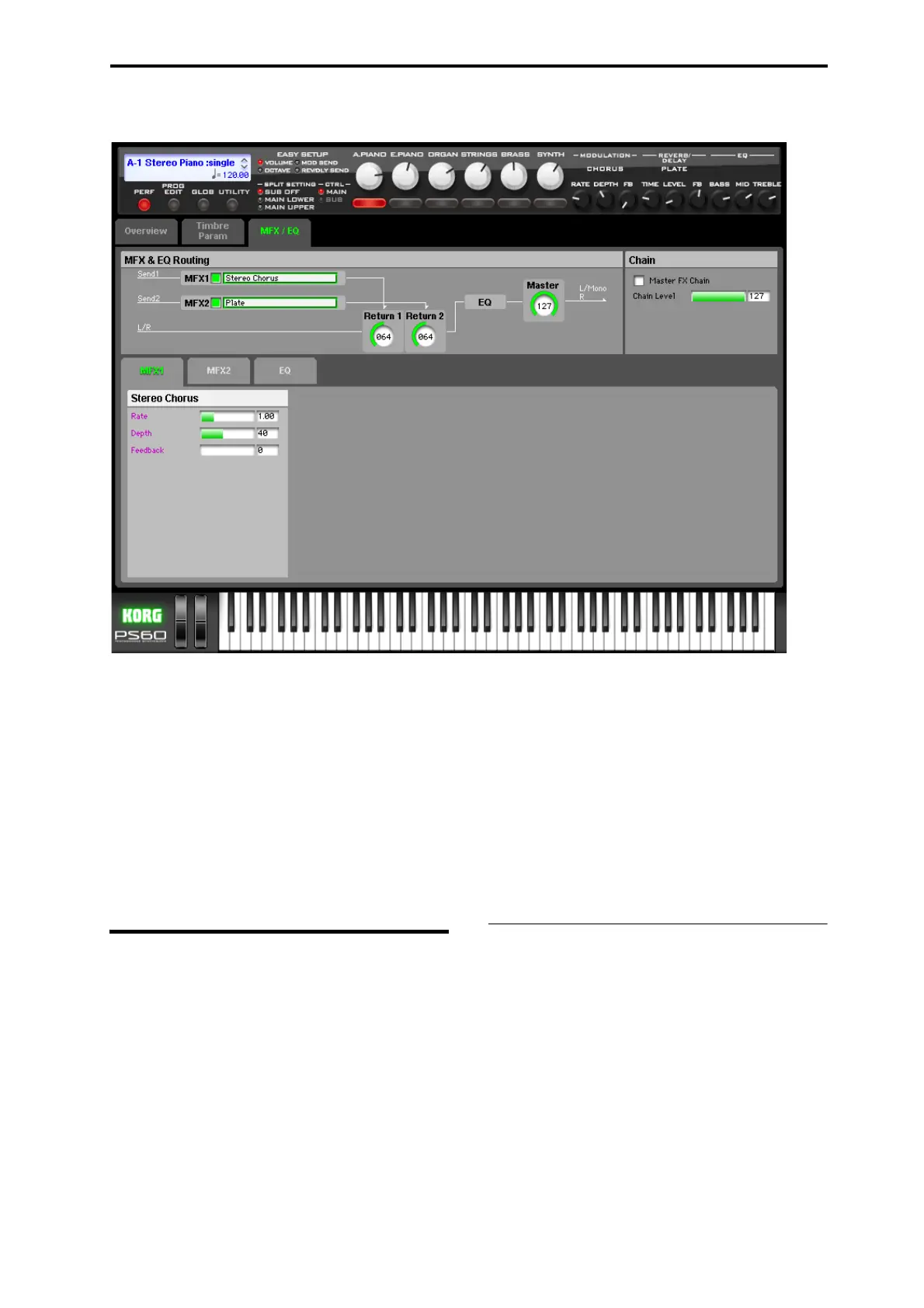

MFX/EQ (Master Effect/EQ)
Onthispageyoucanadjustthesettingsforthemaster
effects.Thesesettingsconsistmainlyofthefollowing.
•Specifytheroutingforthemastereffects.
• Selecttheeffecttypeforthemastereffects,andeditthe
effectparameters.
•Turneacheffecton/off.
•EditthereturnleveltotheL/Rbusforthema
stereffect
outputs.
TheIFXandMFX/EQtabpagesallowyoutoeditallofthe
effectparametersthatcannotbeeditedfromthePS60itself.
Parameternamesshowninpurplearetheeffectparameters
thatcanbeeditedfromthePS60.
MFX&EQ Routing
MFX1, MFX2:
Themastereffectsdonotoutputanydirect(Dry)sound.
ThereturnlevelsettingsʺReturn1ʺandʺReturn2ʺadjust
theamountofeffectsound(Wet)thatisreturnedtotheL/R
busandmixedwiththeL/Rbussignal.
Themastereffectinput/outputisstereo‐in/stereo‐out,but
theoutputmaybemonauraldependingonthetypeofeffect
youselect.
On/Off [Off, On]
()“MFX1On/Off”onpage 4)
MFX1 [No Effect, Stereo Chorus, Stereo Flanger,
Vintage Cho/Flg, Stereo Phaser]
MFX2 [No Effect, Hall, Plate, Room, Delay]
Theseselecttheeffecttypeforeachmastereffect(pages117,
119).Clicktheeffecttype,andchoosefromthelistthat
appears.
IfyouchooseNoEffect,theoutputfromthemastereffect
willbemuted.
Return 1 [000...127]
Return 2 [000...127]
Thesespecifiesthereturnlevelfromthemastereffecttothe
L/Rbus(afterwhichitpassesthroughEQ,andissentfrom
OUTPUTL/MONO andR).
Chain
Mastern FX Chain [Off, On]
On:Mastereffects1and2willbeconnectedinseries,inthe
orderofmastereffect1→ mastereffect2.
Chain Level [000...127]
WhenchainisOn,thissetsthelevelatwhichthesoundis
sentfromthefirstmastereffecttothenextmastereffect.
