LeeBoy 6150 - Main Harness (5 of 8)

MAIN HARNESS (5 OF 8)

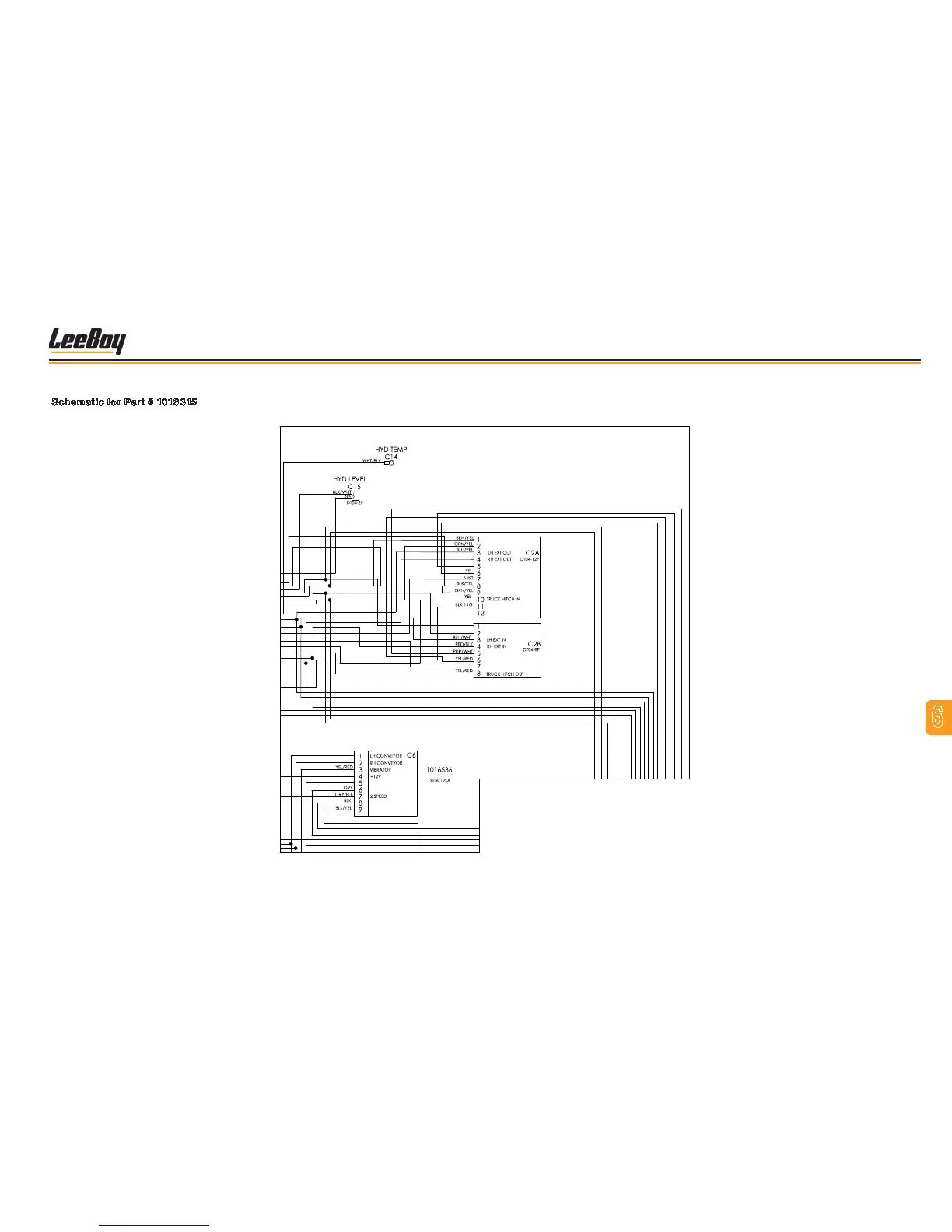

Schematic for Part # 1016315
Figure 6-5. Main Harness (5 of 8)
SCREED LIFT
SCREED FLOAT
LH SLOPE DN
LH SLOPE UP
RH SLOPE DN
RH SLOPE UP
LH CUTOFF CLOSE
LH CUTOFF OPEN
RH CUTOFF CLOSE
RH CUTOFF OPEN
HOPPER OUT
HOPPER IN
GROUND
PUR
BRN
ORN
LT BLU
GRN
LH AUGER
RH AUGER
GROUND
BRN
BLU
GRN
LOWER
MANIFOLD
UPPER
MANIFOLD
AC DETECTOR
RED
4
