3-10 Leeboy 6150 Conveyor Paver
Component Location
Remote Screed Controls
A remote screed extension control box is mounted on
each side of the paver for screed operator convenience
(right side control box shown).
1
3
2
4
5

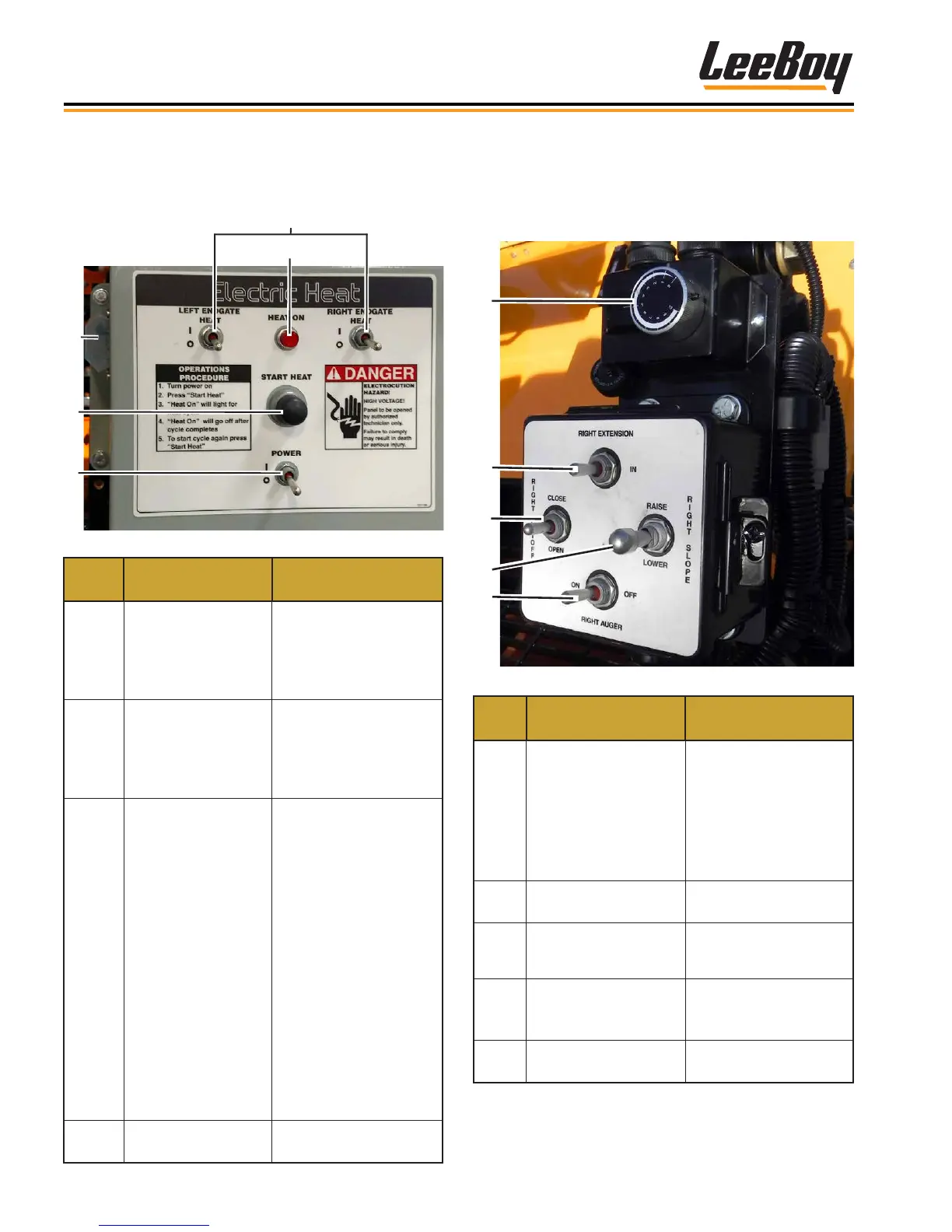

Figure 3-7. Right Screed Control Box
ITEM
NO.
CONTROL NAME FUNCTION
1 Automatic Auger Dial
Controls auger height
of the material in the
endgate. The auger
switch must be turned on
to AUTO and the sonic
auger sensor installed
for the auger dials to
function.
2
Right or Left Screed
Extension
Extends and retracts
screed extension.
3 Right or Left Cut-Offs
Opens and closes the
Under Auger Material
Cut-Offs.
4 Slope Raise/Lower
OPTION: Raises and
lowers the asphalt
slope.
5 Auger
Turns auger on and
off.
Electric Heat Controls
(Option)
2
3
1
5
4
Figure 3-6. Electric Heat Controls
ITEM
NO.
CONTROL NAME FUNCTION
1
Left and Right
Endgate Switches
OPTION: These
switches do not
function if not equipped
with Heated Endgate
Option. (Page 4-?)
2 Heat On Light
Illuminates and stays
on as long as the
element is heating the
screed plates (approxi-
mately 20 minutes).
3 Start Heat Button
After turning on the
power, press the Start
Heat button. Once
the heating function
has been enabled, the
distribution/control
box will apply electrical
power to the heating
elements and the heat-
ing cycle will begin.
The heating cycle is
timed to optimize the
heat generated at the
screed plates. Press
the button again to
reheat the screed if
needed.
4 Power Switch
Turns the electric heat
system on and off.
