4-34 LeeBoy 6150 Conveyor Paver
Operation
Tie-Down Procedure
1. Position paver in center of the trailer.
2. Attach chains to the front tie-down hole and the rear
D-Rings. (Figure 4-71).
3. Place chocks at wheels or tracks.
4. Attach tie-down chains to rear truck bed and the
paver D-Rings on main screed.
5. Ensure that all chains are tightly secured before
transporting the paver.
Tie-Down
Hole
D-
Ring

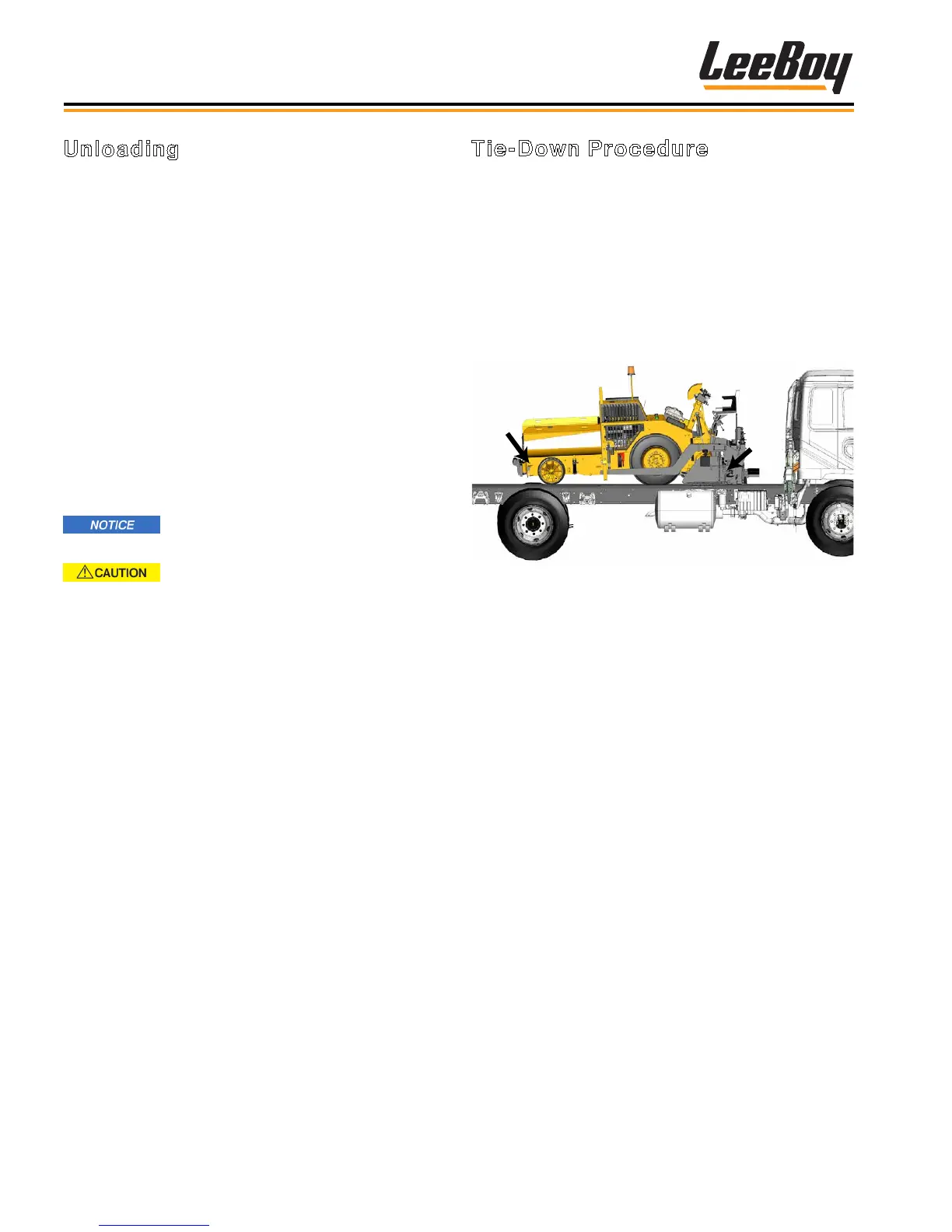

Figure 4-71. Tie-Down Locations
Unloading
1. Remove tie-down equipment.
2. Start and warm up engine.
3. Set throttle at half the operating RPMs, but enough
to ensure the hydraulic pump is providing sufcient
ow to operate all functions properly.
4. Set steering control lever so paver moves very
slowly.
5. BEFORE moving the machine, ensure:
• The screed position is UP.
• Auger extensions are removed.
• The extendible screed is IN.
• The cut-off gates below the augers are
CLOSED.
6. Move paver forward down the ramp.
Never move the paver in reverse while
the cut-off gates are open.
DO NOT allow the screed to strike the
ramp as this can damage bearings on the thickness
control screws or welds on the leveling arms. A
longer ramp to reduce the loading angle may be
needed.
