LeeBoy 6150 Conveyor Paver 4-3
Operation
General Information
The LeeBoy Model 6150 Conveyor Paver is a wheeled
paver with the versatility for “patch paving” along with a
variety of roadway and asphalt construction projects.
Steering wheel controls on the operator station on each
side of the paver, with a main control panel that slides
to either side, offers ease of operation. Pivot steering
and positive traction systems add turning radius
maneuverability or increased traction when needed.
This paver features a hopper than can hold up to 7 tons
of asphalt material, and is equipped with propane or the
optional electric screed heat. Hydraulic screed exten-
sions allow paving widths up to 15 feet (4.5 meters).
Read this manual carefully before
operating the machine. Only authorized personnel
who are properly trained should operate the LeeBoy
Model 6150 Conveyor Paver.
Receiving the Machine
Although the machine has been checked thoroughly by
the manufacturer, road hazards or other factors during
transport may result in damage. Be sure to check the
machine thoroughly before operating it:
1. Check engine oil. (Page 5-13)
2. Check hydraulic uid level. (Page 5-16)
3. Check machine hoses for any damage or leaks.
4. Inspect machine for any damage during transport.
Contact your authorized dealer immediately if any
damage has occurred.
Initial and Daily Inspection
The following inspection is essential and should be
performed before the initial start-up. Visually inspect the
unit to check its general condition and for familiarization.
Continue with a check of the systems and components
shown in Table 4-1 below:
Table 4-1. Initial Inspection
INSPECT PROCEDURE
Engine Oil
Level
Maintain oil level between ADD and
FULL marks on dipstick.
Fuel Tank
Check for adequate fuel supply. Fill if
needed. Always ll tank at end of the day
to prevent condensation in the tank.
Hydraulic
Tank
Check the tank for oil level and leaks.
Radiator Check coolant level.
Battery
Ensure all cables are tight and clean.
Check for corrosion on the battery
terminals.
Air Cleaner
Check the air lter element and hose
connections. Air cleaner has both a
primary and secondary lter.
Drain Plugs Make sure plugs are inserted and tight.
Engine Belt Check for proper belt tension.
Grease
Fittings
Ensure ttings are greased and in good
working order.

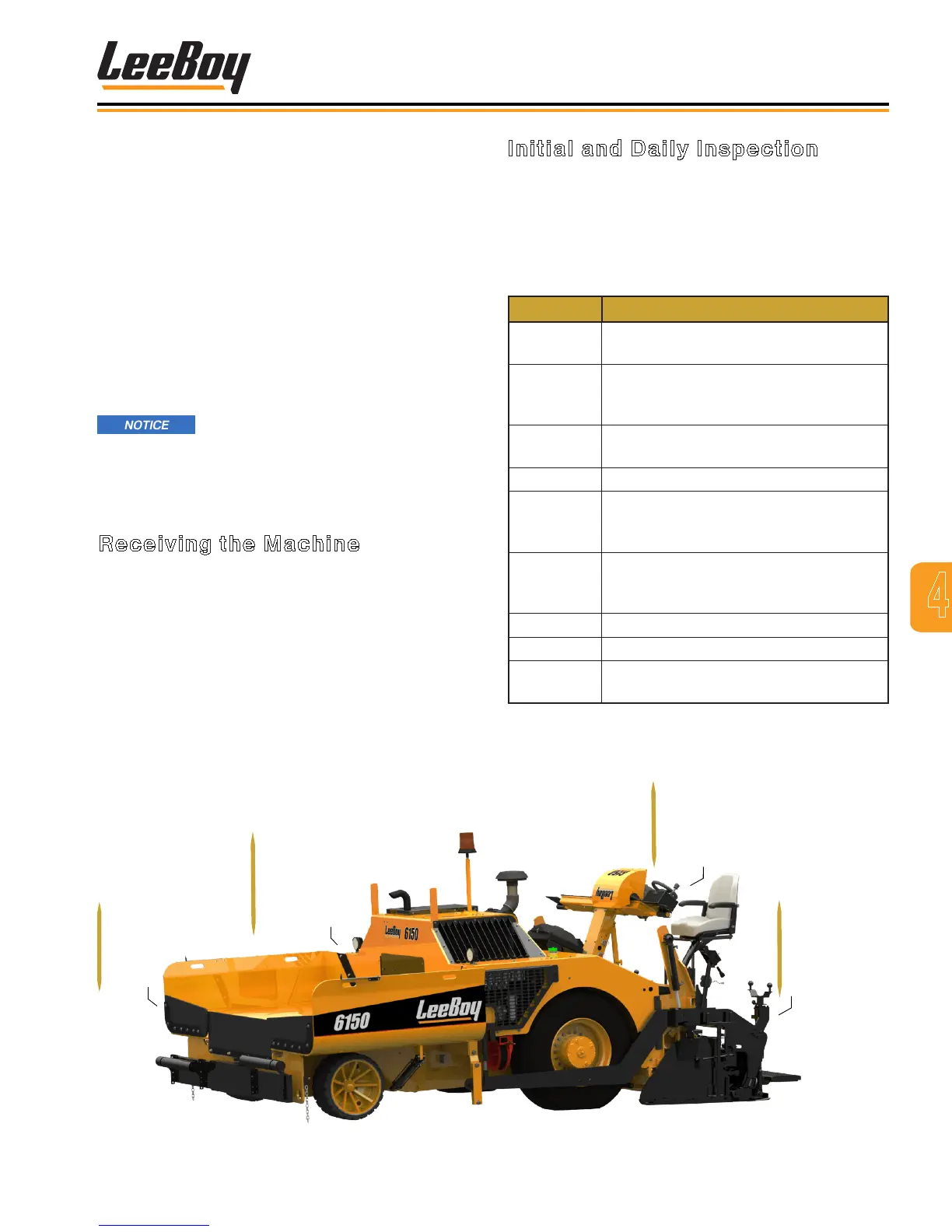

Hopper
Fully extends
to hold 7 tons
of asphalt
material.
•
Dual
Conveyors
Moves asphalt
material to the
rotating augers.
•
Stations
Steering wheel controls,
main control panel slides
to either side.
•
Screed
Extensions
Extends paving
width up to 15 feet.
Hydraulic controls.
•
