LeeBoy 6150 Conveyor Paver 4-35
Operation
815HD (Heavy Duty) Screed
The Legend 815HD Screed option offers numerous
features for paving professionals and is equipped with
replaceable, heavy-duty wear plates. Dual vibrators,
heavy-duty ight screws, heavy-duty crown-and-valley
mechanism, and a 3-Adjuster AOA with vertical height
adjustment for even more screed control.
If equipped with this option, the two covered adjust-
ers on each extension (one on each side of the AOA
adjuster) are for vertical adjustment. (Figure 4-72) The
vertical adjusters are preset by the manufacturer and
should not need adjustment. Follow the same proce-
dures for the AOA adjustment.
AOA
Adjuster
Vertical
Adjusters

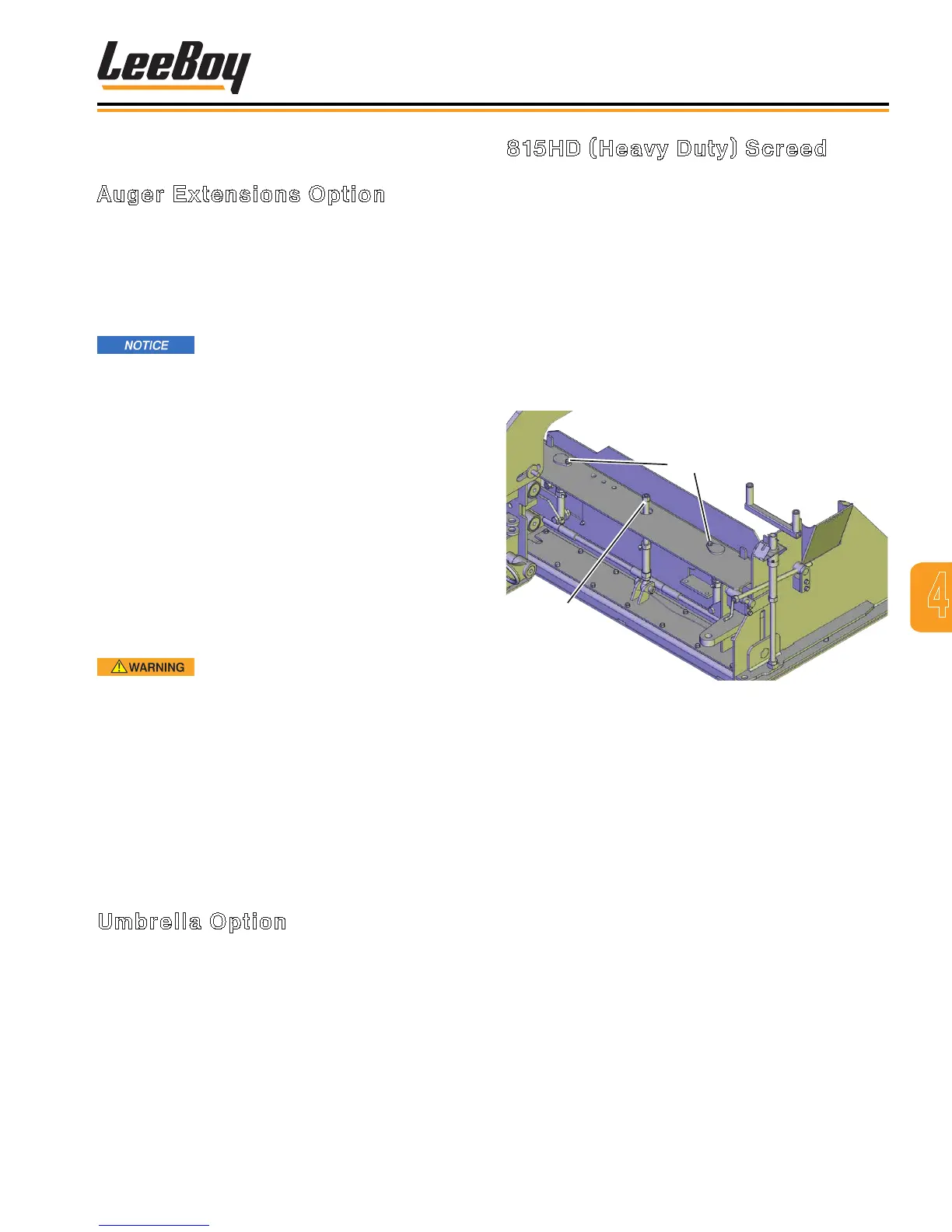

Figure 4-72. 815HD Screed Extension Double
Adjustment
Optional Components
Auger Extensions Option
The auger extensions should be attached to the main
auger to increase the ow of asphalt to the endgates
and screed extensions when paving at wider widths.
This makes it possible to lay asphalt at a higher rate.
Auger extension options are 12-inch extensions for each
side or 24-inch extensions with shields for each side.
Left and right auger extension covers
or shields must be installed on the correct side of the
machine.
To attach the auger extensions proceed as follows:
1. Identify the right and left auger extensions by
observing the left or right on the end of the auger
extension shaft.
2. After identifying the right and left auger extensions,
extend the screed extension fully as follows:
• Set the left and right auger switches to the OFF
position.
• Set the left and right extension switches to the
OUT position and extend fully.
3. Shut off engine.
Serious injury can result when
attaching extensions if the engine is running.
4. Remove bolt, nut cap on end of main auger.
5. Attach the correct side auger extension to the main
auger with hardware just removed.
6. Secure end of auger extension to main auger.
7. Install guard. Make sure auger extension is running
at.
8. Repeat this procedure for opposite side.
Umbrella Option
The umbrella kit option provides shelter from sun and
other weather conditions for the operator. The umbrella
kit assembly includes the mounting bracket and umbrel-
la frame assembly that can be mounted on either side of
the screed handle.
