LeeBoy 6150 - C3 Dash to Pedestal Jumper Harness

C3 DASH TO PEDESTAL JUMPER HARNESS

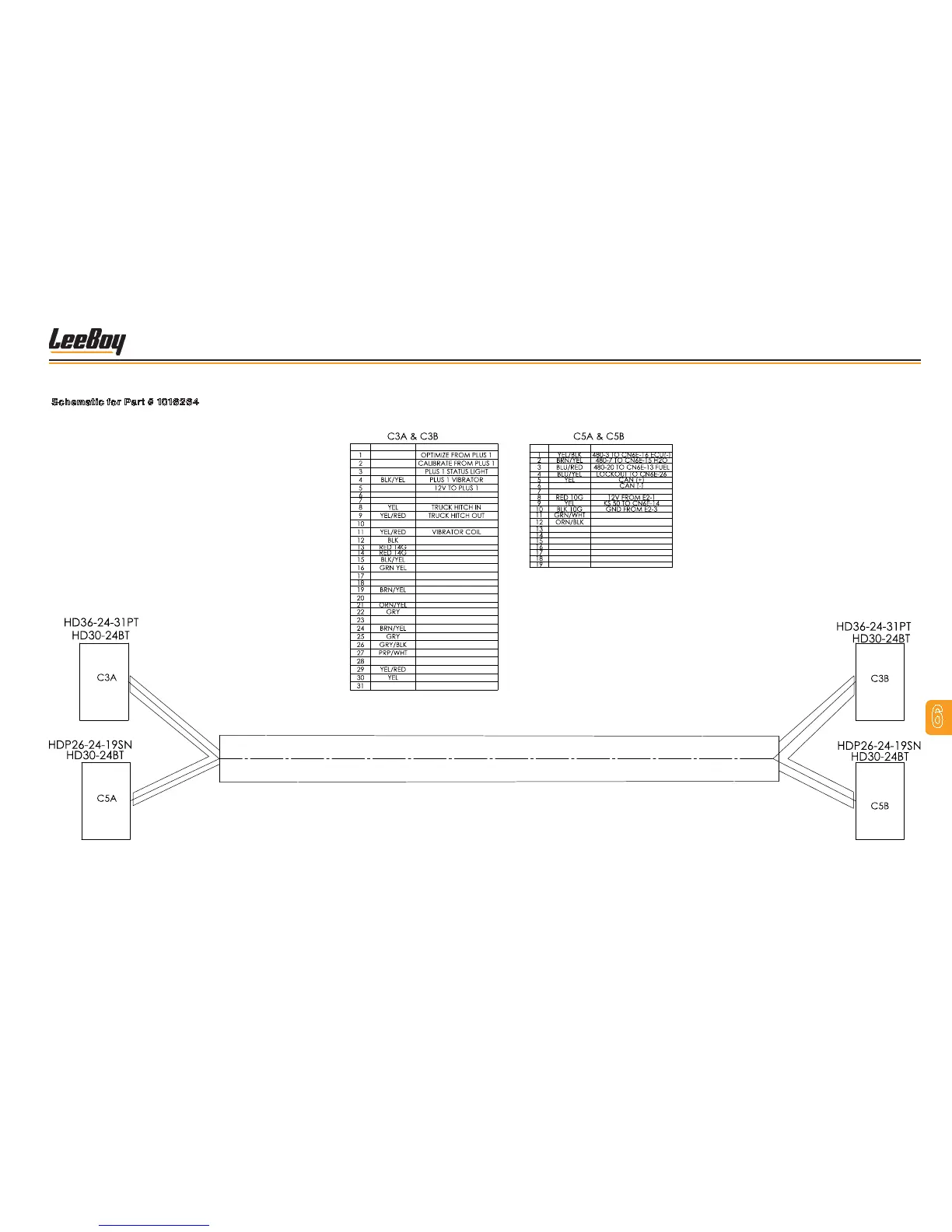

Schematic for Part # 1016264
Figure 6-13. C3 Dash to Pedestal Jumper Harness
PIN COLOR FUNCTION
WHT
WHT
WHT
RED
WHT ENGINE ENABLE
BLU GENERATOR ON INPUT
WHT HORN
TOPCON GROUND
LH SCREED POWER
RH SCREED POWER
SCREED LIFT
SCREED FLOAT
RED TOPCON POWER
BRN LH CUTOFF OPEN
LH CUTOFF CLOSE
ORN RH CUTOFF OPEN
RH CUTOFF CLOSE
RH PILE HEIGHT OUT
BRN LH AUGER MAN
LH AUGER AUTO
RH AUGER MAN
RH AUGER AUTO
LH TOPCON
PRP LH TOPCON
RH TOPCON
RH TOPCON
BRN LH PILE HEIGHT OUT
PIN COLOR FUNCTION
GRN
SHIELD CAN SHIELD
WAIT TO START
ENGINE ENABLE
