4-6 LeeBoy 6150 Conveyor Paver
Operation
Soft Keys (Buttons)
The following table shows icons appearing on the
bottom banner that correspond to the soft key button,
depending upon the screen mode. (Some sources may
not be present on your model.)

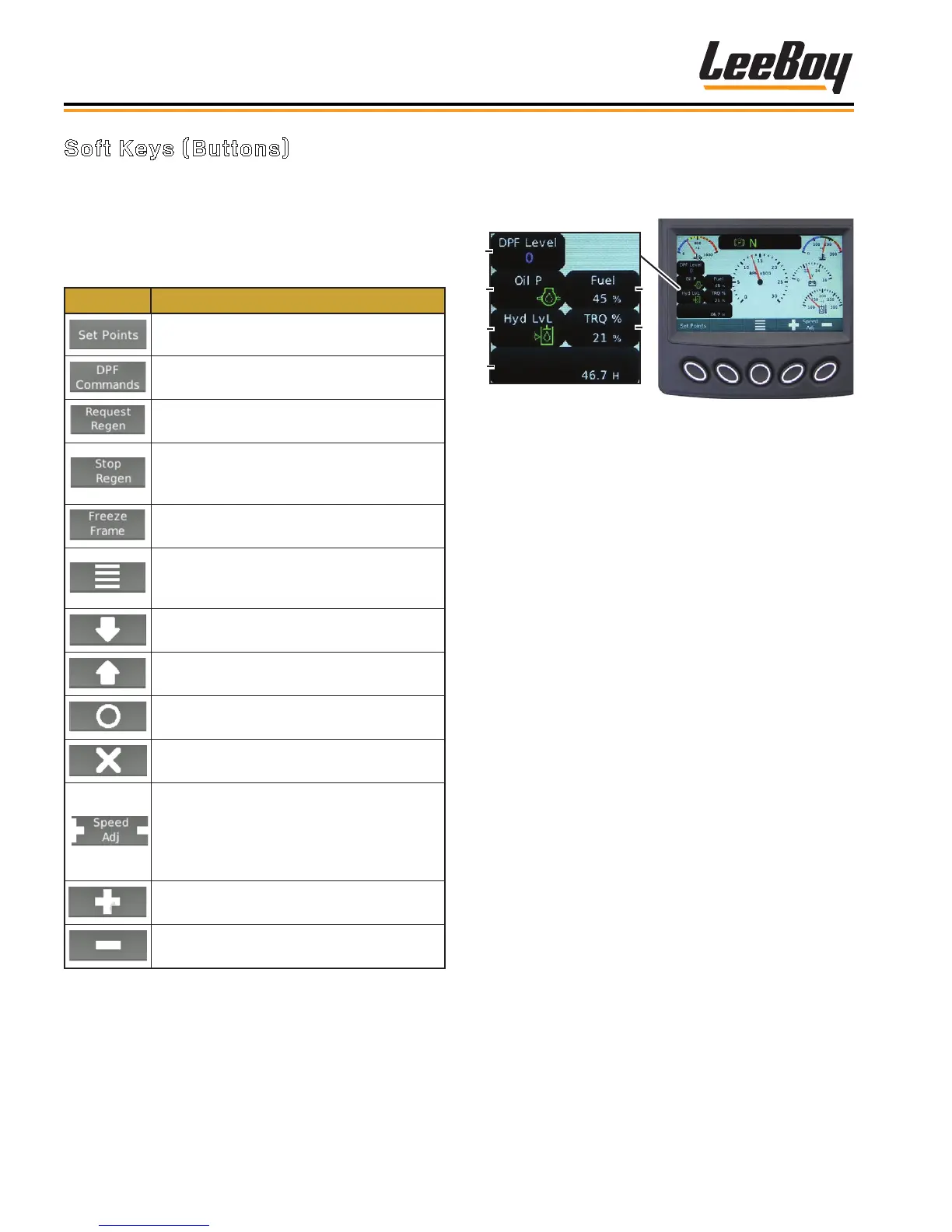

Table 4-2. Soft Key Choices
Icon Description
Displays the default speed (RPMs) set
points.
Displays the DPF commands to access
Uninhibit Regen and Inhibit Regen.
Sends message to the ECU to start DPF
regeneration.
Sends message to the ECU to stop DPF
regeneration. (DO NOT use unless
necessary.)
Requests freeze frame data from the
ECU when faults are present.
Navigates to the Main Menu screen
where you can scroll to choose action
items (such as settings and diagnostics).
Use to scroll down through a list of items.
Use to up scroll through a list of items.
Select: Enters the action item selected.
Deselect: Closes pop-up messages.
Speed Adjustment: Adjusts throttle
speed in increments. Use the (+) button
to increase speed or the (-) button to de-
crease speed. See Page 4-6 for default
speed settings.
Increases the engine speed (RPMs).
Decreases the engine speed (RPMs).
The gauge screen also displays engine, torque percent-
age, hydraulic, total hours of operation, and fuel infor-
mation in the lower left quadrant of the screen. (Figure
4-4)
Figure 4-4. Status Quadrant
1 - DEF Tank Level (Nonfunctional)
2 - Oil Pressure
3 - Hydraulic Oil Level
4 - Engine Total Hours of Operation
5 - Fuel Level
6 - Actual Engine Torque Percentage
Warning lights will illuminate and fault codes will also
display:
• The hydraulic oil level or engine oil light is normally
illuminated green, but will illuminate red if the
hydraulic or engine oil level is too low and display a
warning icon on the screen.
• A warning icon will also display if the hydraulic or
engine oil temperature is too high.
• Other warning status icons may also illuminate.
(Page 4-18)
NOTE: The DEF Tank Level icon always displays “0”
as this is not applicable nor equipped on this
machine.
NOTE: The generator is set at the factory to default
at 1800 RPMs. It is recommended that
you use the 1800 RPM preset for optimum
performance.
