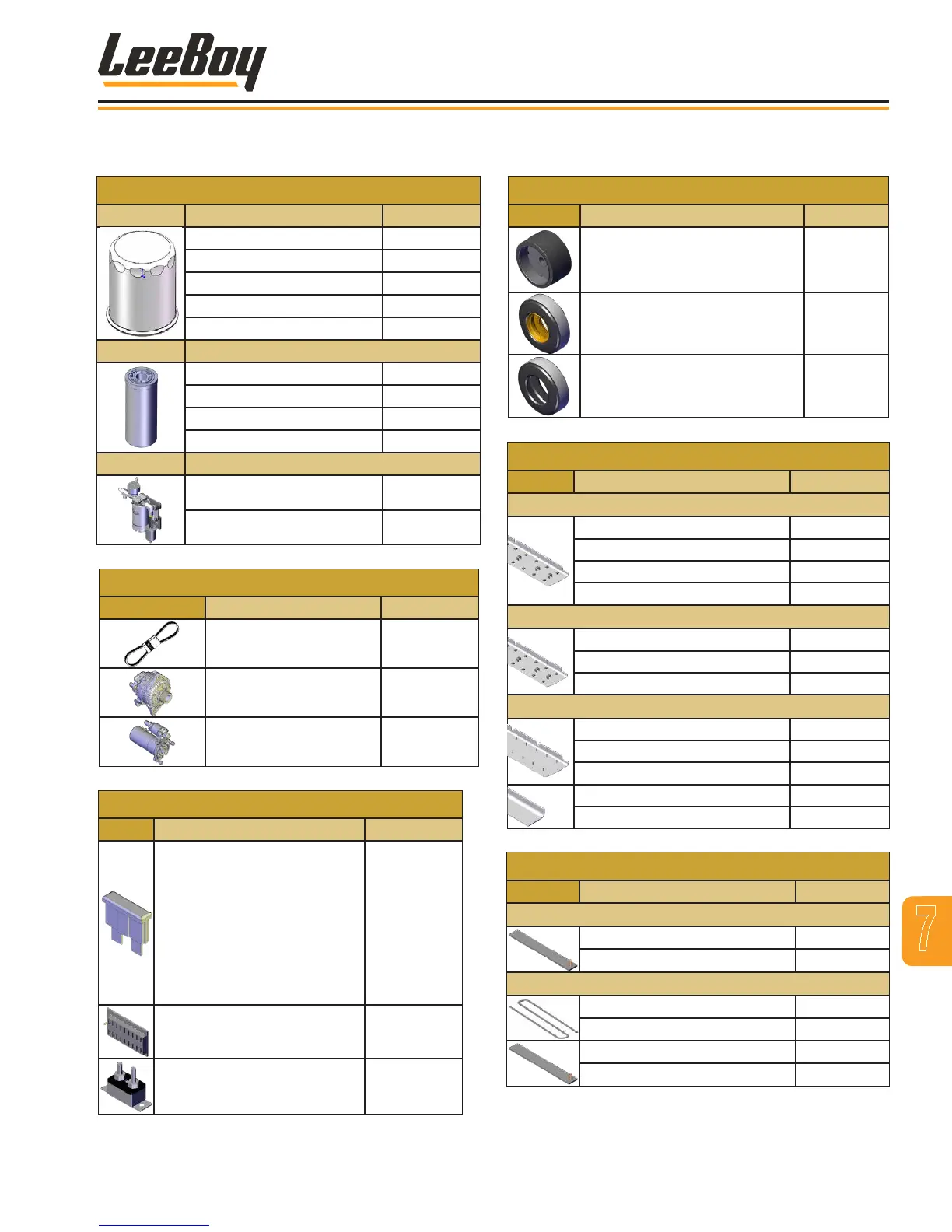

LeeBoy 6150 - Quick Reference

QUICK REFERENCE
FILTERS/STRAINERS
Engine Description Part #
Oil Filter 986537-03
Water Separator 1009253-19
Fuel Filter 1009253-18
Air Cleaner, Primary 1009253-17
Air Cleaner, Secondary 1009253-16
Hydraulic
Suction Strainer, 1-7/8-12 SAE 1016316
High Pressure Filter 984594
Charge Filter 290030
Charge/Return Filter Head 1017402
Spray Down
Pump and Strainer Kit 1015438
Filter 986537-31
ENGINE COMPONENTS
Description Part #
Engine Belt 1009253-20
Alternator 1009253-21
Starter 1001166-03
ELECTRICAL COMPONENTS
Description Part #
FUSE KIT:
• 5A ATC (1)
• 10A ATC (10)
• 15A ATC (2)
• 20A ATC (4)
• 25A ATC (1)
• 5A ATM (5)
• 20A ATM (1)
• 30A ATM (2)
36746
36340
36341
36342
37303
1017776-05
1017776-20
1017776-30
Fuse Block, ATC 685060
Breaker, 10A 986546
TRACK ASSEMBLIES
Description Part #
Bogie Wheel Assembly 1017109
Rear Wheel Assembly 1016041
Replacement Tire 20325940
WEAR PLATES
Description Part #
Electric Screed
Main Screed Wear Plate 987216SRV
Ext. 1-Adj Heat Box Assy (LH/RH) 987872SRV
Ext. 4-Adj Heat Box Assy (LH/RH) 988319SRV
Ext. Wear Plate (LH/RH) 854456
LP Screed
Main Screed Wear Plate 981724SRV
Extension Heat Box Assy (LH/RH) 851182SRV
Ext. Wear Plate (LH/RH) 854456
HD Screed
HD Main Screed, 3/8” w/ Studs 1016475
HD Ext. Heat Box Assy (LH/RH) 1006380SRV
HD Ext. Wear Plate (LH/RH) 1006382
Berm Ext. Main Heat Box Assy (LH) 1017683
Berm Ext. Main Heat Box Assy (RH) 1017682
HEATING ELEMENTS
Description Part #
Electric Screed
Legend Main Heating Element (2) 987886SRV
Legend Ext Heating Element (2) 987890SRV
HD Screed
HD Main Heating Element (2) 1015016
HD Ext Heating Element (2) 987890SRV
Berm Main Ext. HE (2) 1015936
Berm Ext. Heating Element (2) 1015918
Specications and designs may change without prior notice. These
illustrations do not necessarily show the standard versions.
7
Illustrated Parts List
LeeBoy 6150 Conveyor Paver 7-5
