LeeBoy 6150 - Hydraulic Schematic - Generator;Slope;Power Crown Circuit (4 of 4)

HYDRAULIC SCHEMATIC - GENERATOR/SLOPE/POWER CROWN CIRCUIT (4 OF 4)
Schematic for Part # 1016292

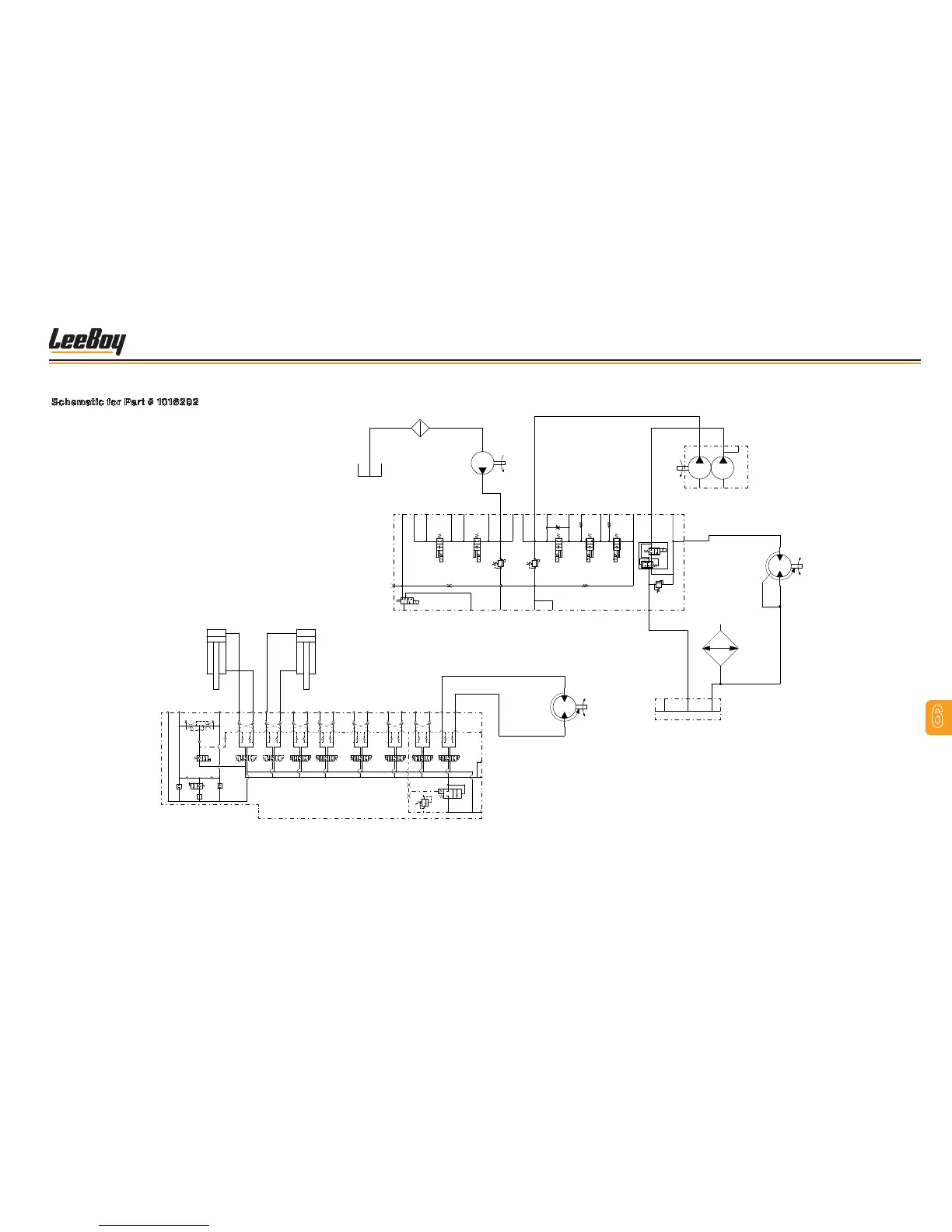

Figure 6-27. Hydraulic Schematic - Generator/Slope/Power Crown Circuit (4 of 4)
2700
PSI
0.040
2700
PSI
3000 psi
4 GPM
COOLER
-P2#1
1015907
AUGER/CONVEYOR/STEERING
32cc FRONT
36cc REAR
RI FI
FO RO
ST
OUT
IN
22.5cc
AUX PUMP
1016128
-P4#1
IN
OUT
1016316
-F7#1
100 MESH, 25 GPM
SUCTION STRAINER
-M11#1
1015933
RETURN MANIFOLD
IN
OUT
-C23#1
AUX COOLER
852260
48k BTU @ 40 GPM
1
2
D
-M17#1
1014873-02
GENERATOR MTR
10.4cc
GEN
GP3
P3
RAT
RA
LAT
LA
VT
V P2
GP2 GP1
P1
RC
RCT
LC
LCT C TTB
2SPA
T3
T2
T GT
T4
-V3#1
LOWER MANIFOLD
1015402A
GENERATOR OPTION
REA S1 LCB
S2
LSA RSBLSB RSA LCA
LEB
LEA CLA RCACLB RCB
T
GP
P
LS
REB SWA SWB
A
B
-M18#1
986640
POWER CROWN
9.53 in³ (155.7cc)
EXT
RET
983421
-C24#1
LH SLOPE
EXT
RET
983421
-C25#1
RH SLOPE
-M15#1
1015527
UPPER MANIFOLD
ORIFICE
ORIFICE
ORIFICE
SLOPE / POWER CROWN OPTION
ST
