Lenze 8200 vector series Mounting Instructions

Mechanical installation
Standard devices with a power of 55 kW
Mounting with fixing brackets (standard)
4

130
EDK82EV903 DE/EN/FR 5.1
Dimensions [mm]
8200 vector a b b1 c c1 d d1 e
1)
g k m
E82EV553K4B2xx 340 672 591 28.5 283 615 38 285 11 28 18
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.

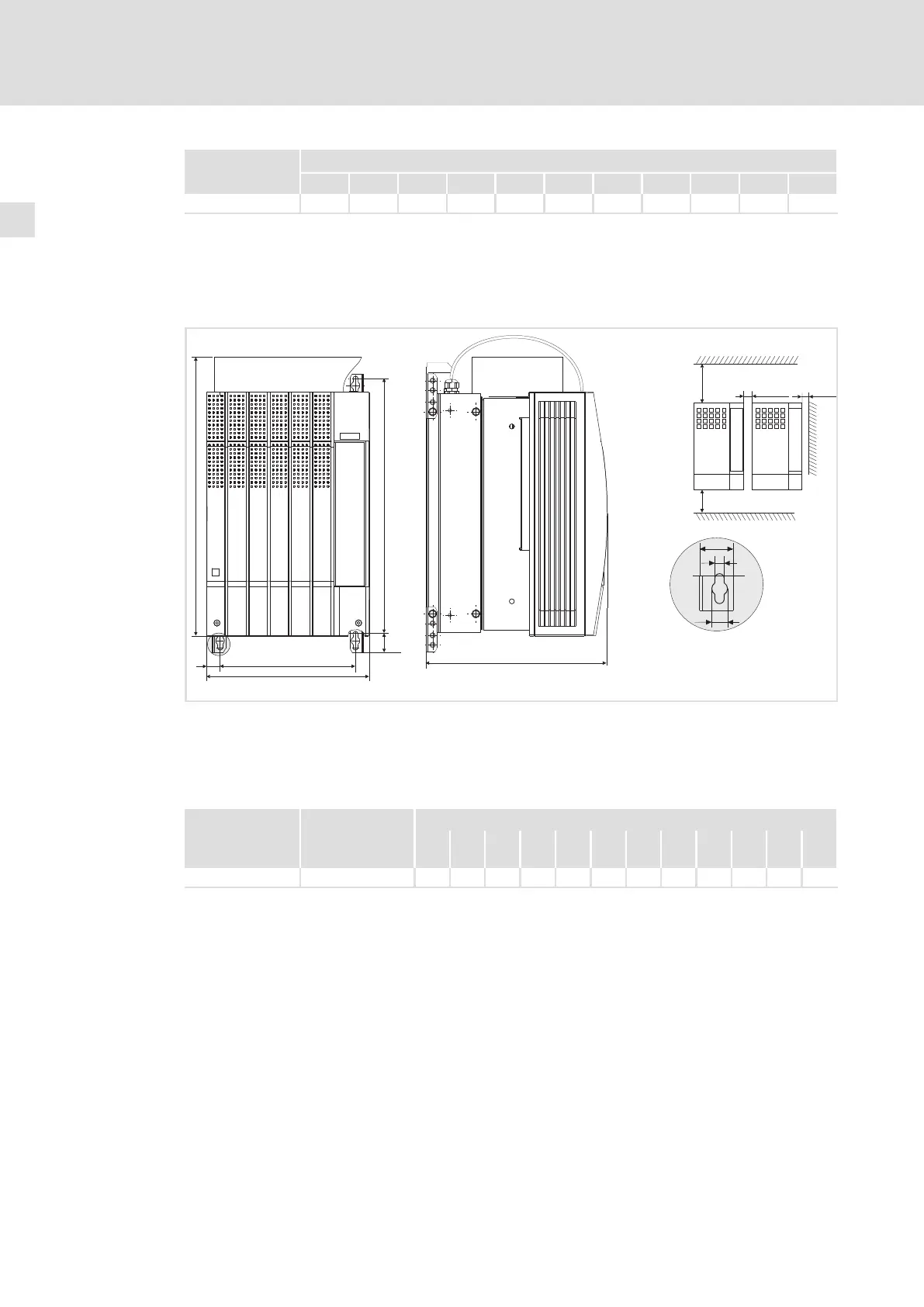

Controller variant "3xx" (with fully mounted footprint filter)
For this mounting variant you require controller type E82EVxxxK4B3xx.
a
c1
b
d
d1
l
c
³ 50 mm
³ 50
m
g
m
k
0
³ 100 mm
³ 100mm
e
8200vec298

Loosen both screws to be able to remove the housing cover. The assembly kit is located under
the housing cover.

Installation of mounting angles

Dimensions

Arrange the controllers side by side with spacing to be able to disassemble the eyebolts.
Dimensions [mm]
8200 vector integr. mains
filter
2)
a b b1 c c1 d d1 d2 e
1)
g k m
E82EV553K4B3xx E82ZN55334B230 340 729 591 283 28.5 672 38 615 375 11 28 18
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.
2)
The integrated mains filters are only designed for controller operation at rated power. Different filters with different
dimensions are possible (
 140).

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
