6.1.2 Mounting and dismounting communication modules
Mounting
 Note!
The communication module can also be unplugged or plugged in during
operation.

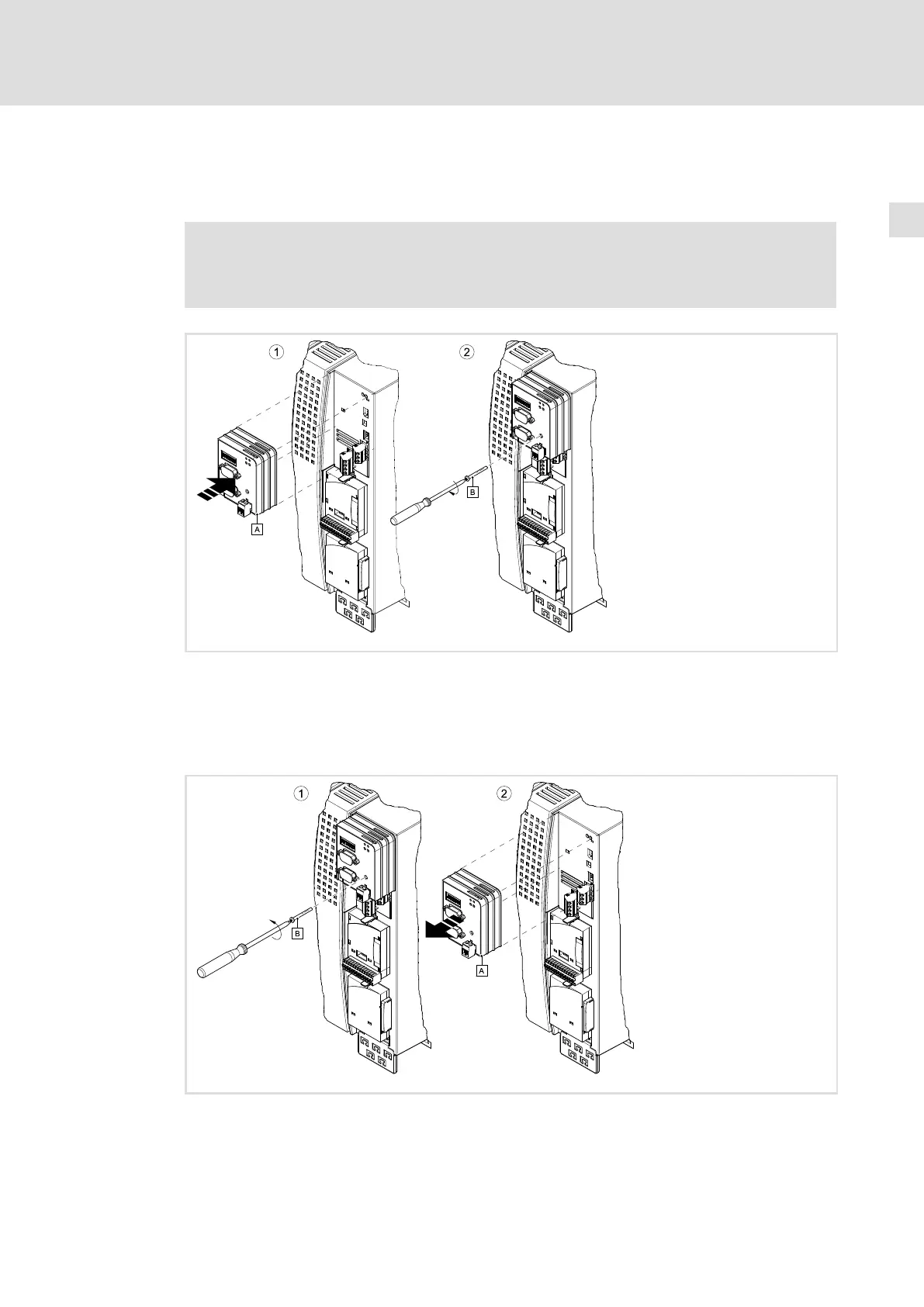

8200vec626
1. Plug the communication module  onto the AIF interface.
2. If the communication module is provided with a safety screw , screw the module
together with the controller.
Dismounting
8200vec627
1. If the communication module  is secured with a screw , loosen it.
2. Unplug the communication module  from the AIF interface.

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
