Mechanische Installation
Grundgeräte mit der Leistung 55 kW
Montage thermisch separiert (Durchstoßtechnik)
4
37
EDK82EV903 DE/EN/FR 5.1

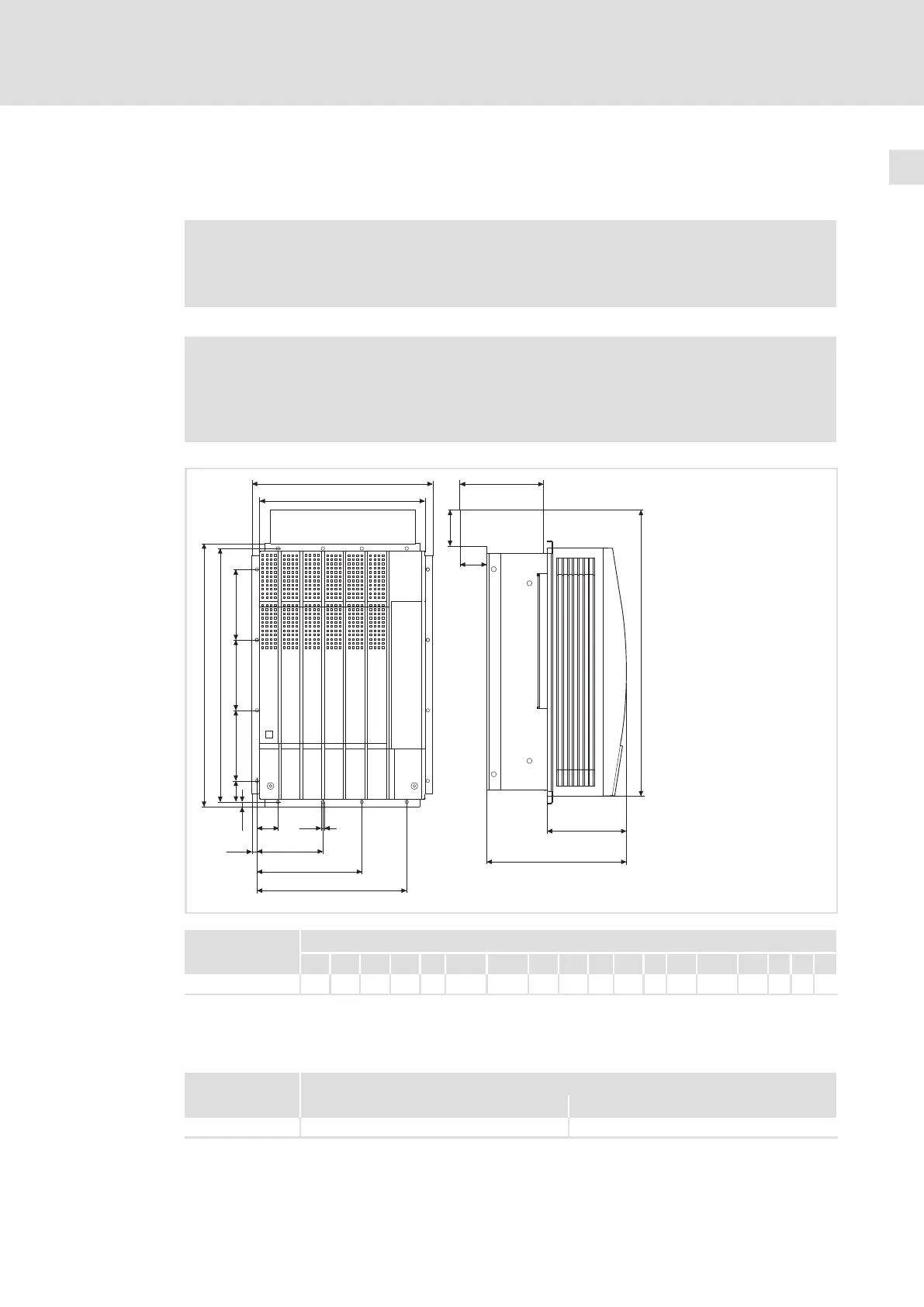

4.4.2 Montage thermisch separiert (Durchstoßtechnik)
Für diese Montagevariante benötigen Sie den Antriebsregler Typ E82DV...
Hinweis!
Lesen Sie vor der Montage des Antriebsreglers die Dokumentation zu
netzseitig vorgeschalteten Komponenten (Netzdrossel, Filter).
Hinweis!
Bei thermisch separierter Montage muss die Lüfterbaugruppe um 180°
gedreht werden, damit der Antriebsregler in den Montageausschnitt passt.
( 38)
d2
d2
d2
d
b
g
e2
a
d1
h
h
e3
c2
c3
c4
e
e1
L
a1
d3
b1
c1
9300vec174
Maße [mm]
8200 vector a a1 b b1 c1 c2 c3 c4 d d1 d2 d3 e
1)
e1 e2 e3 g h
E82DV553K4B 373 340 543 591 45 137.5 217.5 310 525 45 145 81 285 163.5 185 66 7 9
1)
Bei aufgestecktem Funktionsmodul: Montagefreiraum und Kabelbiegeradius beachten. Die Klemmen von
Funktionsmodulen in der Ausführung PT ragen um 8 mm über das Gehäuse hinaus.
Ausschnitt im Schaltschrank
Maße [mm]
8200 vector Breite Höhe
E82DV553K4B 320 492
