Mechanical installation
Standard devices with a power of 55 kW
Mounting with fixing brackets (standard)
4

129
EDK82EV903 DE/EN/FR 5.1

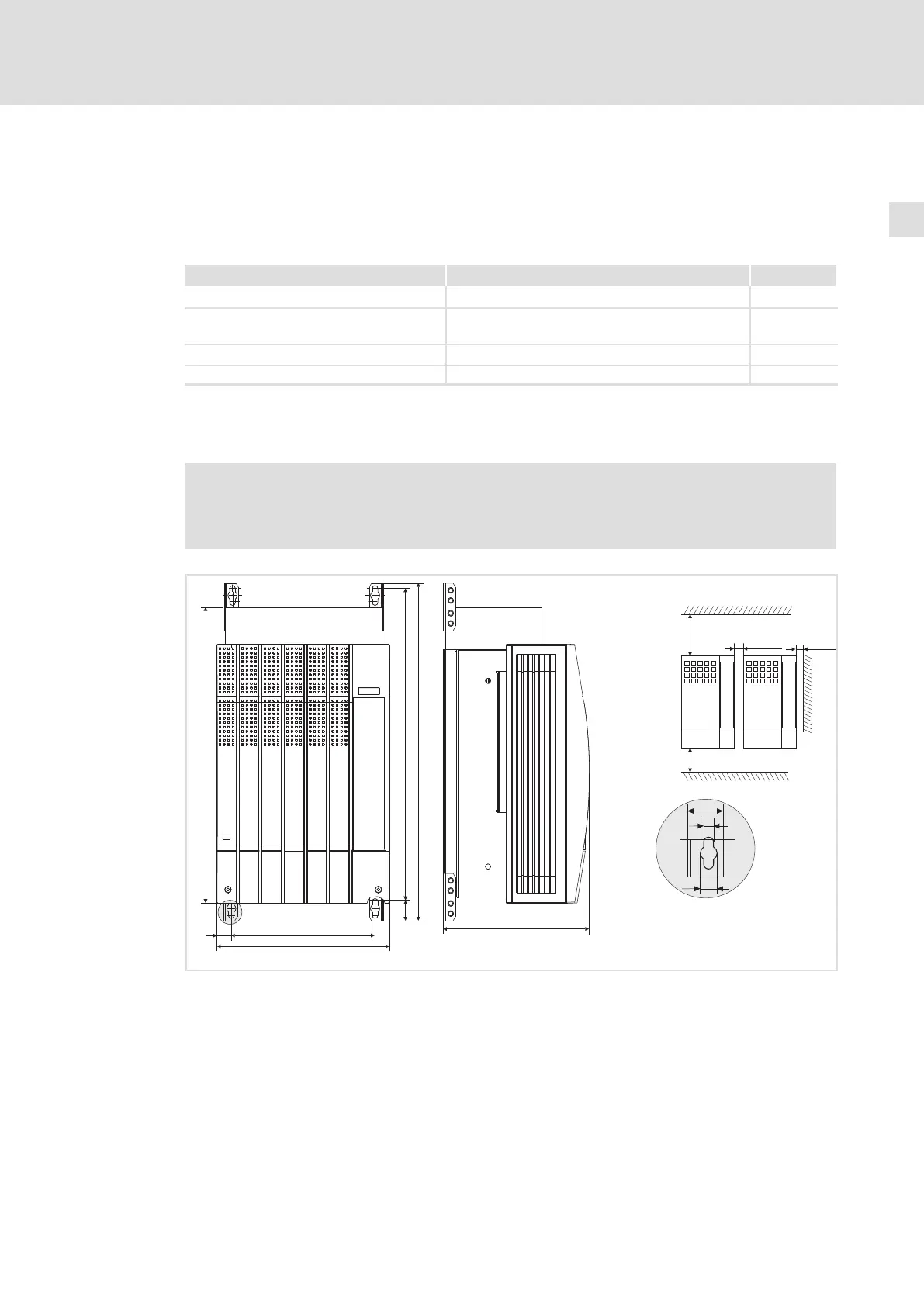

4.4 Standard devices with a power of 55 kW
4.4.1 Mounting with fixing brackets (standard)
Mounting material required from the scope of supply:
Description Use Quantity
Fixing bracket Drive controller fixing 4
Hexagon head cap screw M8 × 16 mm
(DIN 933)
Mounting of fixing bracket to the drive controller 4
Washer Æ 8.4 mm (DIN 125) For hexagon head cap screw 4
Spring washer Æ 8 mm (DIN 127) For hexagon head cap screw 4
Controller variant "2xx" (without fully assembled footprint filter)
For this mounting variant you require controller type E82EVxxxK4B2xx.
 Note!
Before assembling the controller, please read the documentation for the
components connected on the supply side (mains choke, filter).
a
c1
e
b1
d
d1
b
l
c
³ 50 mm
³ 50
m
g
m
k
0
³ 100 mm
³ 100mm
9300vec175

Loosen both screws to be able to remove the housing cover. The assembly kit is located under
the housing cover.

Installation of mounting angles

Dimensions

Arrange the controllers side by side with spacing to be able to disassemble the eyebolts.
