Mechanical installation
Standard devices with a power of 45 kW
Thermally separated mounting (push−through technique)
4

128
EDK82EV903 DE/EN/FR 5.1
4.3.2 Thermally separated mounting (push−through technique)
For this mounting variant you require the controller type E82DV...
 Note!
Before assembling the controller, please read the documentation for the
components connected on the supply side (mains choke, filter).
d2
d2
d2
d b
g
a1
a
d1
b1
h
h
c1
c2
c3
c4
e
e1

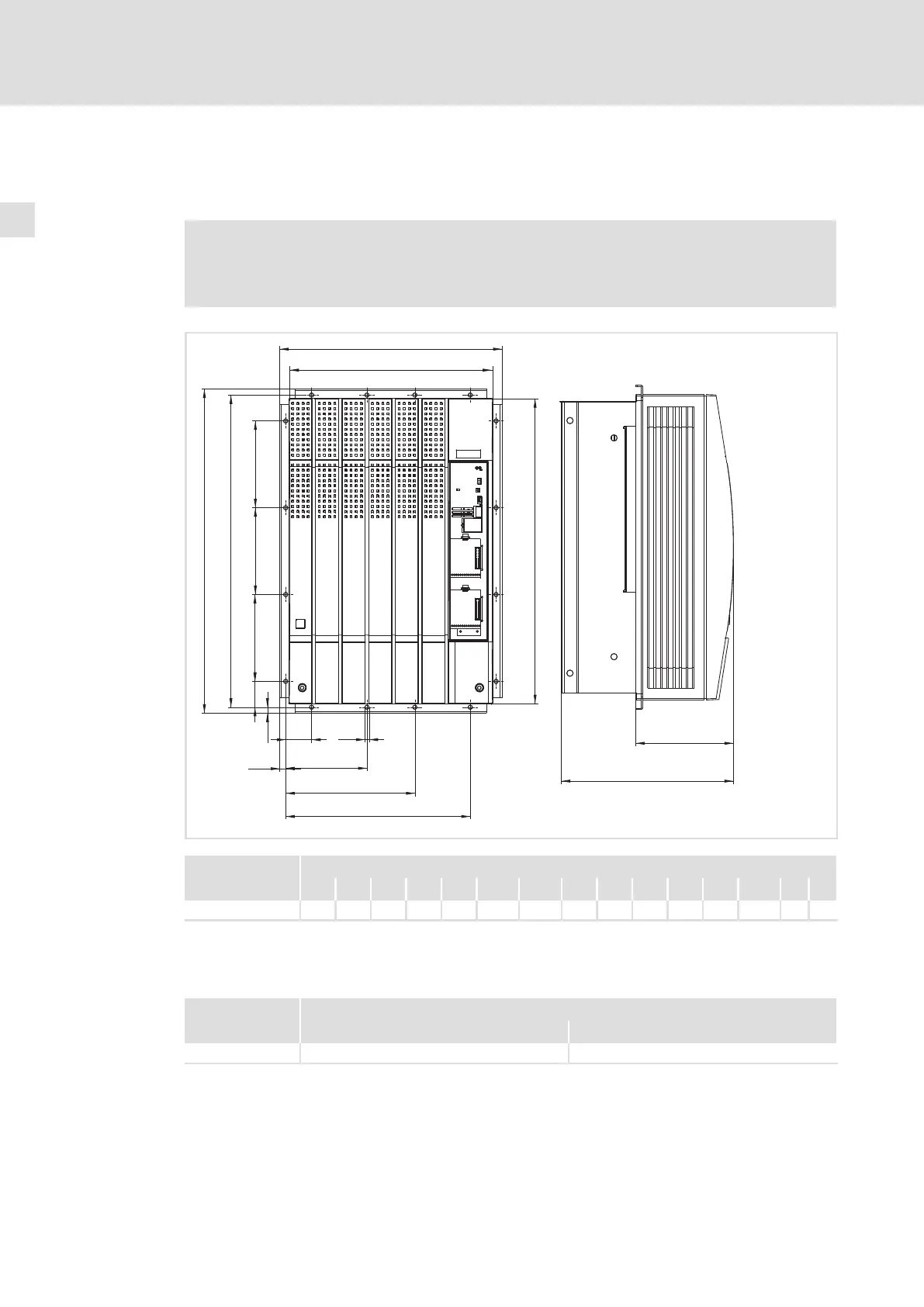

8200vec302
Dimensions [mm]
8200 vector a a1 b b1 c1 c2 c3 c4 d d1 d2 e
1)
E1 g h
E82DV453K4B 373 340 543 510 45 137.5 217.5 310 525 45 145 285 163.5 7 9
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.
Cutout in the control cabinet
Dimensions [mm]
8200 vector Width Height
E82DV453K4B 320 492

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
