Mechanical installation
Standard devices with a power of 45 kW
Mounting with fixing brackets (standard)
4

127
EDK82EV903 DE/EN/FR 5.1
Controller variant "3xx" (with fully mounted footprint filter)
For this mounting variant you require controller type E82EVxxxK4B3xx.
2
3
1
³ 150 mm
a
l
b1
³ 100 mm
k
c
c1
m
g
d1
d2
d
b
e
a
M 8
g
f
e
L
M 8
max. 15 mm
0
³ 50 mm
³ 50 mm
18 Nm
159.3 lb-in
8200vec298

Loosen both screws to be able to remove the housing cover. The assembly kit is located under
the housing cover.


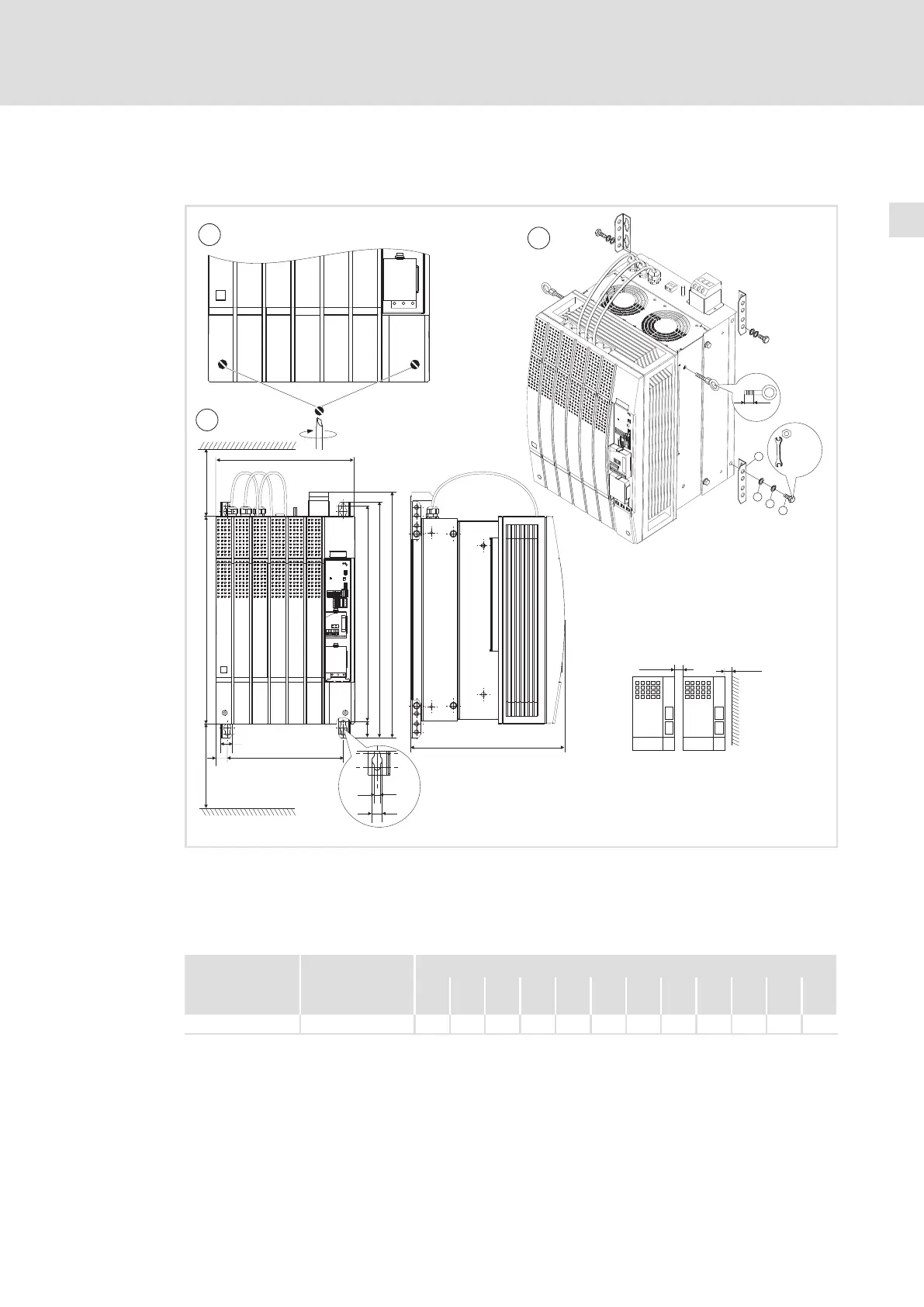

Installation of mounting angles

Dimensions

Arrange the controllers side by side with spacing to be able to disassemble the eyebolts.
Dimensions [mm]
8200 vector integr. mains
filter
2)
a b b1 c c1 d d1 d2 e
1)
g k m
E82EV453K4B3xx E82ZN45334B230 340 619 510 283 28.5 580 38 532 375 11 28 18
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.
2)
The integrated mains filters are only designed for controller operation at rated power. Different filters with different
dimensions are possible (
 140).
