Lenze 8200 vector series Mounting Instructions

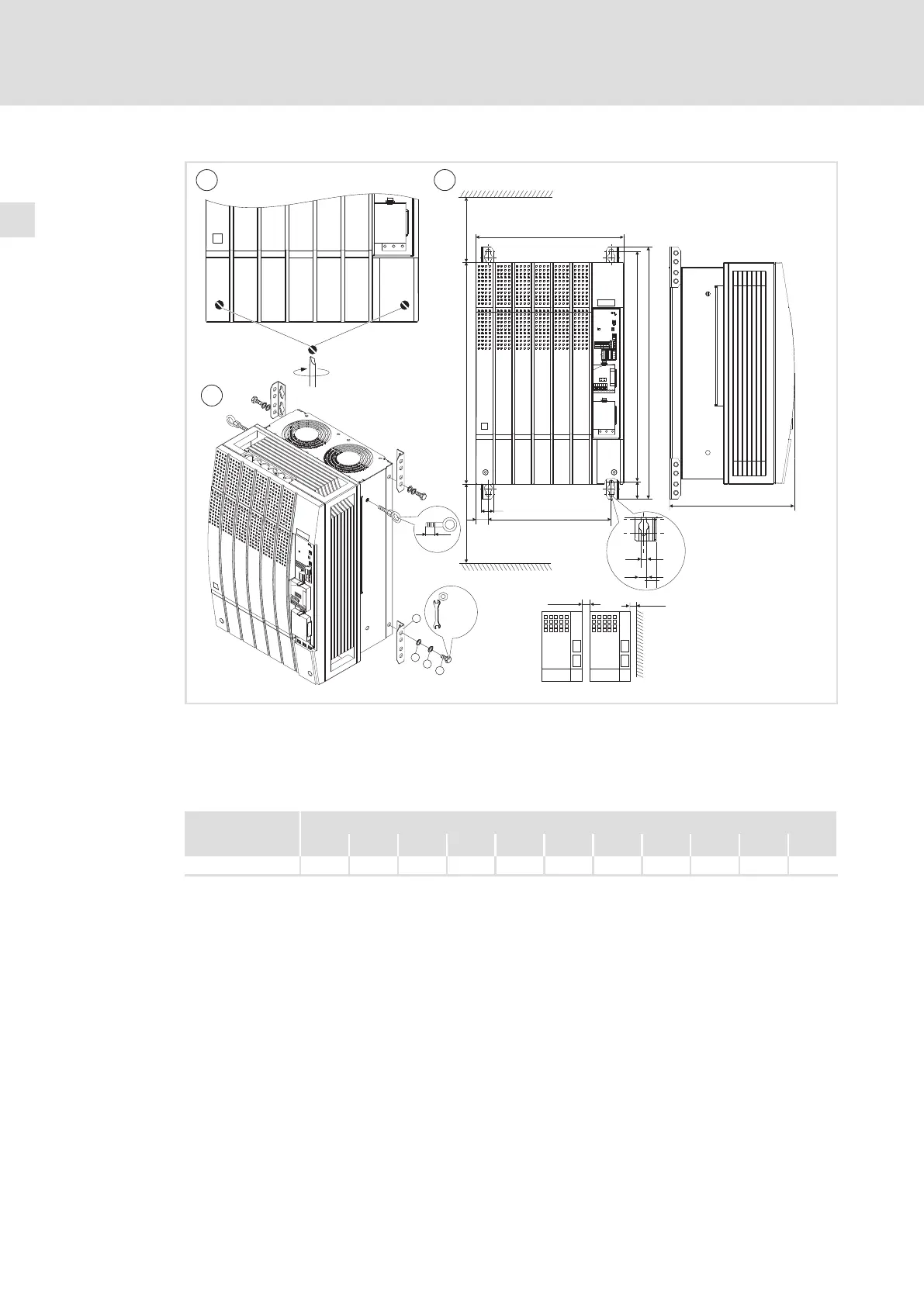

Mechanical installation
Standard devices with a power of 45 kW
Mounting with fixing brackets (standard)
4

126
EDK82EV903 DE/EN/FR 5.1
2
3
1
³ 100 mm
a
c
e
k
b1
d2
d1
d
³ 100 mm
l
L
m
g
a
M 8
M 8
max. 15 mm
g
f
e
c1
18 Nm
159.3 lb-in
0
³ 50 mm
³ 50 mm
8200vec296

Loosen both screws to be able to remove the housing cover. The assembly kit is located under
the housing cover.

Installation of mounting angles

Dimensions

Arrange the controllers side by side with spacing to be able to disassemble the eyebolts.
Dimensions [mm]
8200 vector a b1 c c1 d d1 d2 e
1)
g k m
E82EV453K4B2xx 340 510 283 28.5 580 38 532 285 11 28 18
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
