Mechanical installation
Standard devices in the power range 15 ... 30 kW
Thermally separated mounting (push−through technique)
4
122
EDK82EV903 DE/EN/FR 5.1

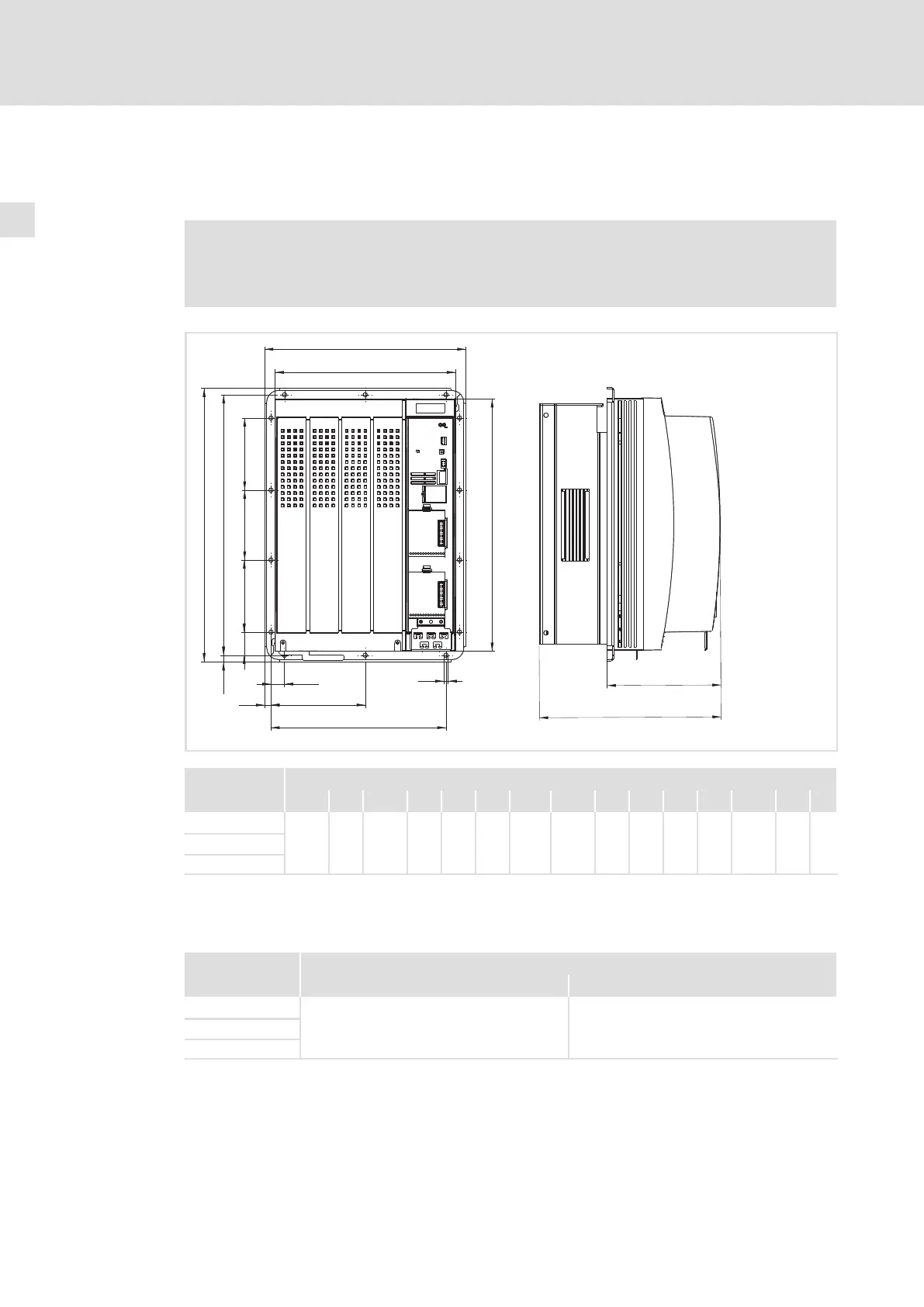

4.2.2 Thermally separated mounting (push−through technique)
For this mounting variant you require the controller type E82DV...
Note!
Before assembling the controller, please read the documentation for the
components connected on the supply side (mains choke, filter).
h
c1
c2
c3
h
d1
d2
d3
d2
d
b
a1
a
g
b1
e1
e
8200vec304
Dimensions [mm]
8200 vector a a1 b b1 c1 c2 c3 d d1 d2 d3 e
1)
e1
1)
g h
E82DV153K4B
279.5
250 379.5 350 19 131 243 361.5 32 100 97 250 159.5 6 9
E82DV223K4B
E82DV303K4B
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.
Cutout in the control cabinet
Dimensions [mm]
8200 vector Width Height
E82DV153K4B
236
336
E82DV223K4B
E82DV303K4B
