Mechanical installation
Standard devices in the power range 15 ... 30 kW
Mounting with fixing brackets (standard)
4
121
EDK82EV903 DE/EN/FR 5.1

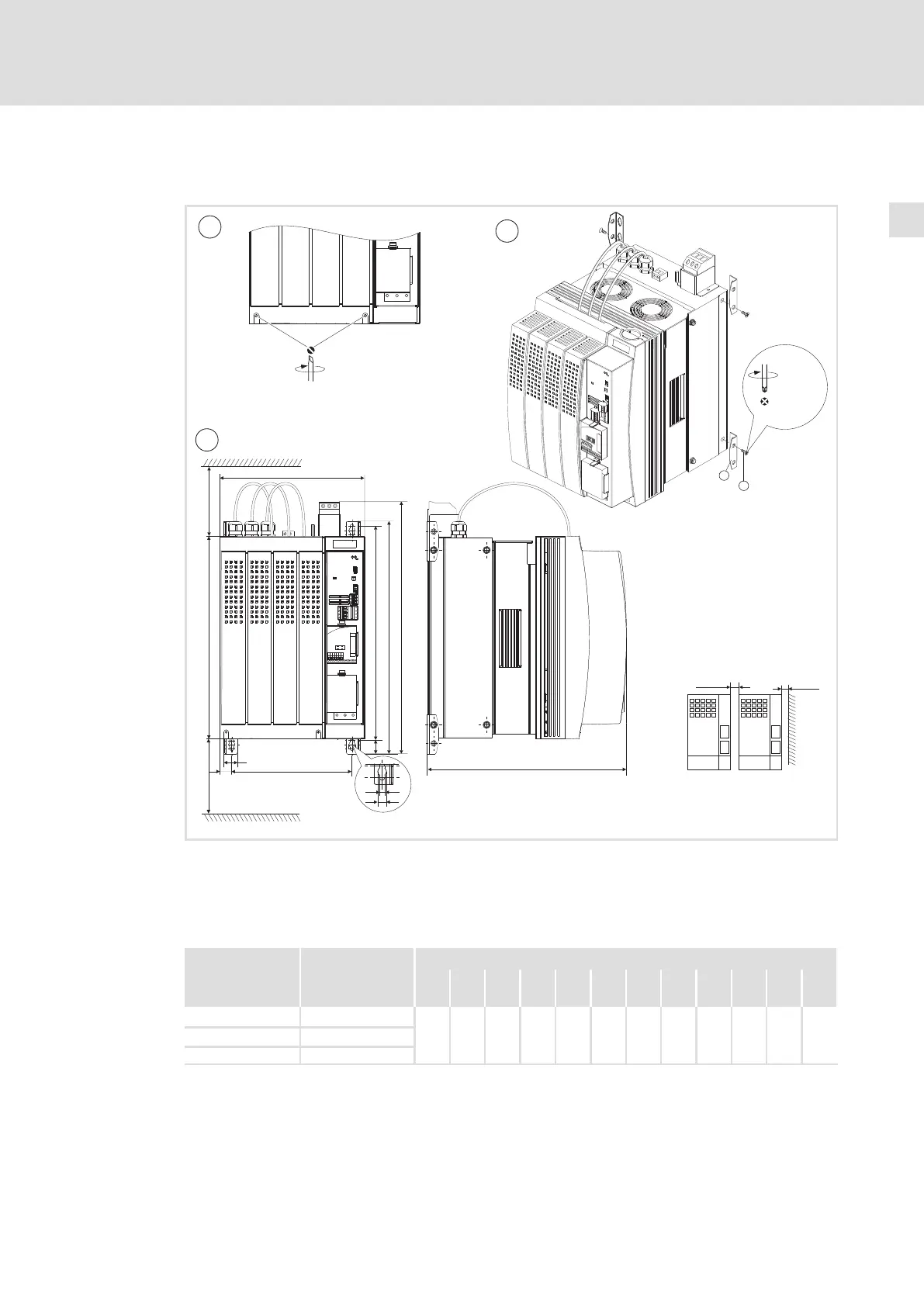

Controller variant "3xx" (with fully mounted footprint filter)
For this mounting variant you require controller type E82EVxxxK4B3xx.
2
3
1
m
g
³ 150 mm
c
k
c1
b1
³ 100 mm
d1
d2
d
a
l
e
b
a
3 Nm
26.5 lb-in
h
l
0
³ 50 mm
³ 50 mm
8200vec293
Loosen both screws to be able to remove the housing cover. The assembly kit is located under
the housing cover.
Installation of mounting angles
Dimensions
Arrange the controllers side by side with spacing to be able to disassemble the eyebolts.
Dimensions [mm]
8200 vector integr. mains
filter
2)
a b b1 c c1 d d1 d2 e
1)
g k m
E82EV153K4B3xx E82ZN22334B230
250 456 350 206 22 402 24 370 340 6.5 24 11
E82EV223K4B3xx E82ZN22334B230
E82EV303K4B3xx E82ZN30334B230
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.
2)
The integrated mains filters are only designed for controller operation at rated power. Different filters with different
dimensions are possible (
140).
