Lenze 8200 vector series Mounting Instructions

Mechanical installation
Standard devices with a power of 55 kW
Thermally separated mounting (push−through technique)
4

131
EDK82EV903 DE/EN/FR 5.1

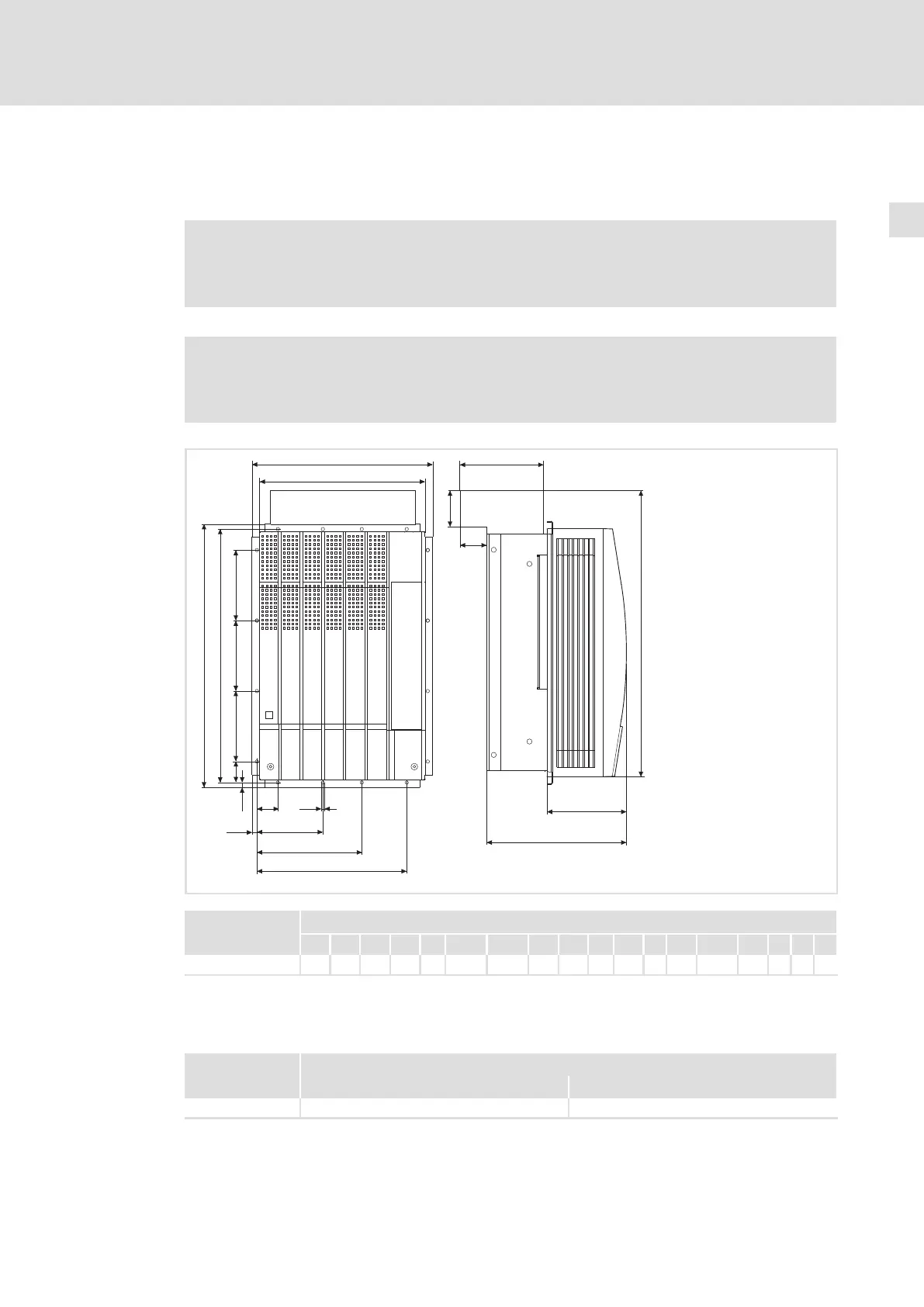

4.4.2 Thermally separated mounting (push−through technique)
For this mounting variant you require the controller type E82DV...
 Note!
Before assembling the controller, please read the documentation for the
components connected on the supply side (mains choke, filter).
 Note!
For thermally separated mounting the fan module has to be rotated by 180° so
that the controller fits into the mounting cutout. ( 132)
d2
d2
d2
d
b
g
e2
a
d1
h
h
e3
c2
c3
c4
e
e1
L
a1
d3
b1
c1
9300vec174
Dimensions [mm]
8200 vector a a1 b b1 c1 c2 c3 c4 d d1 d2 d3 e
1)
E1 e2 e3 g h
E82DV553K4B 373 340 543 591 45 137.5 217.5 310 525 45 145 81 285 163.5 185 66 7 9
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.
Cutout in the control cabinet
Dimensions [mm]
8200 vector Width Height
E82DV553K4B 320 492
