Lenze 8200 vector series Mounting Instructions

Mechanical installation
Standard devices in the power range 15 ... 30 kW

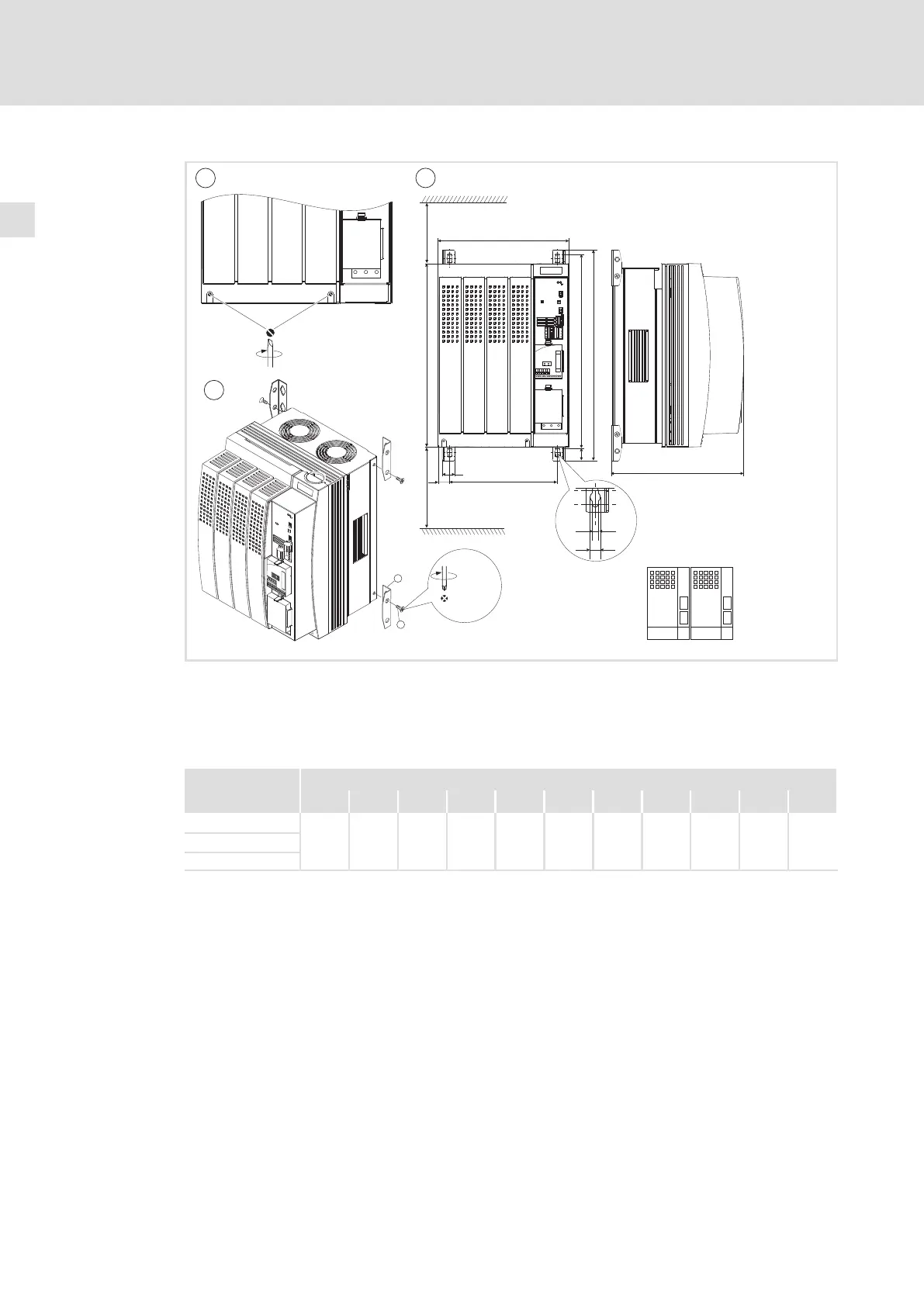

Mounting with fixing brackets (standard)
4

120
EDK82EV903 DE/EN/FR 5.1
2
3
1
m
g
³ 100 mm
a
c
c1
e
k
b1
d2
d1
d
³ 100 mm
l
l
a
3 Nm
26.5 lb-in
h
0
8200vec291

Loosen both screws to be able to remove the housing cover. The assembly kit is located under
the housing cover.

Installation of mounting angles

Dimensions

Drive controllers can be arranged side by side without spacing.
Dimensions [mm]
8200 vector a b1 c c1 d d1 d2 e
1)
g k m
E82EV153K4B2xx
250
350 206 22 402 24 370 250 6.5 24 11
E82EV223K4B2xx
E82EV303K4B2xx
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
