Lenze 8200 vector series Mounting Instructions

Extensions for automation
Modules
Mounting and dismounting function modules
6

164
EDK82EV903 DE/EN/FR 5.1
Dismounting

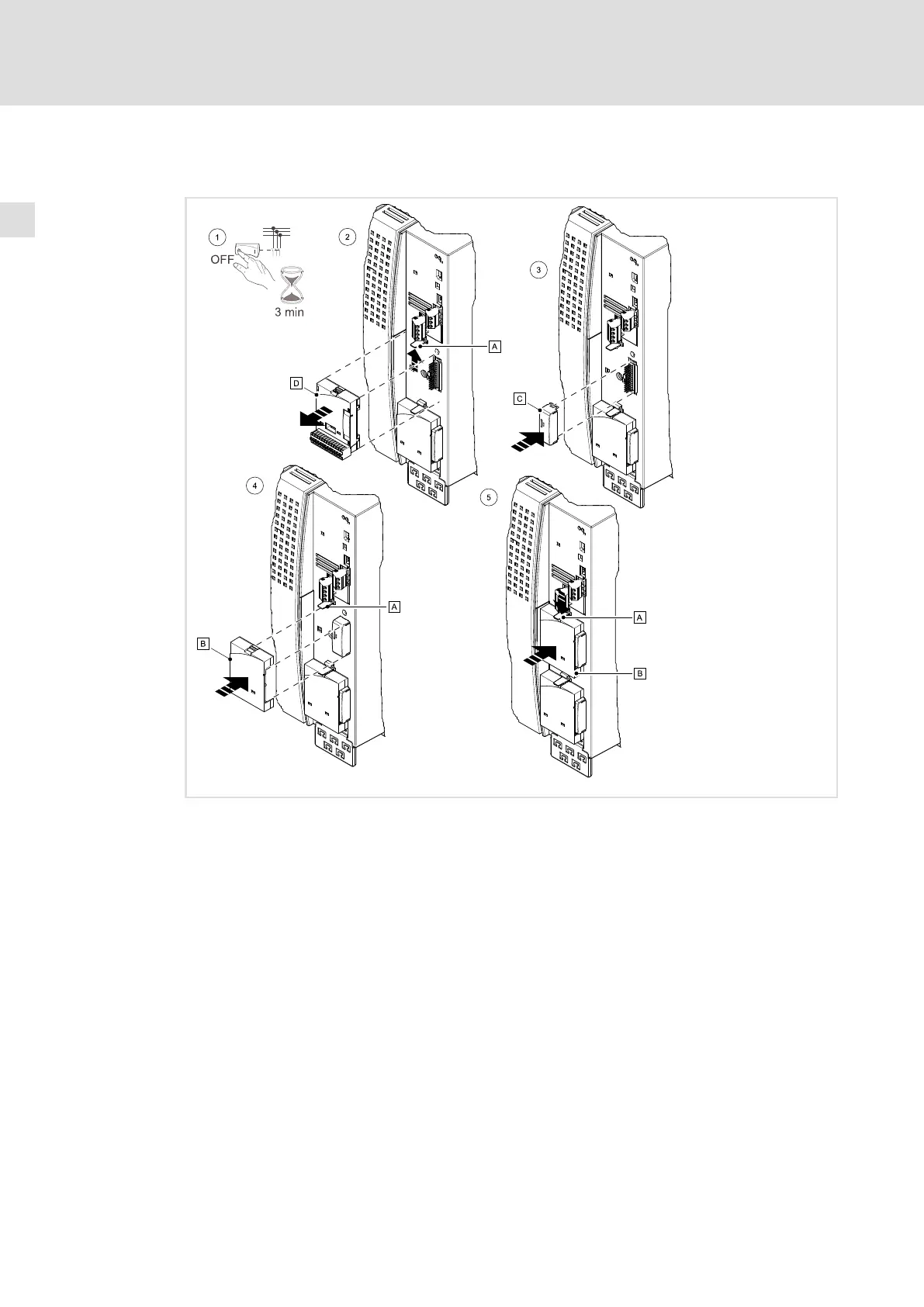

8200vec622
The following worksteps apply to the interfaces FIF I (at the top) and FIF II (at the bottom).
1. Disconnect the drive controller from mains and wait at least 3 minutes!
2. Carefully press the clip  upwards and remove the function module .
3. Plug the FIF cover  to the terminals of the interface.
– Make sure that the pins of the FIF interface are plugged correctly in the sockets of
the FIF cover and are not bent.
– Without the FIF cover, the controller is inhibited.
4. Plug on the blanking cover .
5. Push the blanking cover  until the clip  locks into place.
– If no function module is plugged on, the controller without FIF cover  and
blanking cover  must not be commissioned (dangerous electrical voltage at the
FIF interface).
