Lenze 8200 vector series Mounting Instructions

Mechanical installation
Standard devices with a power of 55 kW
Modification of the fan module for push−through technique
4

133
EDK82EV903 DE/EN/FR 5.1

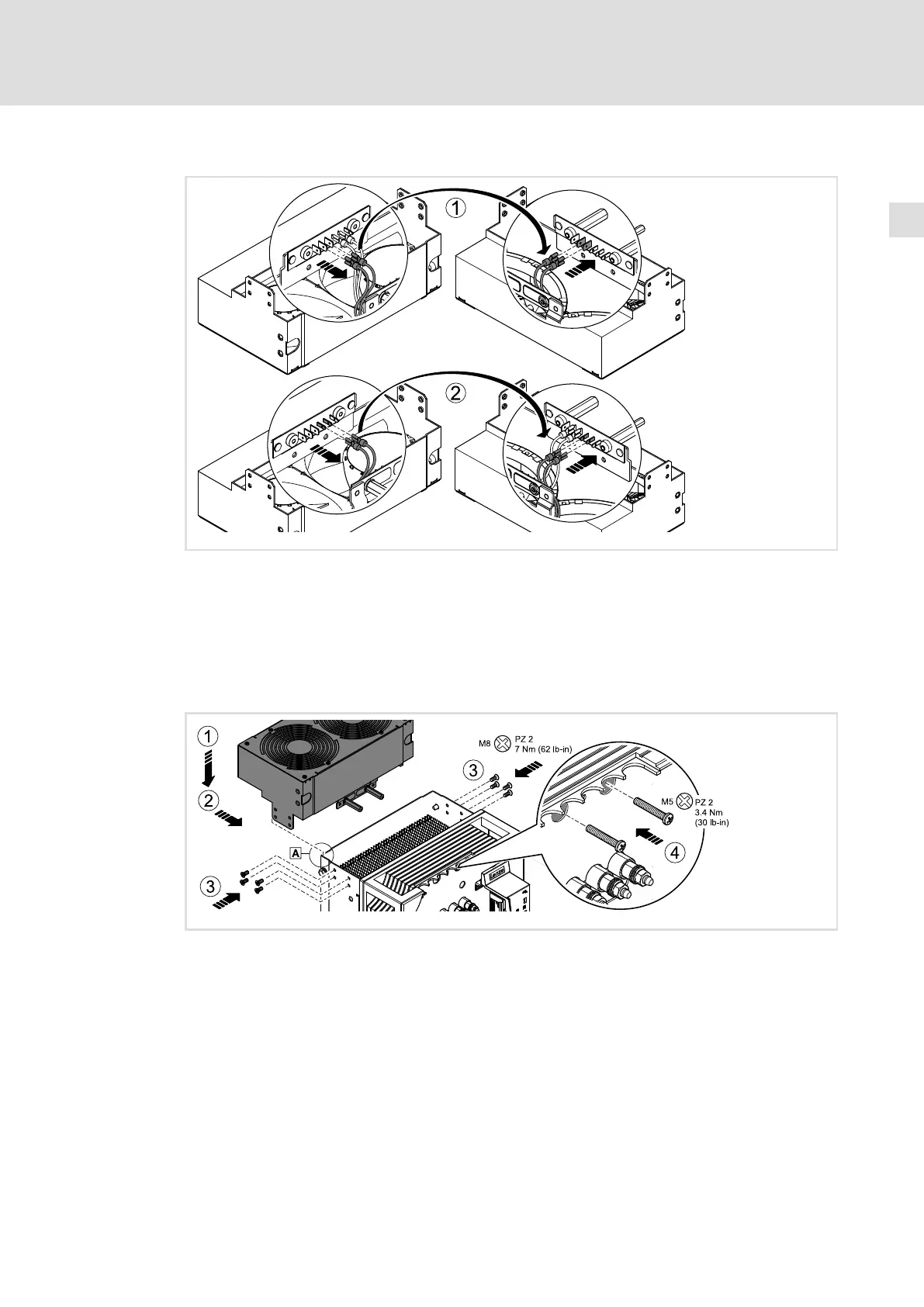

Plugging the fan connecting cable to another terminal on the fan module
9300vec173
Fig. 4−3 Plugging the fan connecting cable for the voltage supply to another terminal
1. Remove the cable lugs of the two red connecting cables and plug them in again on
the diagonally arranged side.
2. Remove the cable lugs of the two blue connecting cables and plug them in again on
the diagonally arranged side.
Mounting the fan module in a manner rotated by 180°
9300vec172
Fig. 4−4 Mounting the fan module on the controller
1. Place the fan module onto the controller. Insert the lugs at the back into the base
plate .
Make sure that the threaded sleeves do not touch the housing edge. They may break
off.
2. Push the fan module to the front.
3. Screw−in and fasten the 4 screws for fixing the fan module on each side.
4. Screw−in and fasten the two screws for the supply voltage.

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
