handling ingress packets based on Ethernet type, VLAN ID, TCP/UDP port, DSCP, ToS, or
VLAN priority tag.
Once a QCE is mapped to a port, traffic matching the first entry in the QoS Control List is
assigned to the QoS class, drop precedence level, and DSCP value defined by that entry.
Traffic not matching any of the QCEs are classified to the default QoS Class for the port.
PATH
Configuration \ QoS \ QoS Control List

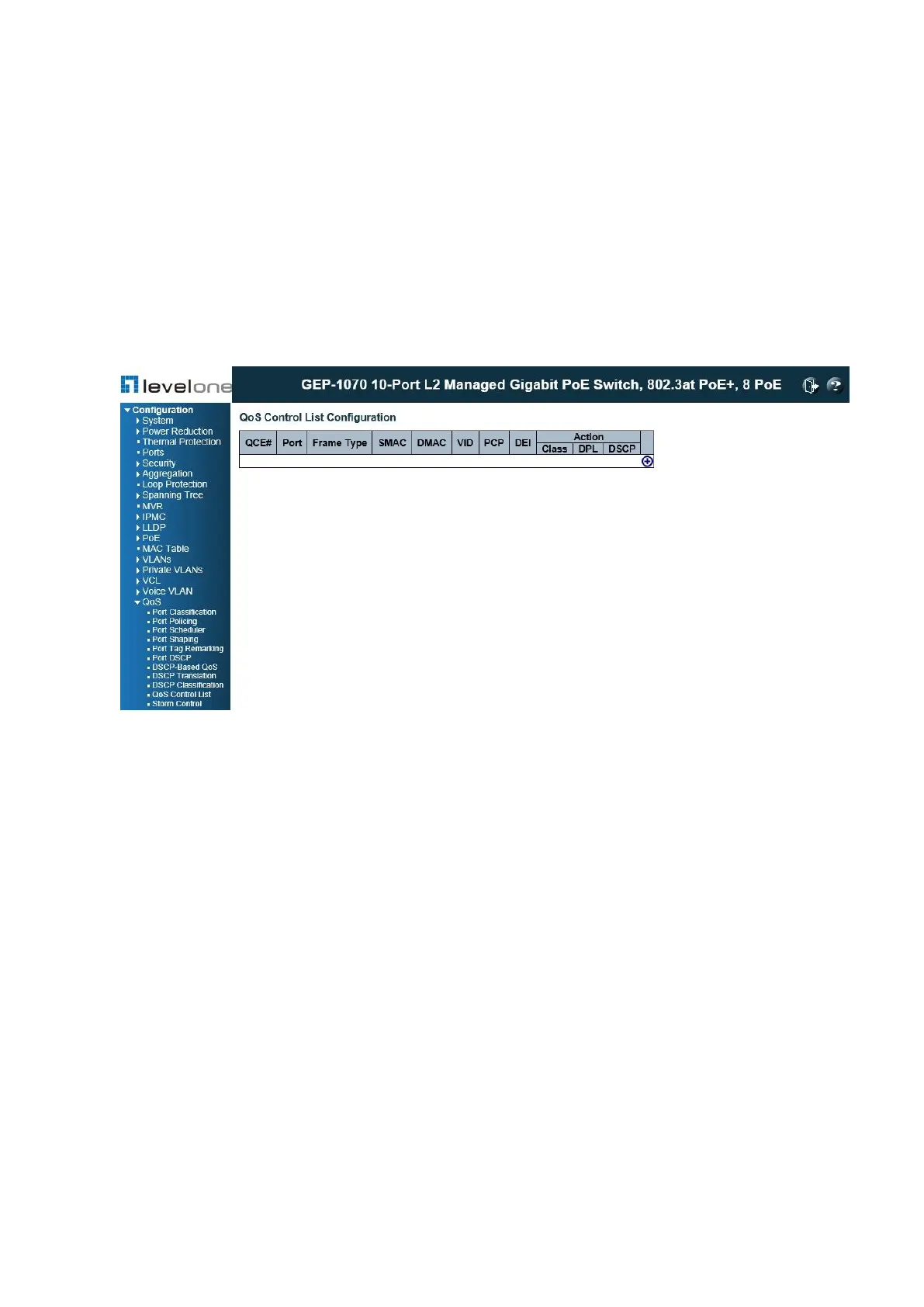

Figure 86: QoS Control List Configuration
PARAMETERS
These parameters are displayed:
QoS Control List
◆ QCE – Quality Control Entry index.
◆ Port - Port identifier.
◆ Frame Type – Indicates the type of frame to look for in incoming
◆ SMAC – The OUI field of the source MAC address, i.e. the first three octets (bytes) of the
MAC address.
◆ DMAC – The type of destination MAC address. Possible values are: Any, Broadcast,
Multicast, Unicast.
◆ VID – VLAN identifier. (Range: 1-4095)
◆ Action – Indicates the classification action taken on ingress frame if the configured
parameters are matched in the frame's content. If a frame matches the QCE, the following
actions will be taken:
■ Class (Classified QoS Class) – If a frame matches the QCE, it will be put in the queue
corresponding to the specified QoS class.
