2-15.2.2 Group to VLAN
This section allows you to map a already configured Group Name to a VLAN for the selected
stack switch unit switch .
Web Interface
To Display Group Name to VLAN mapping table configured in the web interface:
1. Click Group Name VLAN configuration and add new entry.
2. Specify the Group Name and VLAN ID.
3. Click Apply.

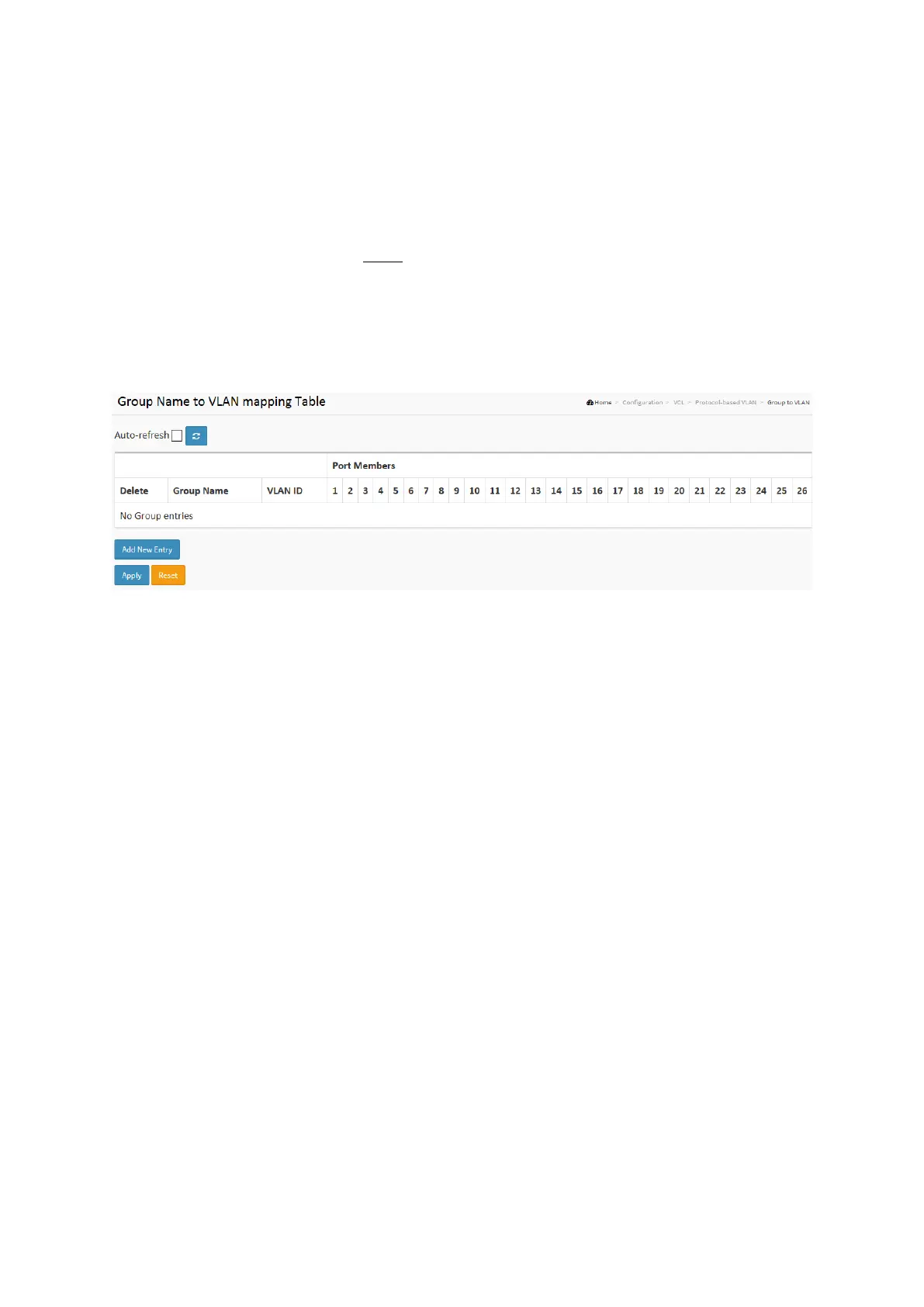

Figure 2-15.2.2: The Group Name of VLAN Mapping Table
Parameter description:
 Delete :
To delete a Group Name to VLAN map entry, check this box. The entry will be deleted on the
switch during the next Save
 Group Name :
A valid Group Name is a string of atmost 16 characters which consists of a combination of
alphabets (a-z or A-Z) and integers(0-9), no special character is allowed. whichever Group
name you try map to a VLAN must be present in Protocol to Group mapping table and must
not be preused by any other existing mapping entry on this page.
 VLAN ID :
Indicates the ID to which Group Name will be mapped. A valid VLAN ID ranges from 1-4095.
 Port Members :
A row of check boxes for each port is displayed for each Group Name to VLAN ID mapping.
To include a port in a mapping, check the box. To remove or exclude the port from the
mapping, make sure the box is unchecked. By default, no ports are members, and all boxes
are unchecked.
 Adding a New Group to VLAN mapping entry :
Click to add a new entry in mapping table. An empty row is added to the table, the Group
Name, VLAN ID and port members can be configured as needed. Legal values for a VLAN ID
are 1 through 4095. The button can be used to undo the addition of new entry.
 Buttons:
Apply – Click to save changes.
Reset- Click to undo any changes made locally and revert to previously saved values.
