LevelOne GEP-2651 - 2-20.3 Port Name Service

Publication date: June, 2015
Revision A1
187
2-20.3 Port Name Service
This page displays current port name and role.
Web Interface
To configure Port Name Service in the web interface:
1. Click Configuration, Switch2go and and Port Name Servic
2. Specify the detail Port Name and set the Role.
3. Click Apply.

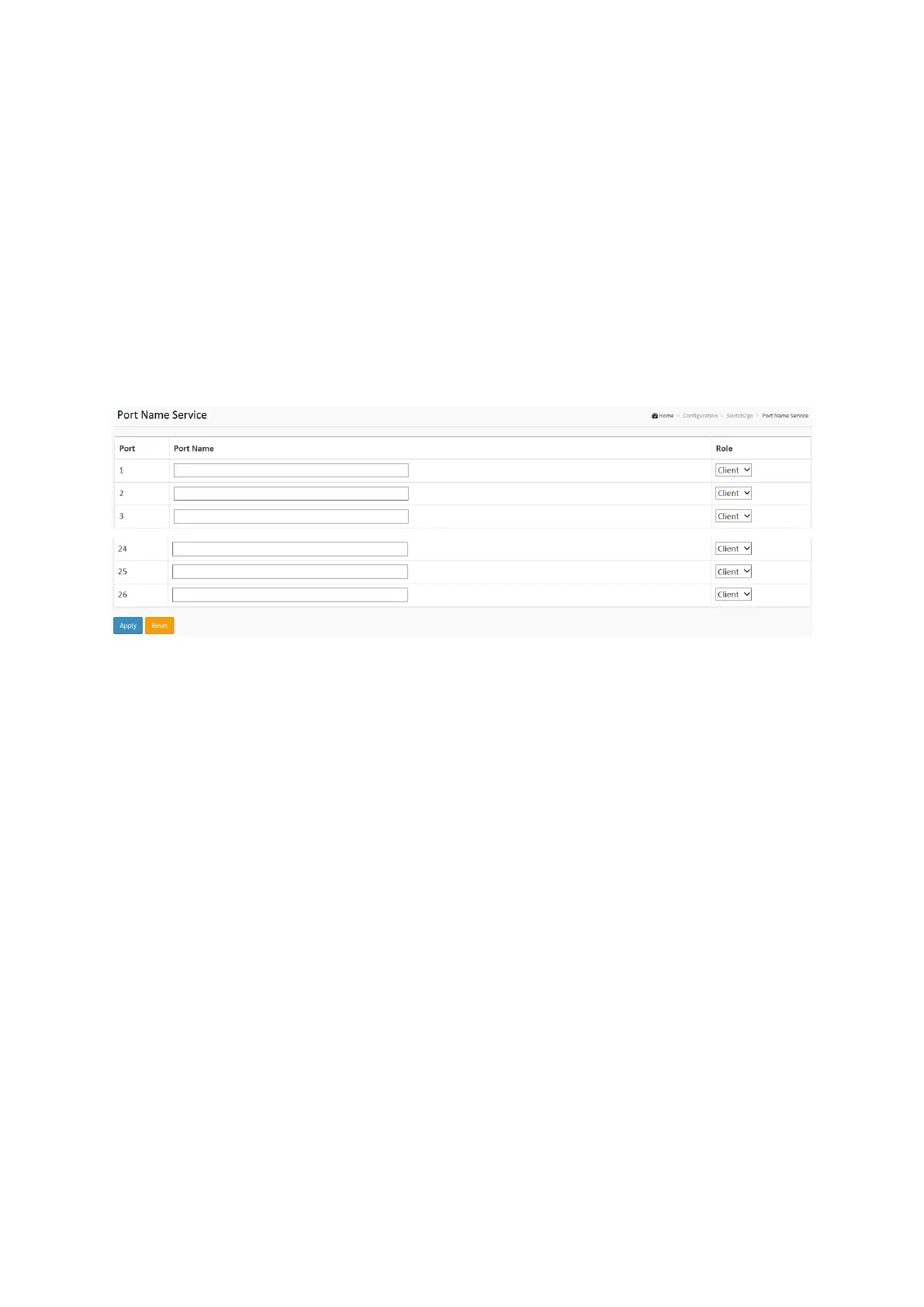

Figure 2-20.3: The User Link Management
Parameter description:
 Port :
This is the logical port number for this row.
 Port Name :
Enter up to 47 characters to be descriptive name for identifies this port.
 Role :
Selects any available role for the given switch port.
Possible role are:
Server - Assign this as Server Port.
Client - Assign this as Client Port.
