3-3.2 Qos Statistics
The section describes that switch could display the QoS detailed Queuing counters for a specific
switch port. for the different queues for all switch ports.
Web Interface
To Display the Queuing Counters in the web interface:
1. Click Monitor, Ports, then QoS Statistics
2. If you want to auto-refresh the information then you need to evoke the “Auto-refresh”.
3. Click “ Refresh“ to refresh the Queuing Counters or clear all information when you click
“ Clear”.

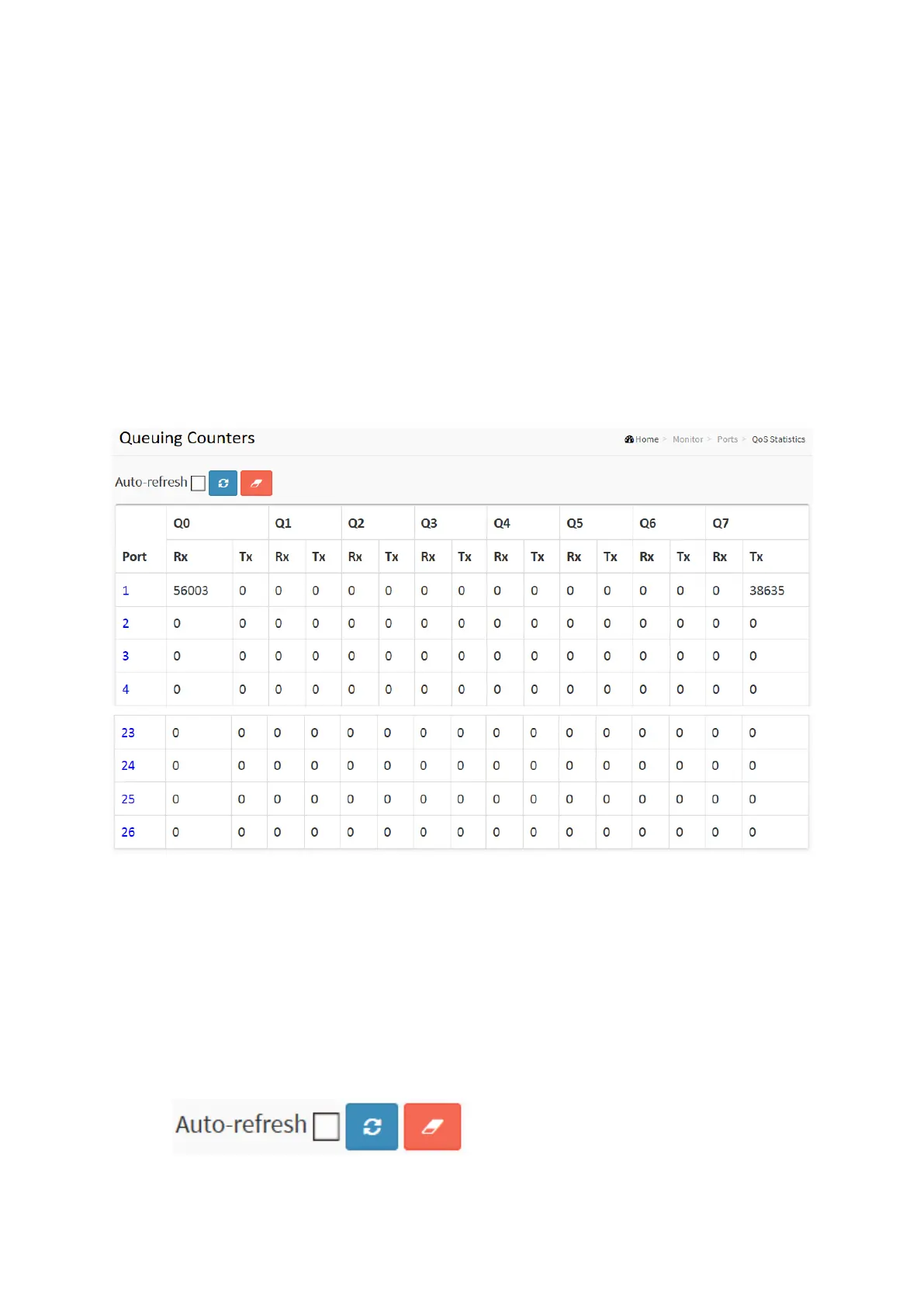

Figure 3-3.2: The Queuing Counters Overview
Parameter description:
Port :
The logical port for the settings contained in the same row.
Qn :
Qn is the Queue number, There are 8 QoS queues per port. Q0 is the lowest priority queue.
Rx/Tx :
The number of received and transmitted packets per queue.
Buttons
Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs
every 3 seconds.
