3-6 LACP
3-6.1 System Status
This section describes that when you complete to set LACP function on the switch then it
provides a status overview for all LACP instances
Web Interface
To display the LACP System status in the web interface:
1. Click Monitor, LACP, System Status
2. Checked “Auto-refresh”.
3. Click “ Refresh“ to refresh the port detailed statistics.

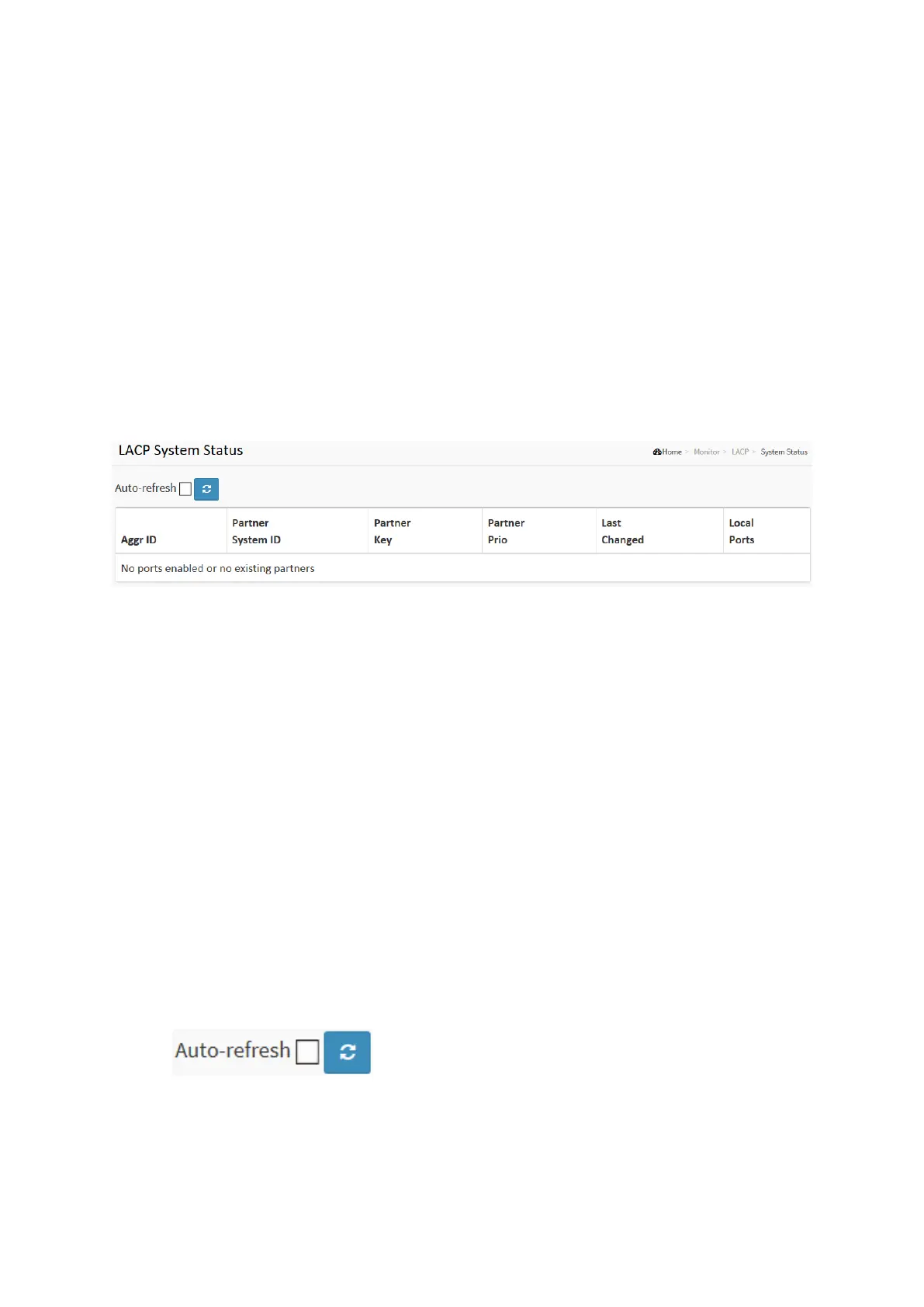

Figure 3-6.1 The LACP System Status
Parameter description:
 Aggr ID :
The Aggregation ID associated with this aggregation instance. For LLAG the id is shown as
'isid: aggr-id' and for GLAGs as 'aggr-id'
 Partner System ID :
The system ID (MAC address) of the aggregation partner.
 Partner Key :
The Key that the partner has assigned to this aggregation ID.
 Last changed :
The time since this aggregation changed.
 Local Ports :
Shows which ports are a part of this aggregation for this switch. The format is: "Switch
ID:Port".
 Buttons
Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs
every 3 seconds.
Refresh: Click to refresh the page.
